IEEE 802.11ax (2.4G/5G) + Bluetooth 5.3 M.2 2830 E key or LGA type Module Advantech AIW-164/AIW-165

Price and avalability

Partnumber Description Price VAT incl Avalability

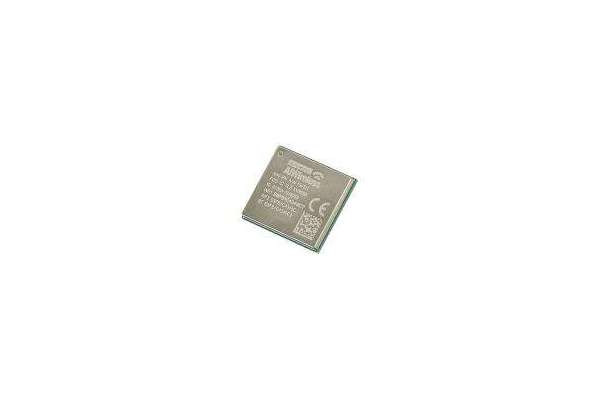

AIW-164SN 802.11ax+BT5.3 NXP 88W9098 LGA type  1 648,2

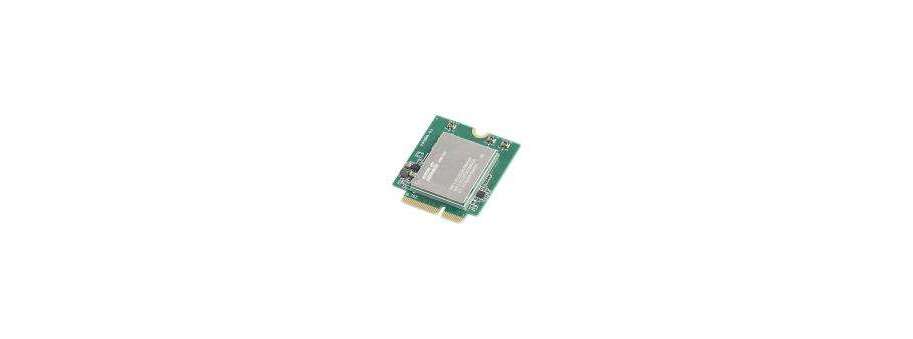

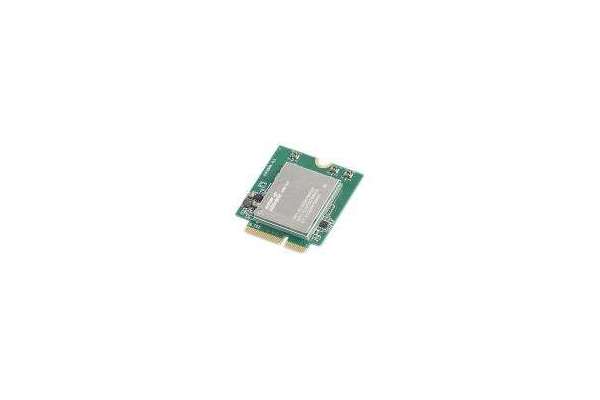

AIW-165BN 802.11ax+BT5.3, NXP 88W9098, PCIe-UART, M.2 2830  1 792,3

Advantech's AIW-164SN and AIW-165BN are industrial grade wireless modules that integrates Wi-Fi, Bluetooth, and low energy technology. They are excellent solution for applications in medical devices, handheld solutions, industrial environments, embedded boards, and transportation.

  • IEEE 802.11 ax/ac/a/b/g/n (2.4GHz/5GHz) + Bluetooth 5.3
  • 2Tx/2Rx
  • Wi-Fi: WPA/WPA2/WPA3
  • Operating temperature: -40 ~ 85 °C (-40 ~ 185 °F)
  • Supports Linux
  • Wi-Fi: Uplink and downlink OFDMA and MU-MIMO
  • BT: LTE/MWS coexistence

Additional information

AIW-164 AIW-165
Main Chipset NXP 88W9098 NXP 88W9098
Tx/Rx
  • 2T2R for WiFi, standalone antenna for BT
  • ANT1(Main): WiFi_A -> TX/RX
  • ANT2(Aux): WiFi_B -> TX/RX
  • ANT3(BT): BT
  • 2T2R for WiFi, standalone antenna for BT
  • ANT1(Main): WiFi_A -> TX/RX
  • ANT2(Aux): WiFi_B -> TX/RX
  • ANT3(BT): BT
IEEE WLAN Standard 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz) 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
Bluetooth® Bluetooth® 5.3 Bluetooth® 5.3
Form Factor LGA type M.2 2830, E Key card
Interface Wi-Fi: PCIe/SDIO; Bluetooth: UART Wi-Fi: PCIe; Bluetooth: UART
Operation Voltage 3.3V 3.3V
Security Wi-Fi: WPA/WPA2/WPA3 Wi-Fi: WPA/WPA2/WPA3
Supported OS Linux* Linux*
Operating Temperature -40 ~ 85 °C -40 ~ 85 °C
Dimensions (H x W x D) 20 mm X 18 mm x 2.8 mm 28 x 30 x 3.95 mm (1.10 x 1.18 x 0.15 in)
