Extended T range

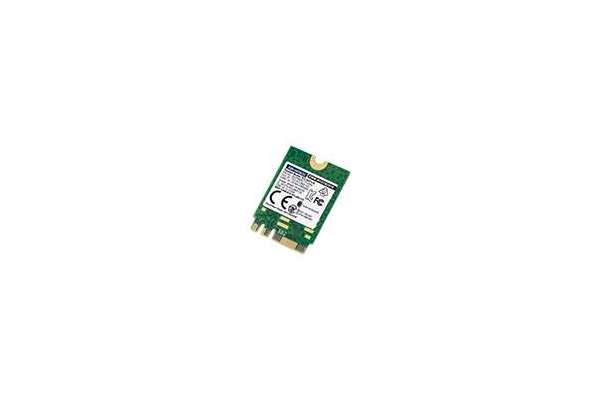

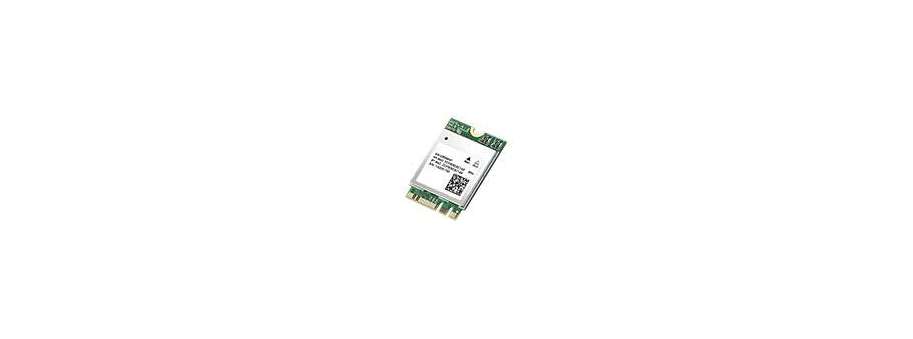

802.11 ac/a/b/g/n + Bluetooth 4.2 M.2 2230 (A-E Key) Card Advantech EWM-W157M2

Price and avalability

Partnumber Description Price VAT incl Avalability
EWM-W157M201E Модуль бездротового зв'язку 802.11 ac/a/b/g/n + Bluetooth 4.2 M.2 2230 (A-E Key) Card  1 110,1
EWM-W157H01E Модуль беспроводной связи 802.11 a/b/g/n/ac,RTL8821AE,with BT4.0  1 470,4 Доступно

EWM-W157M2 802.11 ac/a/b/g/n + Bluetooth 4.2 M.2 2230 (A-E Key) Card

  • IEEE 802.11 ac/a/b/g/n + Bluetooth 4.2 HS standard
  • 1TX/1RX
  • 64/128 bit WEP, 802.1x, TKIP and AES
  • Operating temperature: 0 ~ +70 °C
  • Support 802.11ac 1x1,Wave-2 compliant with MU-MIMO
  • Maximum PHY data rate up to 433.3Mbps using 80MHz bandwidth

EWM-W157H 802.11 a/b/g/n/ac + Bluetooth 4.0 Half-size Mini PCIe Card

  • IEEE 802.11 a/b/g/n/ac + Bluetooth 4.0 HS standard
  • 1Tx/ 1Rx
  • Up to 433 Mbps data rate
  • 64/128-bit WEP, 802.1x, TKIP and AES
  • Operating temperature: 0 to 70° C

Additional information

Specifications EWM-W157M2 EWM-W157H
Main Chipset RTL8821CE-CG Realtek RTL8821AE
Tx/Rx 1TX/1RX (2 IPEX MHF4 connector Receptacle) 1Tx/ 1Rx (2 U.FL connectors)
Standard Conformance 802.11 ac/a/b/g/n+BT4.2 802.11 a/b/g/n/ac
Form Factor M.2 2230, A-E Key card Half-size Mini PCIe card
Interface WIFI: PCI-E, Bluetooth: USB PCI-E
Operation Voltage DC 3.0 ~ 3.3V DC 3.3V ±5%
Power Consumption Dynamic Test TX: 350mA (Avg.)
  • WiFi Continue TX: 359.5 mA
  • BT Continue TX: 54.9 mA
Security 64/128 bit WEP 64/128 bit WEP
O.S Supported Windows 7/8.x/10 Windows 7/8/8.1
Temperature Ranges Operating Temperature: 0~+70°C Operation: 0 to 70° C
Dimensions (L x W x H) 22 x 30 x 2.2 mm 26.65 x 29.85 x 3.95 mm
