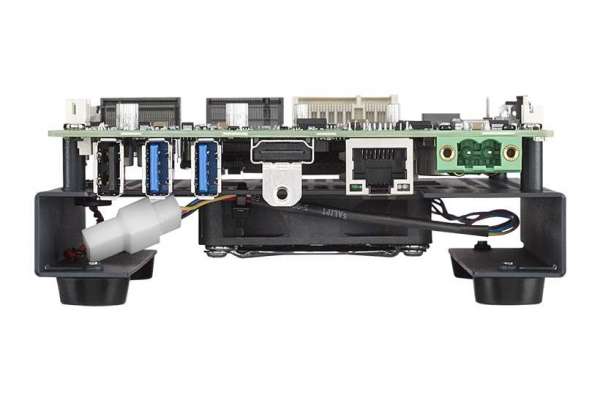

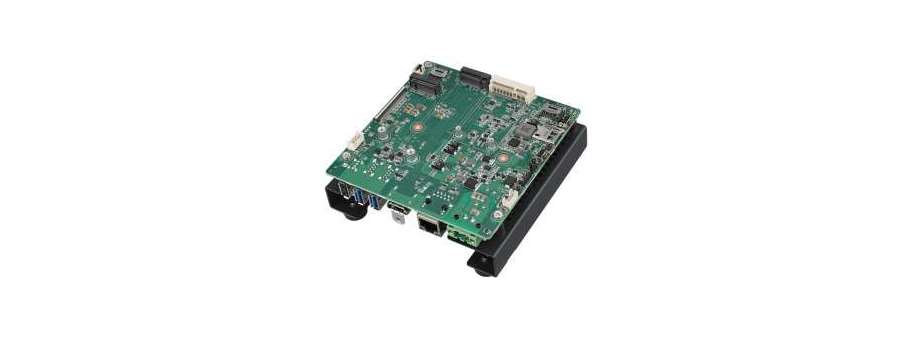

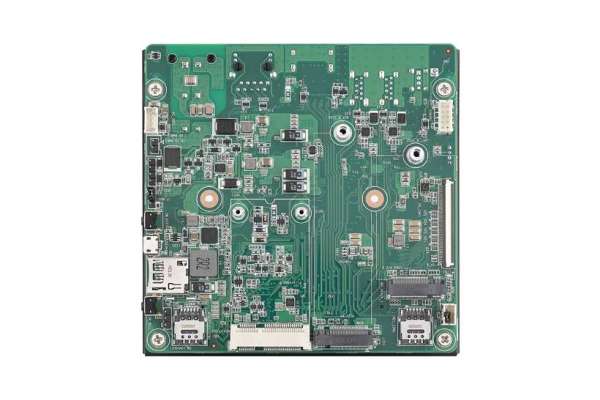

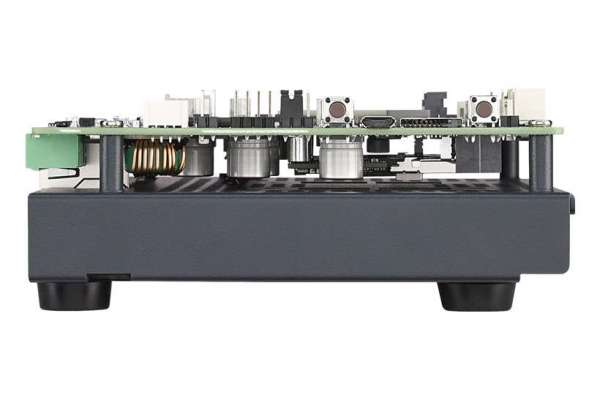

AI Developer Kit Advantech MIC-711D-ON

AI Computer System Based on NVIDIA® Jetson Orin™ Nano Advantech MIC-711D-ON

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
MIC-711D-ON3A1	Набір розробника для системи штучного інтелекту Advantech MIC-711D на базі NVIDIA Jetson Orin Nano 8G Developer Kit	60 316,7
MIC-711D-ON2A1	Набір розробника для системи штучного інтелекту Advantech MIC-711D на базі NVIDIA Jetson Orin Nano 4G Developer Kit	59 114,1
MIC-711D-ON3A2	Компактний промисловий комп'ютер Advantech MIC-711D, NVIDIA Jetson Orin Nano 8G Developer Kit_Super	62 770,1
MIC-711D-ON2A2	Компактний промисловий комп'ютер Advantech MIC-711D, NVIDIA Jetson Orin Nano 4G Developer Kit_Super	60 519,9

• Open-frame carrier design with thermal solution
• Embedded with NVIDIA® Jetson Orin™ Nano up to 67 TOPS
• Supports 1 x GbE, 2 x USB 3.2 Gen 1 (5 Gbit/s)
• Supports 1 x mPCIe, 1 x M.2 3052, 1 x M.2 2280
• Supports Allxon 24/7 remote monitoring and OTA deployment
• Supports Super mode with Jetpack 6.2 and above

Additional information

Processor System
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU	8G: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 4G: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
Memory	8GB: 8GB LPDDR5 4GB: 4GB LPDDR5
Flash	-
I/O
Ethernet	1 x 10/100/1000 Mbps
Display	HDMI (Max. resolution 3840x2160 @ 60Hz)
USB	External: 2 x USB 3.2 Gen 2, 1 x USB 2.0 Internal: 1 x USB 2.0 (by pin header)
OTG USB	1 x Micro USB
Expansion
Mini PCIe	1 x mPCIe (Signal: PCIe + USB 2.0)
M.2	1 x M.2 3052 (B-Key, Signal: USB)
GMSL (Optional)	2-ch GMSL2.0 with FAKRA connectors
SIM	2 x Nano SIM slots
Storage
M.2	1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card	1 x Micro SD
Fan
Dimension	60 x 60 x 13 mm (2.36" x 2.36" x 0.51")
RPM	5400 RPM
Power
Mode	Terminal block, 2-pin, AT
Input Voltage	9~36 VDC
Mechanical
Dimensions (W x D x H)	125 x 125 x 51 mm (5.1" x 5.1" x 1.8")
Weight	0.8 kg (1.76 lb)
Installation	Desktop
BSP
Jetpack	Above 5.1
