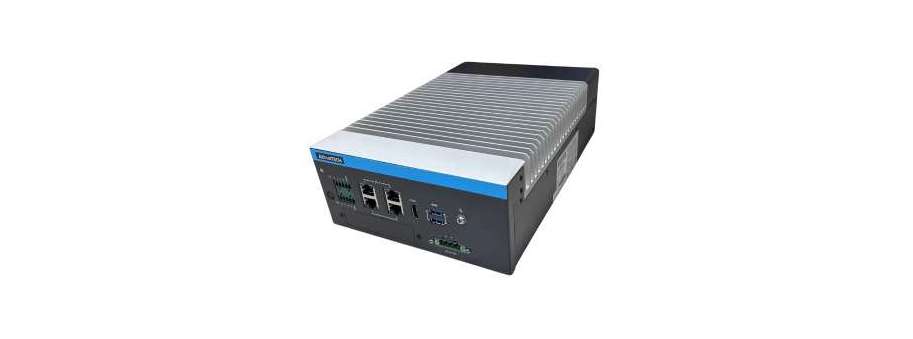

NEMA TS2 AI Inference System Based on NVIDIA® Jetson AGX Orin™ Advantech MIC-733-TS
- Compact fanless design
- Embedded with NVIDIA® Jetson AGX Orin™
- NEMA TS2 compliance
- -34 to 74°C operating temperature support
- 500ms power interruption backup (Based on NEMA TS2)
Additional information
Processor |
|
| NVIDIA Jetson Series | AGX Orin 32G |
| CPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 930 MHz |
| Al Performance Reference | Up to 200 TOPs |
| Memory | 32GB 256-bit LPDDR5 DRAM |
I/O |
|
| Ethernet | 4 x 10/100/1000 Mbps (Support 4 x Gigabit PoE/2 Gigabit PoE+ with 60W power budget) |
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB | 2 x USB 3.0 |
| Digital I/O | 4-ch DI, 4-ch DO |
| Power Switch | 1 x Power ON/OFF Button |
| Serial Ports | 2 x RS-232/422/485 (On-board pin header) |
| OTG USB | 1 x Micro USB |
Expansion |
|
| Mini PCIe | 2 x mPCIe (Signal: PCIe+USB) |
| SIM | 2 x Nano SIM slots |
| M.2 | 1 x M.2 3052 (B-Key, Signal: USB) |
| TPM (Optional) | 1 x TPM 2.0 |
| iDoor (Optional) | 1 x iDoor bracket reserve |
Storage |
|
| M.2 | 1 x M.2 2280 M-Key Slot, pre-installed NVMe with 512G 3D TLC BiCS5 (-40~85°C) |
| SD Card | 1 x Micro SD slot |
Power |
|
| Mode | AT/ATX (Default AT) |
| Input Voltage | 12 VDC (With external 240W Adapter) (pre-configured with hardened power adaptor/power core) |
Environment |
|
| Operating Temperature | -34 ~ +74 °C with 0.7 m/s airflow (in 30W AGX Orin mode) |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 10G / 11 ms |
Mechanical |
|
| Dimensions (W x D x H) | 192 x 290 x 87 mm |
| Weight | 4.5 kg (9.9 lb) |
| Installation | Desktop / Wall mount |
BSP |
|
| Jetpack | Above 6.1 |
| Certifications | NEMA-TS2/CE/FCC (No RED certification) |
