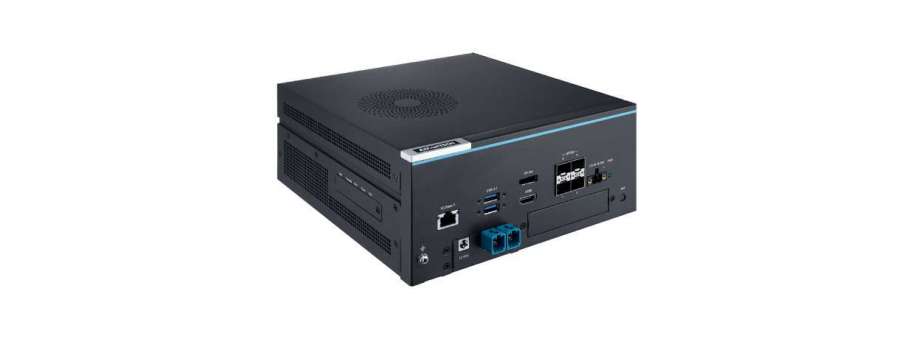

AI Inference System Powered by NVIDIA® IGX Thor™ Advantech MIC-735-IT
- Embedded with NVIDIA IGX™ T5000 up to 2,070 FP4 TFLOPS
- Supports 4 x SFP28 (4 x 10 GbE)
- Supports 1 x 5GbE, 2 x USB 3.2 Gen 2, 1 x M.2 Ekey (WiFi), 1 x M.2 B key (LTE./ 5G)
- Supports 1 x Safety MCU
- Wide operating temperature -30°C to +60°C with ruggedized design
- Support Total 8-ch GMSL2.0 with mini FAKRA connectors
Additional information
Processor |
|
| CPU | 14-core Arm® Neoverse®-V3AE 64-bit CPU |
| GPU | 2,560-core NVIDIA Blackwell architecture GPU with fifth generation Tensor Cores |
| Memory | 128 GB 256-bit LPDDR5X |
Ethernet |
|
| RJ45 | 1 x 10/100/1000/2500/5000 Mbps Ethernet |
| SFP28 | 4 x 10 GbE |
I/O |
|
| Display |
|
| USB | 2 x USB 3.2 Gen 2 (Type A) |
| Flash USB | 1 x USB 2.0 (Type C) |
| Console | 1 x USB 2.0 (Type C) console for debug (UART to USB) |
| CANBUS | 1 x CANBUS (header) |
| GMSL (Optional) | 4 x MIPI 4 lanes (Support 8-ch GMSL2.0 with mini FAKRA connectors) |
| SIM card | 1 x Nano SIM on side of board |
Extension |
|
| M.2 E Key | 1 x M.2 2230 Slot (E-Key) (Signal: PCIe x1 + USB2.0) |
| M.2 B Key | 1 x M.2 3052 Slot (B-Key) (Signal USB 3.0 +USB 2.0) |
| Mini PCIe | 1 x mPCIe Slot (Signal: PCIe + USB 2.0) |
Storage |
|
| M.2 M Key |
|
Power |
|
| Mode | AT |
| Input Voltage | 19~36 VDC |
| Internal pin header | 3 x SMART FAN |
Environment |
|
| Operating Temperature | -30°C to + 60°C with 0.7 m/s airflow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
| Shock | 10G / 11 ms |
Safety |
|
| Safety MCU module (Optional) | 1 x SMCU module with Renesas SMCU RH850/U2A16 (board to board connector) |
Mechanical |
|
| Dimensions (W x D x H) | System: 212 x 216 x 95 mm |
| Weight | 2.8 kg |
| Installation | Desktop / Wall mount /DIN rail |
BSP |
|
| IGX OS | IGX OS 2.0 (iGPU mode) |
| Certifications | CE/FCC Class A /UKCA (No RED certification) |
