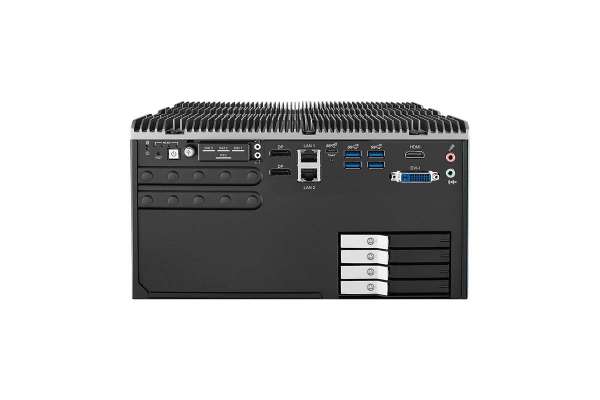

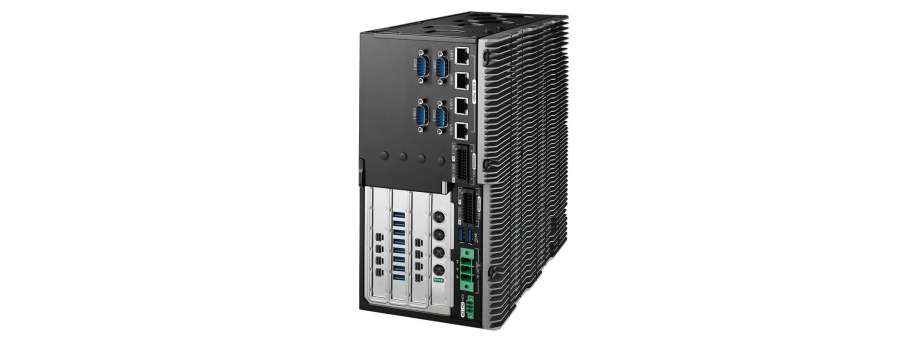

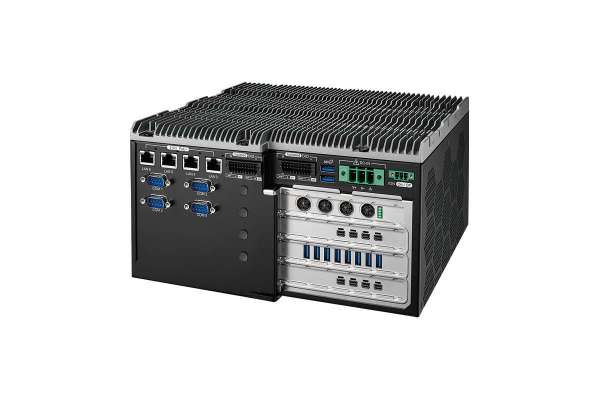

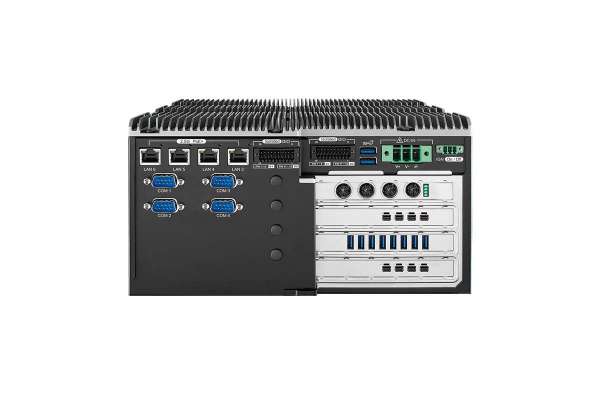

Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor Flexible AI Inference Workstation Vecow ECX-3000 PEG

Manufacturer: Vecow
Facebook Twitter Linkedin Mail

Workstation-grade Platform : Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor (codename: Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) and running with Intel® R680E Chipset, Vecow ECX-3000 PEG Series delivers workstation-grade performance, with up to 36% CPU performance improved.

The series is equipped with up to 4 PCIe expansion slot that supports max 200W power of NVIDIA® or AMD graphics engine and allows for expansions with 1 Mini PCIe and 2 M.2. Support for PCIe 4.0 and DDR5 4800HMz memory up to 64GB, Vecow ECX-3000 PEG Series offers a robust combination of performance and flexibility to facilitate AIoT applications such as Robotic Control, Smart Manufacturing, In-Vehicle Computing, and any Edge AI applications.

  • Workstation-grade Platform : Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor running with Intel® R680E PCH supports max 65W TDP CPU
  • Supports outstanding AI computing productivity by NVIDIA® /AMD graphics card, up to 200W power budget
  • USB 3.2 Gen 2x2 offers a max speed of 20Gbps data transfer
  • DC 12V to 50V wide range power input, Software Ignition Control
  • 4 Independent 2.5G LAN with IEEE 802.3at PoE+
  • 5G/WiFi/BT/4G/LTE/GPRS/UMTS, Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
  • Storage : Max. 4 front-access 2.5" SSD Tray, M.2 Key M

Additional information

System
Processor
  • 24-core Intel® Core™ 200S Series Processor (Bartlett Lake-S)
  • 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
  • 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
  • 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
Chipset Intel® R680E Chipset
BIOS AMI
SIO IT8786E
Memory 2 DDR5 5200MHz SO-DIMM, up to 96GB
OS Windows 11, Windows 10, Linux

I/O Interface
Serial 4 COM RS-232/422/485
USB
  • 6 USB 3.2 Gen 2, USB Type A Connector
  • 1 USB 3.2 Gen 2x2, USB Type-C Connector supports max 20Gbps data transfer (15W, 5V/3A)
Isolated DIO
  • ECX-3800/3600/3400/3200 PEG : 32 Isolated DIO (16 DI, 16 DO)
  • ECX-3100 PEG : 16 GPIO
LED Power, HDD, PoE, WLAN
SIM Card 3 External Nano SIM Card Socket
RTC Battery 1 Front-access RTC Battery

Expansion
Mini PCIe 1 Mini PCIe sockets for PCIe/USB/SIM Card
PCIe Up to 4 PCIe Slots
M.2
  • 1 M.2 Key B Socket (3042/2280, PCIe/USB 3, default/USB 2)
  • 1 M.2 Key B Socket (3052/2280, PCIe/USB 3, default/USB 2)
  • 1 M.2 Key E Socket (2230, PCIe/USB)

Graphics
Graphics Processor Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture
Interface
  • 1 DVI-I : Up to 1920 x 1080 @60Hz
  • 1 HDMI : Up to 1920 ×1080 @60Hz
  • 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @120Hz
  • By requested Graphics Card

Storage
SATA
ECX-3800/3600/3400 PEG : 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
ECX-3200/3100 PEG : 2 SATA III (6Gbps) support software RAID 0, 1
M.2
1 M.2 Key M Socket (2280, PCIe x4)
Storage Device
ECX-3800/3600/3400 PEG : 4 Front-access 2.5"SSD/HDD Tray
ECX-3200/3100 PEG : 2 Front-access 2.5"SSD/HDD Tray

Audio
Audio Codec Realtek ALC888S-VD, 7.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT
LAN 2 Intel® I210 GigE LAN

PoE (ECX-3800/3600/3400/3200 PEG)
LAN 3 to LAN 6 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, RJ45 Connector ECX-3200MX PEG : X-Coded M12 Connector

Power
Power Input DC 12V to 50V Power Input
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16-mode Software Ignition Control
Remote Switch 3-pin Terminal Block

Mechanical
Dimensions
  • ECX-3800 PEG : 260mm x 240mm x 142mm (10.24"x9.45"x5.59")
  • ECX-3600 PEG : 260mm x 240mm x 120mm (10.24"x9.45"x4.72")
  • ECX-3400 PEG : 260mm x 240mm x 104mm (10.24"x9.45"x4.09")
  • ECX-3200/3100 PEG : 260mm x 240mm x 79mm (10.24"x9.45"x3.11")
Weight
  • ECX-3800 PEG : 7.5 kg (16.53 lb)
  • ECX-3600 PEG : 6.5 kg (14.33 lb)
  • ECX-3400 PEG : 5.5 kg (12.13 lb)
  • ECX-3200/3100 PEG : 4.5 kg (9.92 lb)
Mounting
  • Wallmount by mounting bracket
  • VESA Mount (Optional), Rackmount (Optional)

Environment
Operating Temp. -20°C to 45°C (-4°F to 113°F), with System Fan
Storage Temp. -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% @45°C
Shock/Vibration Operating, MIL-STD-810G, Procedure I
EMC CE, FCC, EN50155, EN50121-3-2
