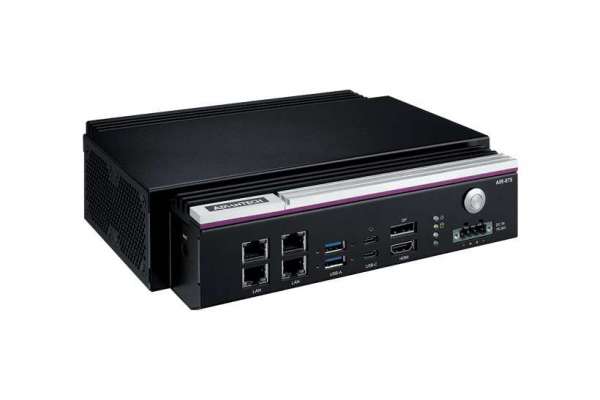

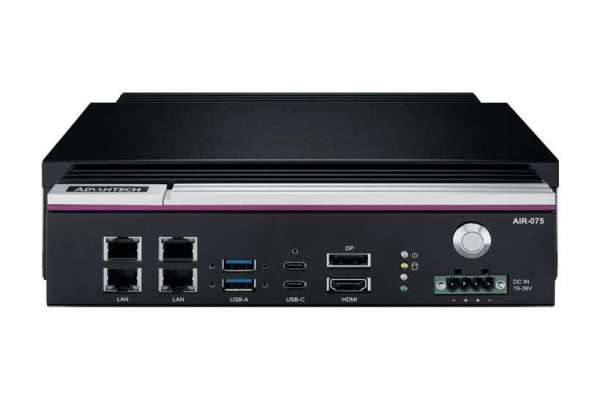

Edge AI PC powered by NVIDIA Jetson T5000™ and Jetson T4000™, delivering up to 2070 TFLOPS FP4 inference performance Advantech AIR-075
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIR-075A-S6A1U | Edge Advantech AI система висновків з NVIDIA Thor T5000 | 551 178,0 |
- Powered by NVIDIA Jetson T5000™ and Jetson T4000™, delivering up to 2070 TFLOPS FP4 inference performance.
- 19~36V wide power and -10~40 °C wide temp. supported.
- Multiple I/O Expansion: 2x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x M.2 B Key (5G/LTE), and 2x M.2 E Key (NVMe / Wi-Fi).
- Support 10GbE with RJ45 connectors.
- Support WEDA / SUSI / Edge AI SDK / Inference Kit.
Additional information
Processor Module |
||
| Module | NVIDIA Jetson T5000 | NVIDIA Jetson T4000 |
| CPU | 14-core Arm® Neoverse®-V3AE 64-bit CPU | 12-core Arm® Neoverse®-V3AE 64-bit CPU |
| GPU | 2560-core NVIDIA Blackwell architecture GPU with 96 fifth-gen Tensor Cores | 1536-core NVIDIA Blackwell architecture GPU with 64 fifth-gen Tensor Cores |
| AI Performance | 2070 TFLOPS (FP4—Sparse) | 1200 TFLOPS (FP4—Sparse) |
| Memory | 128GB 256-bit LPDDR5X , 273 GB/s | 64GB 256-bit LPDDR5X , 273 GB/s |
Ethernet |
||
| Interface | RJ-45 optional PoE support (IEEE 802.3 af) | RJ-45 optional PoE support (IEEE 802.3 af) |
| PHY | Marvell AQR113 | Marvell AQR113 |
| Speed | 4x 10GbE Ethernet (10M/100M/1G/2.5G/10Gbps) | 2x 10GbE Ethernet (10M/100M/1G/2.5G/10Gbps) |
Display |
||
| HDMI | 1x HDMI 2.1, Max 3840 x 2160 (4K) at 60 Hz | 1x HDMI 2.1, Max 3840 x 2160 (4K) at 60 Hz |
| DP | 1x DP 1.4a, Max 3840 x 2160 (4K) at 60 Hz | 1x DP 1.4a, Max 3840 x 2160 (4K) at 60 Hz |

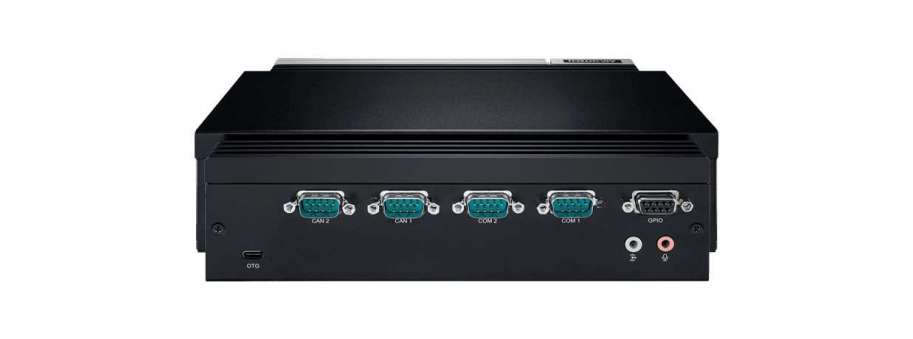

IO Ports |
||
| USB |
|
|
| CANBus | 2x DB9 | N/A |
| DI/DO | 1x DB9 (8 bit) | 1x DB9 (8 bit) |
| COM | 2x DB9 (RS-232/RS-422/RS-485) | 2x DB9 (RS-232/RS-422/RS-485) |
| Audio | Line-out, Mic-in | Line-out, Mic-in |
Expansion |
||
| M.2 |
|
|
Others |
||
| TPM | TPM2.0 | TPM2.0 |
Storage |
||
| M.2 |
|
|
Power |
||
| Power Input | 19~36V DC input | 19~36V DC input |
| Power Type | ATX/AT mode, ATX default | ATX/AT mode, ATX default |
Power Consumption |
||
| Typical (OS idle mode) | 13.2W | TBD |
| Max. (Full loading) | 156W | TBD |
Environment |
||
| Op.Temp | -15 ~ 40°C (non-POE) / -15 ~ 35°C (POE) with 0.7 m/s airflow (TDP 130W) | -15 ~ 55°C (non-POE) / -15 ~ 45°C (POE) with 0.7 m/s airflow |
| Op. Humidity | 95% @ 40 °C (non-condensing) | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
Mechanical |
||
| Dimensions (W x D x H) | 235.8 x 174 x 59 mm | 235.8 x 174 x 59 mm |
| Weight | 2.89Kg | 2.89Kg |
| Mounting Support | Wall mounting | Wall mounting |
Operating System |
Ubuntu 24.04 LTS with NVIDIA Jetpack™ 7.1 | Ubuntu 24.04 LTS with NVIDIA Jetpack™ 7.1 |
Software Support |
||
| Software API | WEDA / SUSI / Edge AI SDK / Inference Kit compatible | WEDA / SUSI / Edge AI SDK / Inference Kit compatible |
Certifications |
||
| EMC/Safety | CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate) | CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate) |
