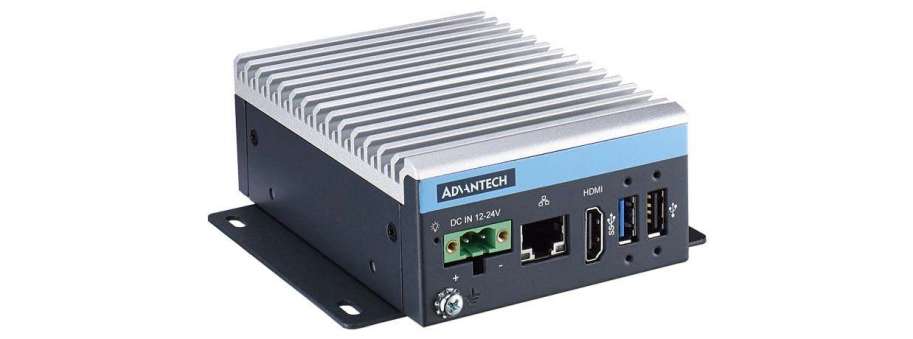

AI Inference System (Lite) based on NVIDIA® Jetson Nano™ Advantech MIC-710AIL

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-710AIL-00B1 Компактний комп'ютер Advantech MIC-710AIL з Jetson Nano: Quad Core ARM Cortex A57, Maxwell GPU, 128 CUDA core, 4Гб LPDDR4, 16Гб eMMC, HDMI, 1xGbE LAN, 2xUSB 3.0, 1xUSB 2.0, MicroUSB, MicroSD, M.2 2280, NanoSIM, MiniPCIe, 12-24VDC-in  38 035,4
MIC-710AIL-00B2 Компактний комп'ютер Advantech MIC-710AIL з Jetson Nano: Quad Core ARM Cortex A57, Maxwell GPU, 128 CUDA core, 4Гб LPDDR4, 16Гб eMMC, HDMI, 1xGbE LAN, 2xUSB 3.0, 1xUSB 2.0, MicroUSB, M.2 2280, NanoSIM, MiniPCIe, 12-24VDC-in, NO SD  38 035,4
  • Fanless and ultra-compact design
  • NVIDIA® Jetson Nano™ embedded
  • 1 x M.2 2280 NVMe for storage
  • Linux OS with BSP (board support package)
  • Supports deep learning trained models
  • Wide-operating temperature range

Additional information

Processor System

CPU Quad Core ARM Cortex A57 (Max. Operating Frequency: 1.43GHz)
GPU Maxwell GPU, 128 CUDA core, Performance up to 472 GFLOPS (FP16) (Max. Frequency: 921MHz)
Memory 4GB LPDDR4
Flash 16G of eMMC

Ethernet

Interface RJ-45
Controller On-module embedded
Speed 1 x Gigabit Ethernet (10/100/1000 Mbps)

I/O

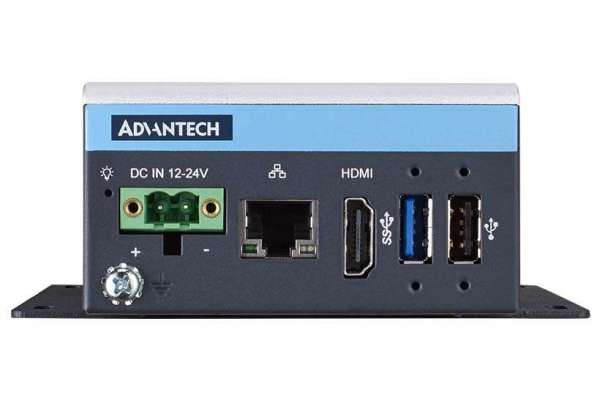

Display HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
  • External USB2.0 x 1 USB3.0 x 1
  • Internal USB2.0 x 1 (By Pin header)
OTG USB (External) 1 x Micro USB
DI/DO -
SIM card 1 x Nano SIM

Expansion

MiniPCIe 1 x Full size MiniPCIe* (PCIex1+USB2.0)

Storage

M.2 1 x M.2 2280 NVMe* (PCIex1 M Key)

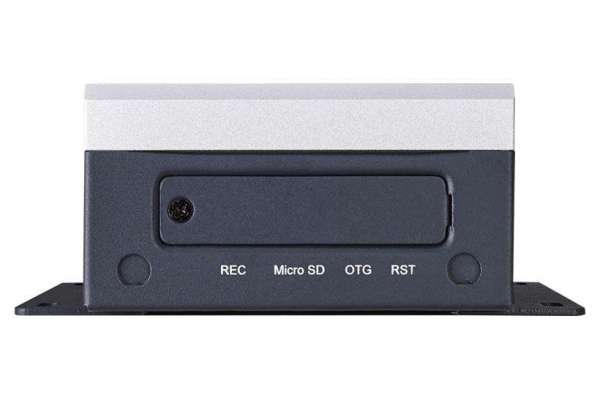

SD card 1 x Micro SD

Power

Power Supply Power Adaptor: 12-24V, 4A-2A
Power Type Terminal Block 2 Pin

Environment

Operational Temperature -10 ~ 60 °C with 0.7 m/s air flow
Operating Humidity 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Mechanical

Dimensions (W x D x H) 85 x 118 x 45 (mm)
Weight 1.2 kg
Installation Desktop/DIN RAIL

Operating System

Linux Ubuntu 18.04 with JetPack
Certifications CB/UL/CE/FCC/BSMI/CCC (No RED certification)
