Analog Input PCIE Card Advantech PCIE-1805

1MS/s, 16bit, 32-chиcount analog input PCIE card Advantech PCIE-1805

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
PCIE-1805-AE	Багатофункціональна плата введення-виведення Advantech PCIE-1805, 32-канала ,16-біт	33 300,1

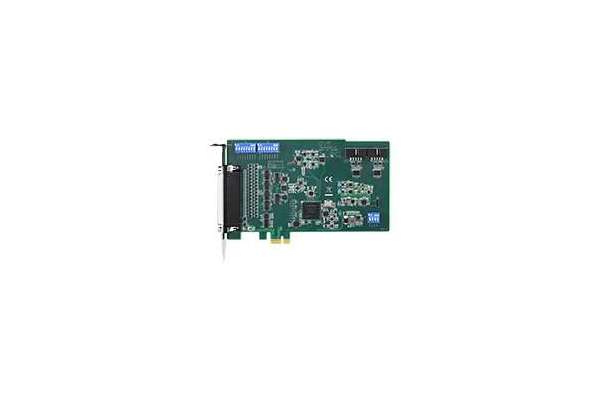

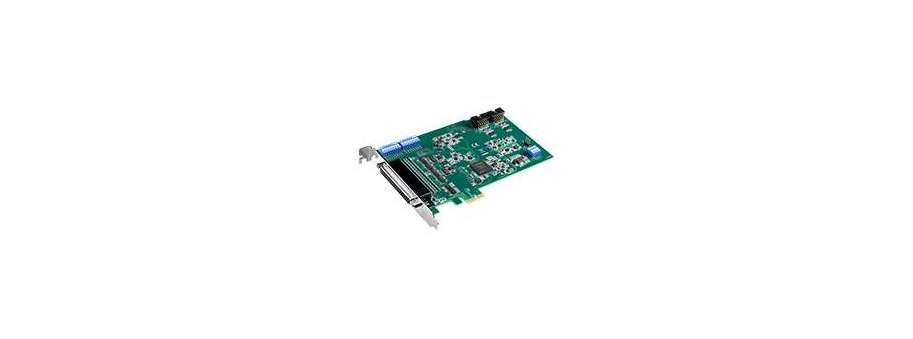

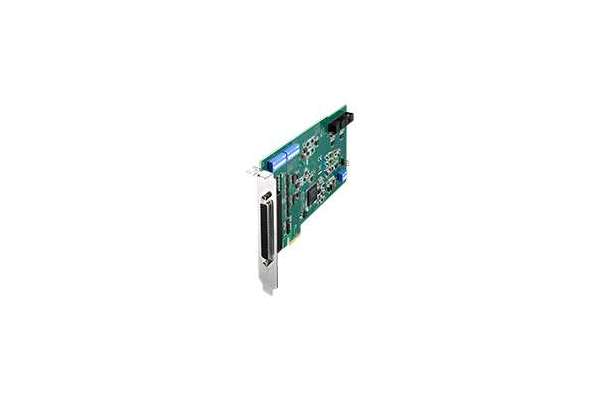

PCIE-1805 is a high-resolution, high-channel-count analog input PCIE card. It provides 32 channels of multiplexed voltage/current measurement, up to 1 MS/s sample rate, 16-bit resolution analog input with low distortion and noise performance. The card features a variety of input ranges and covers both voltage and current measurement. It can easily be applied to most of the industrial applications.

• 32-ch single-ended or 16-ch differential or a combination of analog input
• 16-bit A/D converter, with up to 1MHz sampling rate
• Auto calibration
• Current measurement (0-20mA or 4-20mA)
• Support digital and analog triggers
• Multi-card synchronization

Additional information

Analog Input
Channels	32 single-ended, 16 differential, or combination
Resolution	16 bits
Max. Sampling Rate	1MS/s, shared by all enabled channels
Overvoltage Protection	30 Vp-p
Input Impedance	AI+ to AGND (Single Ended): >1000 GΩ in parallel with 9 pF AI+ to AI- (Differential): >1000 GΩ in parallel with 6 pF
Sampling Modes	Software and onboard programmable pacer
Input Range	±10 V/±5 V/±2 V/±1 V/0 ~ 20 mA/4 ~ 20 mA
Offset error	< ±0.5 mV (Voltage Mode); < ±2.5 μA (Current Mode)
Gain error	< ±0.01 % (Voltage Mode); < ±0.05 % (Current Mode)
RMS Noise	0.1mV
Auto calibration	Yes
Multi-card synchronization	Yes
Trigger & Clock Input
Trigger mode	Start, delay to start, stop, delay to stop
Trigger source	2 external digital triggers and 2 analog triggers from AI channels
Clock input	2 digital trigger inputs, and 1 conversion clock input
Trigger Input voltage	Logic 0: 0.8 V max. (0 V min.) Logic 1: 2.0 V min. (5 V max.)
Trigger and Clock Output
Channels	2 multi-function outputs
Output capability	Logic 0: 0.8 V max. @ 10 mA Logic 1: 2.0 V min. @ -10 mA
General
Bus Type	PCI Express x1
I/O Connector	1 x DB62 female connector
Dimensions (L x H)	168 x 98 mm (6.6" x 3.9")
Power Consumption	+3.3 V 300 mA typ./320mA max. +12 V 70mA typ. / 90mA max
Operating Temperature	0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)
Storage Temperature	-20 ~ 70° C (-4 ~ 158° F)
Storage Humidity	5 ~ 95% RH, non-condensing (refer to IEC 68-2- 3)
