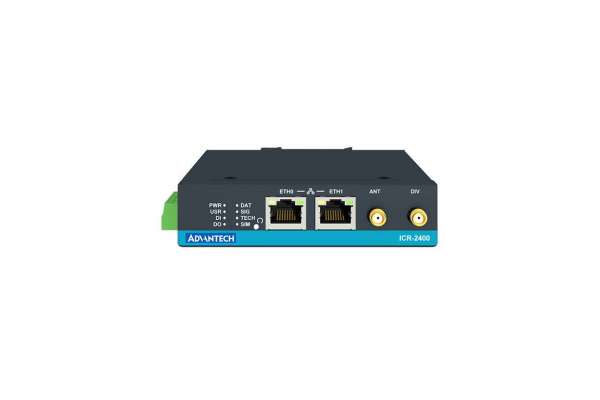

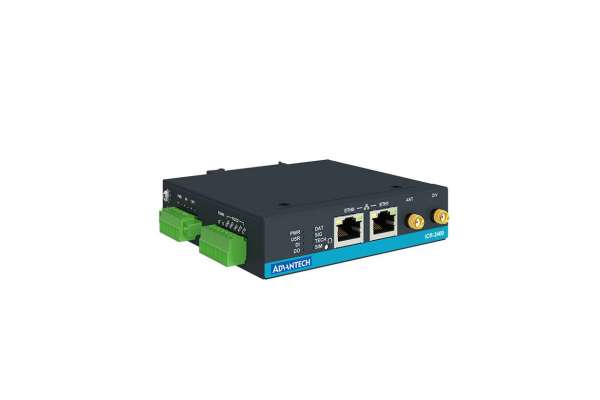

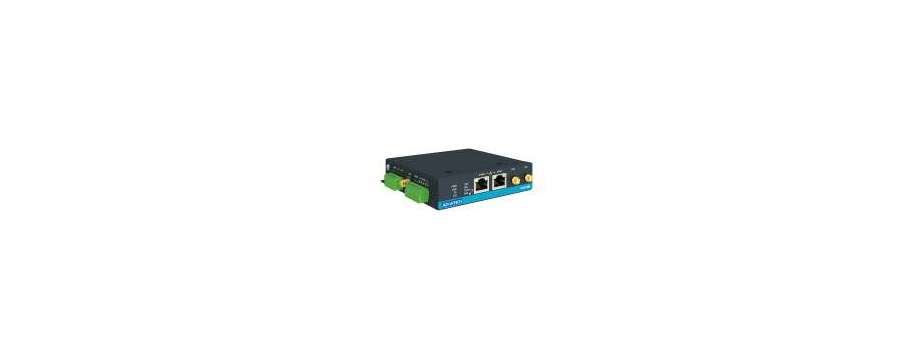

Industrial entry-Level 4G Router, EMEA, 2× ETH , 1× RS232 Advantech ICR-2431

Price and avalability

Partnumber Description Price VAT incl Avalability
ICR-2431 Мережевий рутер Advantech ICR-2431 Industrial Cellular Router, EMEA, 1хRS232 (Tx, Rx, GND, RTS, CTS) 1хRS485 (A(-), B(+), 2хEthernet RJ45, робоча температура -40 +75 °C  15 877,4
ICR-2431W Cellular Router, Cat4, EMEA, 2x ETH, WIFI  19 080,0

Industrial cellular router ICR-2431 is designed for wireless communication in the mobile networks that make use of traditional cellular technologies. The primary purpose of this router is its use in the Category 4 (Cat.4) services on the cellular LTE network. Cat.4 rated ICR-2431 router is capable of achieving better typical speeds in 4G coverage areas where the network is enabled with 20 MHz of contiguous spectrum. Optional built-in WiFi 802.11 ac,b,g,n with AP, Client and Multirole modes are available. The peak downlink data rate for a Category 4 is approximately 150 Mbps. Also in the uplink, LTE Category 4 provides a peak data rate of 50 Mbps. The router is equipped with two independently configurable Ethernet ports (LAN or WAN), 1× serial port RS232, 1× RS485, and with digital I/O connectivity (1× DI, 1× DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status. With open Linux platform and wide possibilities of programming customer SW applications in Python, C/C++. The Advantech existing app library Router Apps (User modules) with apps already developed to enhance specific router functionality including industrial protocol conversions and support of IoT platforms such as MS Azure, Cumulocity, ThingWorx, and others are supported on the router.

  • LTE Cat.4 with 3G/2G fallback
  • 2× SIM for redundancy
  • 2× Ethernet 10/100 Mbps
  • 1× RS232, 1× RS485
  • 1× DI, 1× DO
  • Wide operational temperature range
  • Wall and DIN mount options
  • Linux based OS & SW customization
  • Optional WiFi 802.11n

Additional information

System

CPU ARM926EJ-S, 600 MHz
Memory RAM - 128 MB NOR Flash - 64 MB (12 MB for Router Apps, 2 MB for customer data)
Watchdog HW Watchdog
RTC Battery backup RTC
Interfaces
Ethernet 2× Ethernet (1+ 1), RJ45, 10/100 Mbps
Serial Lines
  • 1× RS232 (Tx, Rx, GND, RTS, CTS)
  • 1× RS485 (A(-), B(+), GND) (7-pin terminal block)

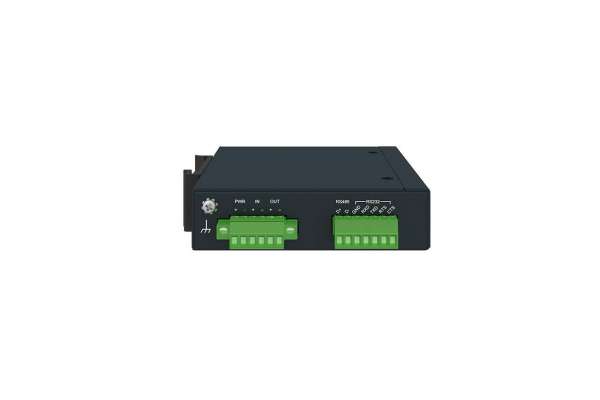

I / O 1× Digital Input (36V/0.5 mA) 1× Digital Output (Open Drain, 36 V/ 100 mA) (6-pin terminal block together with PWR)
Reset Button Reboot / Factory reset
LED Indicators System, Signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, Input, Output, User, ETH

Environmental

Power Supply 9 – 48 V DC (6-pin terminal block together with I/O)
Consuption Idle 1.9 W / Average 2.8 W / Maximum 3.5 W WiFi version: Idle 2.2 W / Average 3.6 W / Maximum 4.2 W
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Humidity 5 to 95 %, non-condensing
IP Cover IP30

Physical Characteristics

Dimensions 103 mm x 95 mm x 25 mm
Enclosure Metal Case, Grounding Screw
Mounting Wall mount, * Optional DIN Rail mount
Weight 345 g

WiFi - ICR-2431W

Antenna 1× R-SMA connector
Standards IEEE802.11 ac/b/g/n 2.4 GHz / 5 GHz
Security WEP, TKIP, AES, WPA, WPA2, WPA3, 802.1X
Modes Access Point (up to 8 clients), Station, Multirole STA & AP

Cellular Interface

SIM Slots 2× SIM (Micro SIM – 3FF)
Antennas 2× SMA connector (1× Main, 1× Diversity)
LTE Parameters
  • Supported FDD frequencies: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A (700 MHz)
  • Supported TDD frequencies: B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz)
  • Transfer rate: 150 Mbps (DL), 50 Mbps (UL)
HSPA+/UMTS Parameters
  • Supported frequencies: B1 (2100 MHz), B8 (900 MHz)
  • Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)
EDGE/GPRS Parameters
  • Supported frequencies: B3 (1800 MHz), B8 (900 MHz)
  • Transfer rate: 296 kbps (DL), 236.8 kbps (UL)

Standards & Regulations

Radio EN 301 511, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 301 893, EN 300 328
EMC EN 301 489-1, EN 301 489-17 , EN 301 489-52, IEC 61000-6-2, IEC 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 55032
Safety EN 62 368-1, IEEE 802.3
Transportation E-mark
National CE, UKCA
Mechanical EN 60529
Climatic EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-30
Environmental REACH, RoHS3, WEEE
