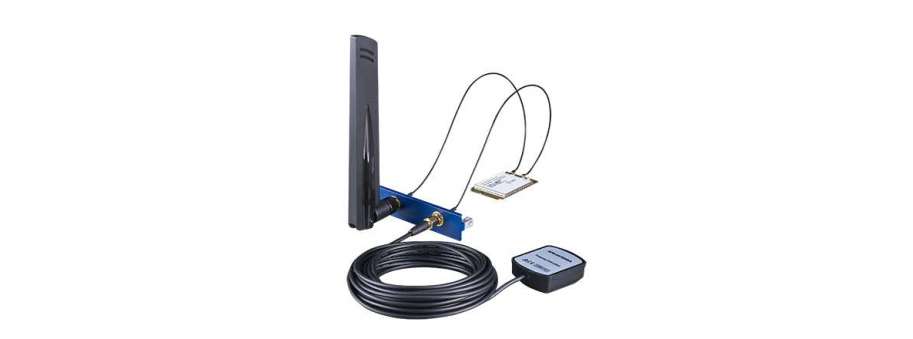

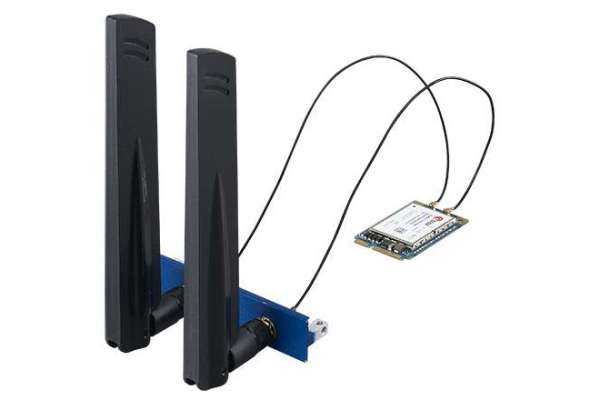

LTE/HSPA+/GPRS, Full-size mPCIe, w/ SIM Slot, 4G Antennas, for EMEA/ APAC and Americas regions Advantech PCM-24S34G
The PCM-24 series are communication modules from Advantech iDoor Technology. They are all compatible with PCI Express® Mini Card Specification Revision 1.2, including isolated / non-isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GSM/LTE wireless communication models for data exchange for management and machine level automation applications; and PoE function for smart cameras in detection-inspection-production applications. This is a flexible design that enables customers to customize their features with iDoor Technology.
- Meets Advantech iDoor technology standard
- PCI Express® Mini card specification revision 1.2 compliant
- Supports B1, B2, B3, B4, B5, B7, B8, B17, B20 for LTE network
- Supports 850/900/1900/2100 MHz for UMTS/HSPA+ network
- Supports 850/900/1800/1900 MHz for EDGE/GPRS/GSM network
- Operating temperature: -40 ~ 85°C ( -40 ~ 185°F)
- Supports 32/64-bit Windows 7/8/8.1/10, Linux Ubuntu 14.04
Additional information
General |
|
| Form Factor | PCI Express Mini Card Revision 1.2 |
| Interface | USB |
| Certification |
|
| Dimensions |
|
| Power Consumption | < 900 mA (LTE connected Mode) |
| Operation Voltage | 3.3V ~ 3.6V |
| SMA Cable | Coaxial GSM/ GPS cable, 250 mm |
Antenna |
|
| 4G Antenna Frequency | 700 ~ 960 MHz, 1710 ~ 2700 MHz |
| 4G Antenna Length | 167 mm |
Software |
|
| OS Support | Supports 32/64-bit Windows 7/8/8.1/10, Linux Ubuntu 14.04 |
Environment |
|
| Humidity (Operating) | 10 ~ 95% RH, non-condensing |
| Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) |
