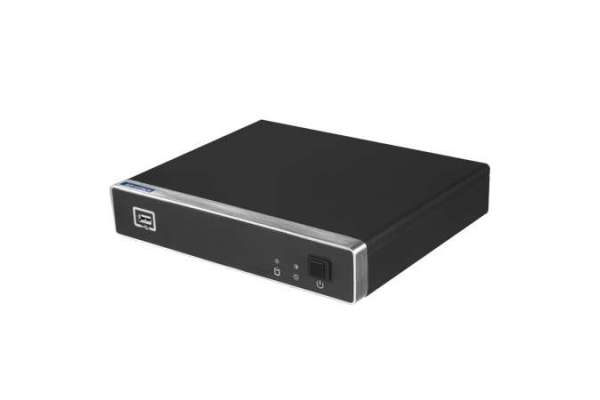

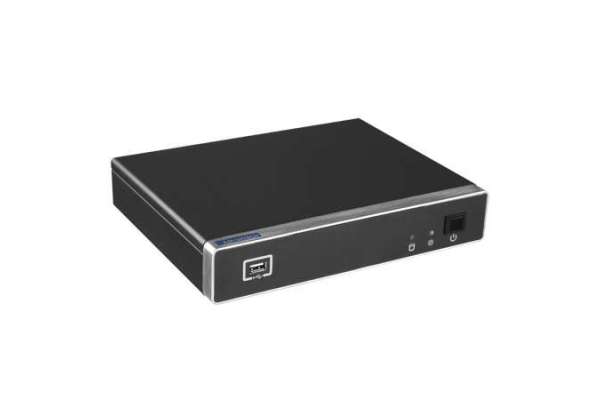

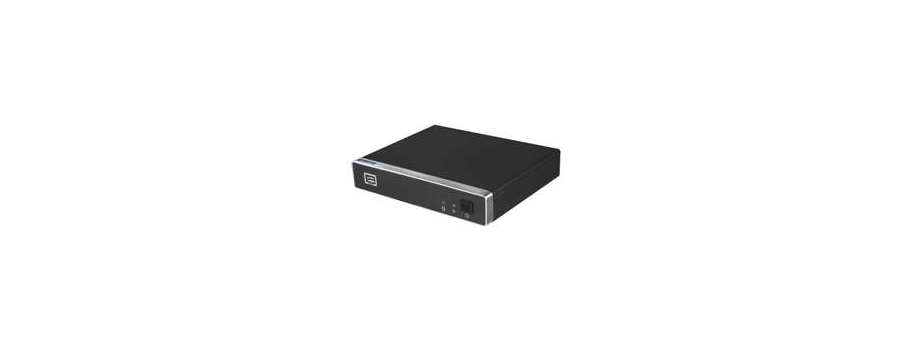

Intelligent, fanless embedded system powered by Intel® low power processor with multiple I/O interface Advantech UBX-310
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UBX-310F-I3B00 | COMPUTER SYSTEM, UBX-310, Intel Core i3 6100U, Fanless, Barebone | 67 225,4 | |
| UBX-310F-I5B00 | COMPUTER SYSTEM, UBX-310, Intel Core i5 6300U, Fanless, Barebone | 89 281,7 |
UBX-310, an intelligent, fanless embedded system powered by Intel® Skylake Core i3/i5 low power processor with multiple I/O interface. Fanless design can provide the user quiet operation environment and reduce the failure rate. These low-power platforms provide energy-efficient and environmentally responsible solutions, compact and fanless design and serve applications targeted at factory automation, machine automation,retail, kiosks, and self-service applications. Moreover, UBX-310 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
- Equipped with DeviceOn/iService software remote device management
- Embedded in Intel Skylake Core i3/i5 processor
- Compact design with 45mm in height
- Easy/quick installation for additional peripherals and expanded modular
- Support 1 x 2.5" SATA HDD Bay and 1 mSATA
- Multiple IO ports is suitable for variety of applications.
- Lockable DC jack design
- Support wall/VESA mount
- Supports WISE-PaaS/RMM and Embedded Software APIs
Additional information
Processor |
|
| CPU |
|
| Max Speed |
|
Memory |
|
| Technology | Single channel DDR4 2133 MHz SDRAM |
| Max Capacity | Up to 16GB |
| Socket | 1 x 260-pin S0-DIMM |
Graphic |
|
| Capacity | Integrated Intel® HD Graphics Engine |
| HDMI | Max. resolution 3840 x 2160 @30Hz |
| VGA | Up to SXGA 2048 x 1152 @ 60 Hz |
Ethernet |
|
| Interface | 10/100/1000 Mbps |
| Controller | I219LM/I211AT GbE LAN |
Audio |
|
| Interface | Realtek ALC892 |

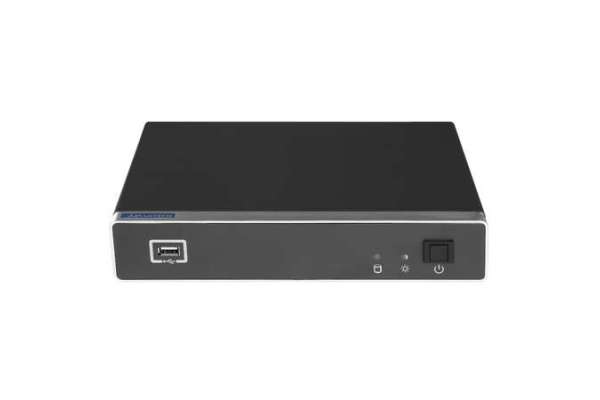

Front IO |
|
| USB2.0 | 1 |
| USB3.0 | NA |
| Serial | NA |

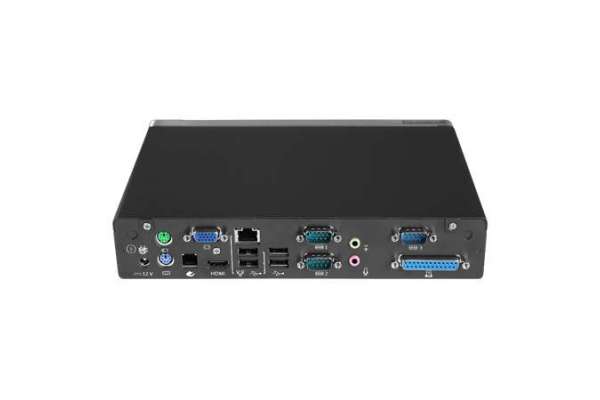

Rear IO |
|
| VGA | 1 |
| HDMI | 1 |
| RJ-45 | 2 |
| USB | 4 x USB3.0, 2 x USB2.0 |
| Serial | 4, COM1&COM2 support 5V/12V Power, COM2 support RS232/422/485 by order |
| LPT | NA |
| RJ11 | 1, cash drawer default 12V |
| Audio | 1 x Line-out, 1 x Mic-in |
| DC Jack | 1 |
Expansion |
|
| Mini PCIe | 2 x F/S MiniPCIe |
Storage |
|
| SATA3.0 | 1 x 2.5-inch SATA3.0 HDD/SSD (7mm height) |
| mSATA | 2 |
Power |
|
| Requirment | ATX Mode, AC to DC, DC 12V/5A, 60W |
Miscellaneous |
|
| Dimension (L x W x H) | 245 x 185 x 45 mm |
| Weight | 2.0kg |
Mounting Mode |
|
| Accessories | Wall /VESA mount |
Software |
|
| OS | Win7, Win10, POSReady7, Linux |
Environment |
|
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Relative Humidity | 90% @ 40 °C (non-condensing) |
| Vibration during operation | With HDD:0.5Grms, IEC 60068-2-64, random 5-500HZ, 3 axes, 1hr/axis |
| Shock during operation | With HDD:10 G, IEC 60068-2-27, half sine, 11 ms duration |
Certifaction |
CCC/BSMI/CE/FCC/UL/CB |
