14/13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer Cincoze DX-1200

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
DX-1200-R10 Високопродуктивний компактний комп'ютер Cincoze DX-1200-R10, 13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer  68 231,6

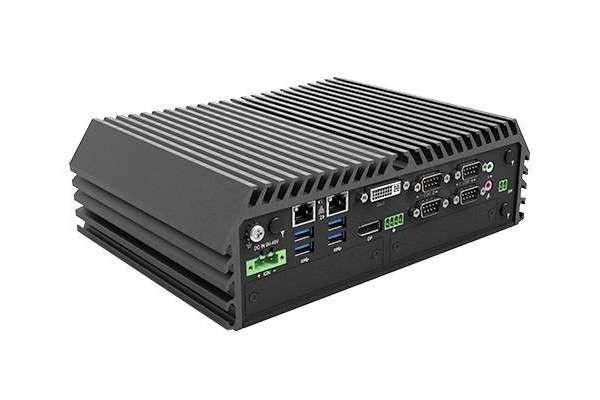

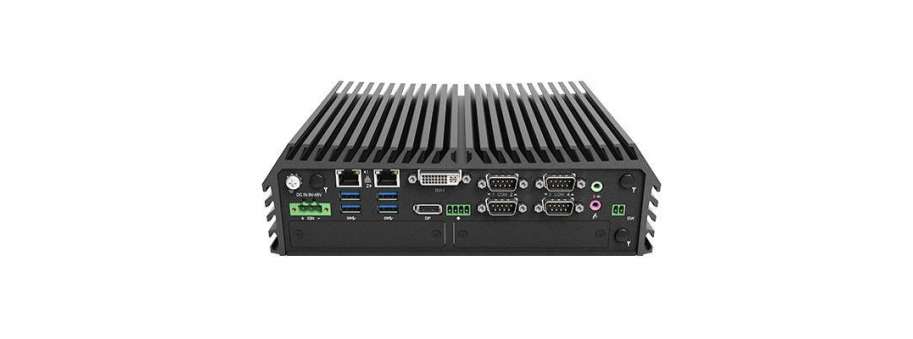

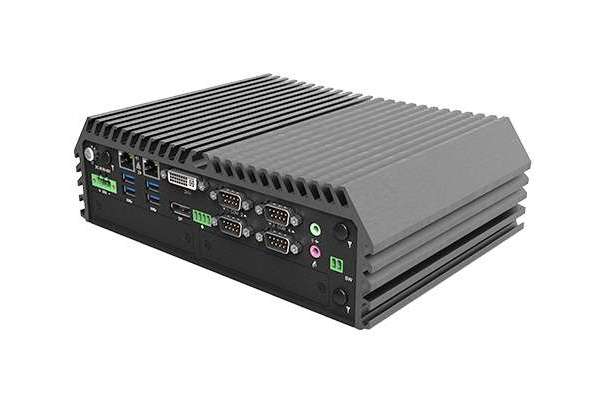

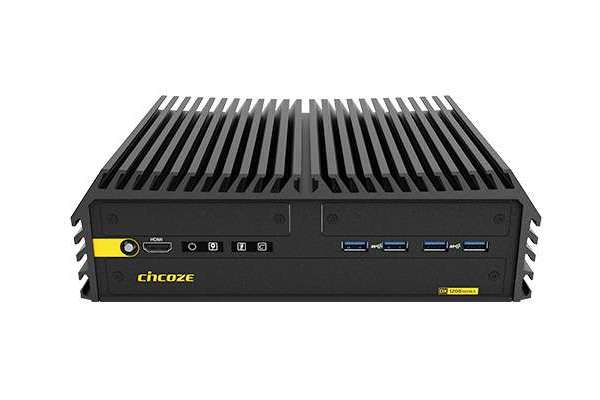

The DX-1200 is a fanless embedded computer that packs extreme performance into a rugged, compact chassis, making it the ideal choice for smart manufacturing, machine vision, and edge AI applications. 14th/13th/12th gen Intel® Core™ (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) processor (TDP up to 65W) and DDR5 5600 MHz memory provide high-speed computing performance, while additional functions, including rich native I/O and modular expansion design, meet the requirements for a wide range of applications.

  • Intel® 14/13/12th Gen. Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 5600MHZ, 64GB
  • Quad Independent Display (HDMI / DP / DVI-I)
  • 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
  • CMI Technology for Optional I/O Module Expansions
  • CFM Technology for Power Ignition Sensing & PoE Function
  • Wide Operating Temperature -40°C to 70°C
  • Safety Standard: UL, cUL, CB, IEC, EN 62368-1

Additional information

System
Processor

• 14th Generation Intel® Raptor Lake-S Refresh Series CPU:

- Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W

- Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W

- Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W

- Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W

- Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W

- Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W

- Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W

- Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W

- Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W

- Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W

- Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W

- Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W

- Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W

- Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W

- Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W

- Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W

- Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W

- Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W

- Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W

• 13th Generation Intel® Raptor Lake-S Series CPU:

- Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W

- Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W

- Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W

- Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W

- Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W

- Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

• 12th Generation Intel® Alder Lake-S Series CPU:

- Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W

- Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W

- Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W

- Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W

- Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W

- Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W

- Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W

- Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W

- Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W

- Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W

- Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
Chipset Intel R680E Chipset
Memory

2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 64GB.

- Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.

- Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.
BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
  • Integrated Intel® UHD Graphics 730: Core™ i3
  • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output Supports Quad Independent Display
DVI

1x DVI-I Connector

- VGA: 1920 x 1080 @ 60 Hz

- DVI-D: 1920 x 1200 @ 60 Hz
DP

1x DP Connector: 4096 x 2304 @ 60Hz

* Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1x HDMI Connector: 3840 x 2160 @ 30Hz

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN

2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE)

- GbE1: Intel® I219

- GbE2: Intel® I210
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 4 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 4 x USB 3.2 Gen1x1 (5Gbps), Type A

Storage
SSD/HDD 2x 2.5" SATA HDD/SSD Bay Supporting Hot Swap Function (SATA 3.0)
mSATA 2x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket )
RAID Support RAID 0/1/5/10

Expansion
Mini PCI Express 2x Full-size Mini-PCIe Socket
M.2 E Key Socket 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
SIM Socket 1x SIM Socket
CMI (Combined Multiple I/O) Interface
  • 2x High Speed CMI Interface for optional CMI Module Expansion
  • 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion

Other Function
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9-48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption
  • 35WCPU: 201.17W
  • 65WCPU: 274.80W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during b
Inrush Current (Peak)
  • 35W CPU: 4.151 A@24V
  • 65W CPU: 4.360 A@24V

Physical
Dimension ( W x D x H ) 242 x 173 x 75 mm
Weight Information 3.05 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / DIN-RAIL / VESA / Side Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Operating System
Windows Windows®11, Windows® 10
Linux Ubuntu Desktop 22.04 LTS

Environment
Operating Temperature
  • 35W TDP Processor: -40°C to 70°C
  • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH @ 70°C (Non-condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN 50155 (EN 50121-3-2 Only)
  • E-Mark
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1
Fire Protection EN 45545-2
