Control IPC Advantech AMAX-5580

Intel® Core™ i7/i5/Celeron® Control IPC Advantech AMAX-5580 With EtherCAT Slice IO Expansion

Signal input/output >> Remote input/output

 Price and avalability

Manufacturer: Advantech Co., Ltd.

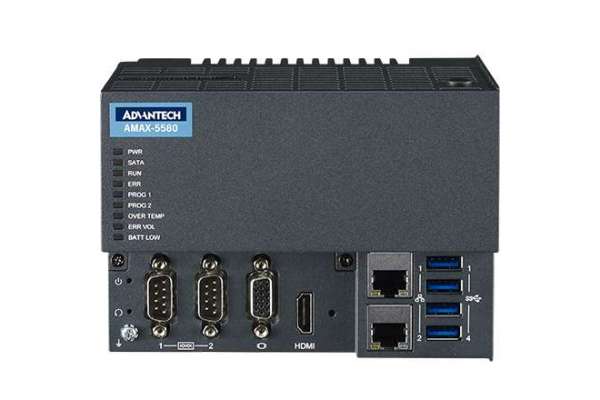

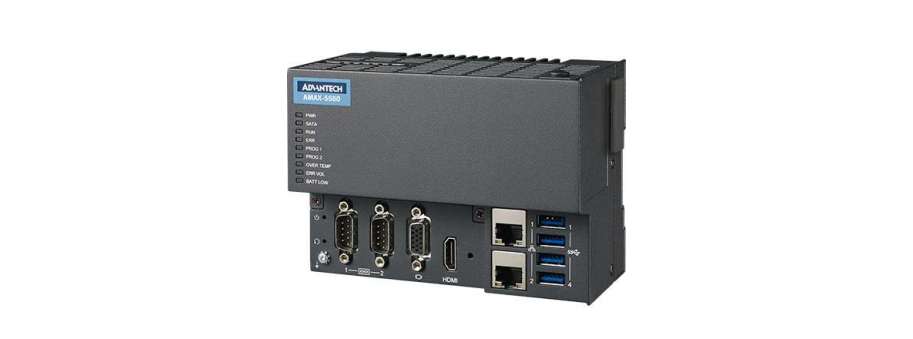

Advantech's AMAX-5580 is a compact and powerful Control IPC with an Intel Core i7/i5/Celeron CPU. It is the ideal open control platform to be combined with AMAX-5000 Series
EtherCAT Slice IO modules, and features flexible I/O expansion, real-time I/O control, network capability through various interfaces, and support dual power input for robust power
system. It also has a built-in standard mini PCI express interface for wireless communication. The AMAX-5580 is the best solution for data gateway, concentrator and data server
applications, its seamless integration with I/O can save costs and fulfill a diverse range of automation projects.

  • 6th generation Intel® Core™ i7/i5/Celeron processors up to 2.6 GHz with 4GB/8GB DDR4 memory
  • 2 x GbE, 4 x USB 3.0, 2 x RS-232 /422/485, 1 x VGA, 1 x HDMI
  • Dual power input with alarm output
  • Compact and fanless design for DIN-rail mount in Control cabinet
  • Maximum 4 expansion capability on left side for AMAX-54XX series module
  • Wireless mPCIe module support for 3G/LTE/Wifi/GPS
  • Chassis grounding protection
  • Independent resource on Intel i210 GbE for better EtherCAT performance
  • Upstream LAN redundancy (Intel Teaming Function)

Price and avalability

Partnumber Description Price VAT incl Avalability
AMAX-5580-C3000A Контролер Advantech AMAX-5580 PC-based Controller Celeron 3955U, 4G DDR4  30 528,6
AMAX-5580-54000A PC-based Controller CORE I5 6300U, 8G DDR4  53 331,1
AMAX-5580-74000A PC-based Controller CORE I7 6600U, 8G DDR4  62 323,4
