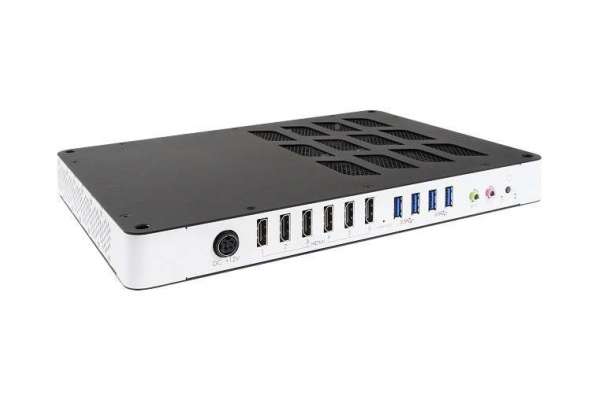

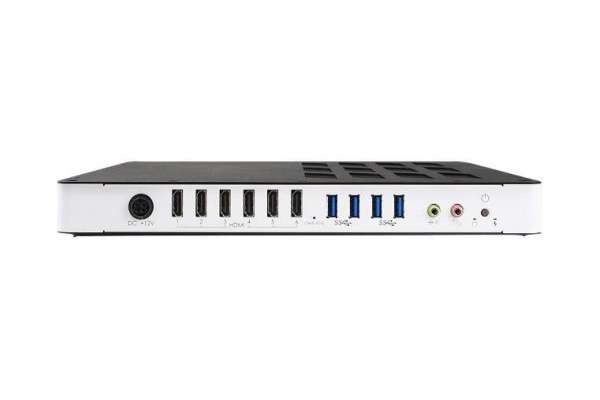

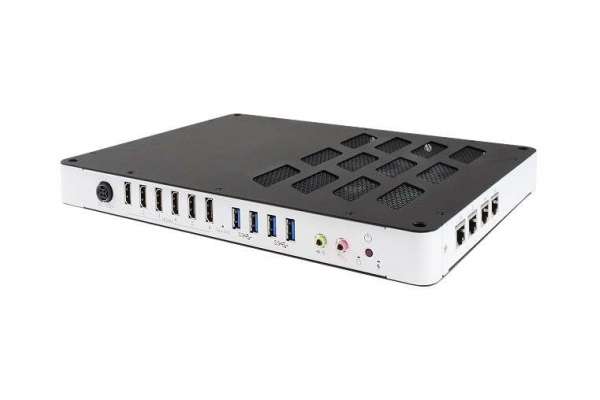

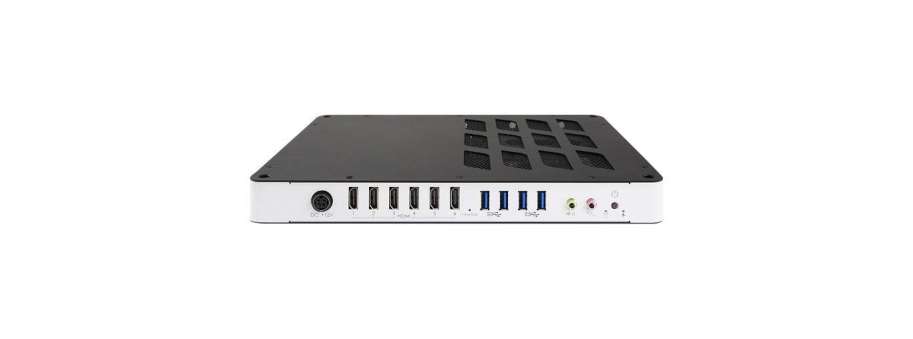

Digital Signage Player IBASE SI-626 7th/6th Gen Intel® Core™ with AMD Radeon™

The SI-626 is a digital signage system based on 7th/6th Gen Intel® Core™ mobile processors and powered by the AMD Radeon™ E8860 graphics GPU that leverages the advanced Graphics Core Next (GCN) architecture to provide outstanding ultra-high resolution multimedia playback across six HDMI display.

To produce an extreme-performance digital signage player, the SI-626 combines the processing power of the Intel® Core™ i7-7820EQ with the supreme graphics capabilities of the AMD Radeon™ E8860. The SI-626 is very slim, less than 30mm in thickness, yet it provides stable performance because of the segregated ventilation that IBASE puts into the design to protect components from dust and built-in IBASE H/W EDID emulation with remote control functionality using an IBASE utility to prevent display issues due to cable disconnection or display identification failures.

The IBASE iCONTROL intelligent energy-saving green technology and the Observer remote monitoring technology in the SI-626 enable power efficiency through automatic power scheduling, power failure detection to reduce downtime, restoration to default state in the event of a system crash, as well as system boot up even under low ambient conditions so that users can depend on the SI-626 to deliver reliable performance even in rugged environments.

The SI-626 is ideal for video walls or multi-displays with ultra-high resolution multimedia playback across multiple displays to capture and hold viewers’ attention like never before, in public places such as large retail stores, shopping malls, airports and train stations. The standard SI-626 comes with 8GB of DDR4 system memory, two Gigabit Ethernet and a 128GB SSD storage. Weighing 2.2kgs and measuring 290mm by 222mm by 29.9mm, it can be mounted directly without the need for additional mounting brackets.

  • iCONTROL intelligent energy-saving & Observer remote monitoring technologies
  • 6x HDMI1.4b with independent audio output
  • Built-in hardware EDID emulation function with software setting mode
  • 7th/6th Generation Intel® Core™ mobile processor
  • 2x DDR4-2133 SO-DIMM, dual channel, Max. 32GB
  • Flexible VW display configuration setting
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth, 4G LTE options
  • 1x M.2 M key (2280) for storage
  • 2x RS232 serial ports
  • Slim and segregated ventilation design

Additional information

Model Name

Product Description

SI-626 Book-Size Signage Player with MBD626 (w/ AMD E8860 for 6 x HDMI), with 7th Gen. Intel Core (Mobile) I7-7820EQ processor, 2x 4GB DDR4/2133 SO-DIMM, 2.5” 128GB SSD and 150W Power adapter.
SI-626-M Book-Size Signage Player with MBD626 (w/ AMD E8860 for 6 x HDMI), with 7th Gen. Intel Core (Mobile) I7-7820EQ processor, and 150W Power adapter, without memory or Storage.
SI-626-7440 Book-Size Signage Player with MBD626 (w/ AMD E8860 for 6 x HDMI), with 7th Gen. Intel Core (Mobile) I5-7440EQ processor(cTDP at 35W), 2x 4GB DDR4/2133 SO-DIMM, 2.5” 128GB SSD and 150W Power adapter.
SI-626-7440M Book-Size Signage Player with MBD626 (w/ AMD E8860 for 6 x HDMI), with 7th Gen. Intel Core (Mobile) I5-7440EQ processor(cTDP at 35W), and 150W Power adapter without memory or storage
