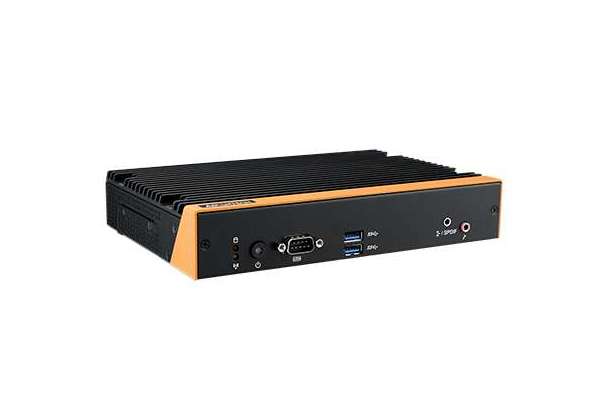

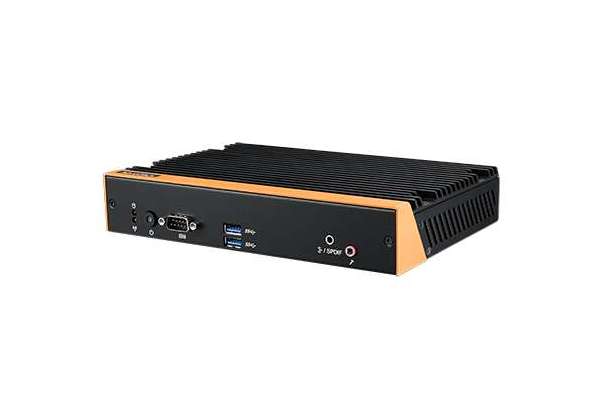

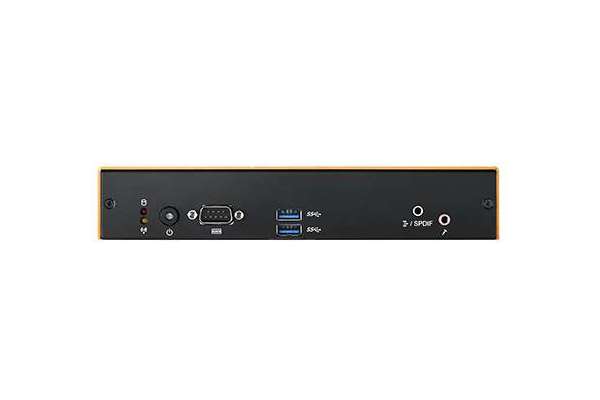

4K Digital Signage Player with Integrated nVIDIA GT Graphics for Independent Quad Displays Advantech DS-580

Price and avalability

Partnumber Description Price VAT incl Avalability
DS-580GB-S6A2E Компактний комп'ютер для візуалізації та відеовиведення Advantech DS-580, процессор E3950, Integrated NVIDIA® GeForce® GT 1030 graphics, 4xHDMI, barebone  38 855,5

Advantech DS-580 is a Ultra HD signage player powered by an Intel® Atom™ Processor E3950 with integrated NVIDIA® GeForce® GT 1030 graphic engine for Ultra HD. This GT 1030 graphic engine’s award-winning NVIDIA Pascal™ architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today’s most demanding applications. DS-580 not only has four HDMI ports to support each independent display in 4K @ 30HZ playback, it can also play single video content in 4K @ 60Hz playback via the HDMI 2.0 port. With dual LAN to enable interconnectivity and Mini PCIe/M.2 E-key/TPM 2.0 for extending applications. Its storage can be easily maintained via slide-in chassis design. DS-580 is the ideal solution for multi-display applications in stores, stadiums, hotel lobbies, restaurants, and other public spaces.

  • Integrated NVIDIA® GeForce® GT 1030 graphics for ultra HD playback
  • Powered by Intel® Atom™ Processor E3950
  • Quad independent HDMI outputs
  • Expandable via M.2 and miniPCIe
  • Reserve TPM 2.0 for security application
  • Content management software built-in
  • Decode for HEVC/WMV9/VP9
  • Low power & fanless signage player

Additional information

Processor System

CPU Intel® Atom™ Processor E3950
System Chipset Integrated in CPU
L2 Cache 2 MB
BIOS AMI uEFI 64-Mbit

Memory

Technology 2 x DDR3L 204-pin DIMM**
Max. Capacity 16 GB (up to 8 GB per SODIMM)

Graphic & Display Tech.

Graphic Engine
  • HDMI-1 and HDMI-2: NVIDIA® GeForce GT 1030
  • HDMI-3 and HDMI-4: Intel® HD Graphics 505
Graphic Memory 2GB GDDR5
Resolution
  • HDMI 2.0: up to 3840 x 2160 @ 60Hz
  • HDMI 1.4: up to 3840 x 2160 @ 30Hz (HDMI-4 supports CEC function)
Output 2 x HDMI 1.4, 2 x HDMI 2.0
Multi Display Up to 4 simultaneous outputs
Video Format
  • Decode for H.264,VC-1,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG,MPEG2(only for Yocto project Linux)
  • Encode for H.264,MVC,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG

Storage

SATA 1 x 2.5-inch SATA III HDD/SSD

Ethernet

Interface Gigabit LAN controller
Controller 1 x Intel I211-AT, 1 x Realtek 8111G

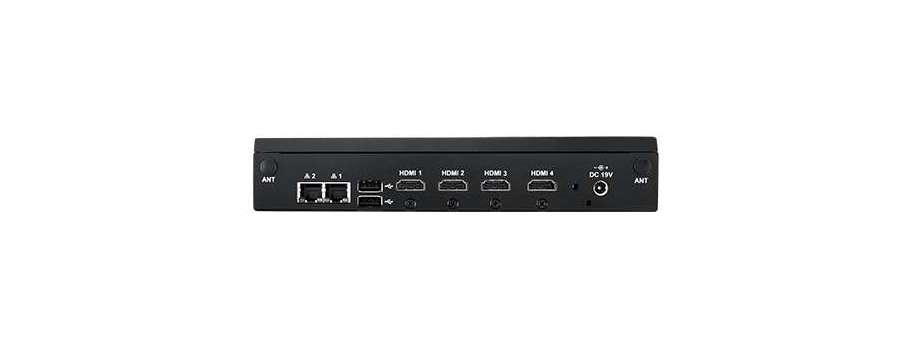

I/O Interface

LAN 2 (RJ-45)
USB 2.0 2
USB 3.0 2
Audio 1 x audio phone jack for Mic In, 1 x SPDIF/Line Out (supports jack sensing via OS settings)
Serial 1 x RS-232

Expansion

Mini PCIe 1 x Full Size MiniPCIe support mSATA; w/SIM holder, support WWAN module (USB interface)
M.2 * 1 x M.2 1630/2230 E-Key for wireless module

Trusted Platform Module

TPM 2.0 Option

Power Requirement

Power Consumption
  • Idle mode: 19 W (w/o expansion)
  • Full mode: 27 W (w/o expansion)
Input Voltage 19 V DC in (ATX/AT mode, default ATX)

Watchdog Timer

Output Interrupt, system reset
Interval Programmable using WISE-PaaS/EdgeSense

Physical Characteristics

Mounting Wall mount kits for LCD or plasma panels
Dimensions (W x H x D) 220 x 40 x 150 mm
Weight 1.7 kg

Environment

Operating Temperature
  • 0 ~ 40 °C (w/ HDD), with 0.7m/s air flow
  • 0 ~ 50 °C (w/ SSD) with 0.7m/s air flow
Relative Humidity 95% @ 40° C (non-condensing)

Software Development Kit

Operating System Supports Microsoft Windows 10
Linux By project

Certification

EMC CE, FCC Class B, BSMI
Safety UL, CCC, BSMI, CB (No RED certification)
