Intel® Celeron® J1900 Quad-Core Fanless Digital Signage Player Advantech DS-370

Price and avalability

Partnumber Description Price VAT incl Avalability
DS-370GB-U0A1E Компактный компьютер для визуализации и видеовывода COMPUTER SYSTEM, DS-370, J1900 w/o uSSD, barebone  27 705,2
DS-370GF-U0A1E Компактный компьютер для визуализации и видеовывода COMPUTER SYSTEM, DS-370, J1900 64G uSSD, 4G RAM  37 784,6
DS-370GQ-U0A1E Компактный компьютер для визуализации и видеовывода COMPUTER SYSTEM, DS-370, J1900 64G uSSD, 4G RAM, WES7E  43 832,0

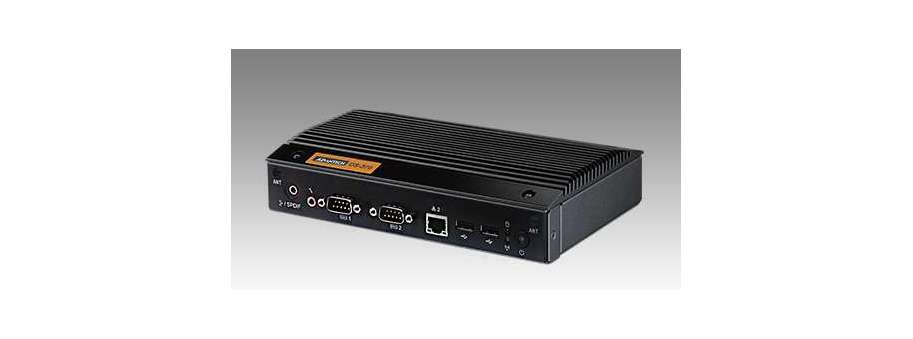

Advantech’s DS-370 is a low-power, fanless digital signage player that supports full HD dual displays. DS-370 is also equipped with a rich I/O interface for devices or wireless module connection and features a slide-in chassis design for easy maintenance. To enable easy signage network management, DS-370 comes bundled with dedicated signage software, WebAccess/IMM, and WISE-PaaS/RMM remote device management software, allowing the customer to manage digital signage networks installed in multiple locations with less effort at no extra cost. DS-370 provides the ideal cost-effective solution for single or dual-display applications in public spaces.

  • Intel® Celeron® J1900 quad-core, low-power, fanless SoC platform
  • Rich I/O interface for devices or wireless module connection
  • Supports full HD dual display
  • Mini PCIe interface for easy expansion (e.g., WLAN and 3G)
  • Built-in content management software for content editing, scheduling, and remote monitoring

It is an actual replacement for the product ARK-DS302

Additional information

Processor System

CPU Intel® Celeron® J1900 quad-core 2.0 GHz SoC processor
BIOS AMI uEFI 64-Mbit

Memory

Technology DDR3L 1333 MHz
Socket 2 x 204-pin SODIMM*
Max. Capacity 8 GB (up to 4 GB per SODIMM)

Display

Processor Graphics Intel® HD Graphics
Max. Resolution
  • VGA: 2048 x 1280 @ 60Hz
  • HDMI: 1920 x 1080 @ 60Hz
  • DP++: 1920 x 1080 @ 60Hz
Output Dual displays

Graphics Engine

  • DirectX® 11.1, , OGL 3.0, OCL 1.1, OGL ES 2.0
  • Encode: H.264, MPEG2/4, VC1, WMV9
  • Decode: H.264, MPEG2

Storage

SATA 1 x 2.5-inch SATA II HDD/SSD (7 mm height)
Others mSATA, via the mini PCIe slot**

Ethernet

Interface Gigabit LAN controller
Controller Intel I211

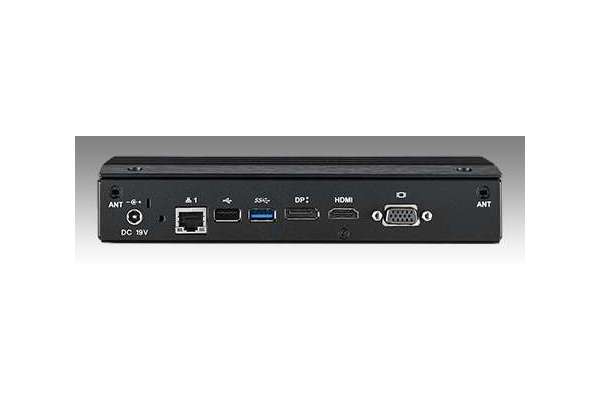

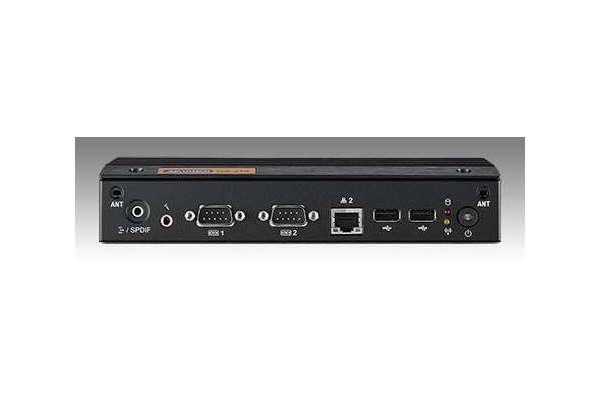

I/O Interface

HDMI 1
DP++ 1
VGA 1
LAN 2
USB 2.0 3
USB 3.0 1
Audio 1 x Mic In, 1 x SPDIF/ Line Out (supports jack sensing via OS settings)
Serial Ports 2 x RS-232
Mini PCIe 2 x Full-size mini PCIe
SIM Socket 1 x SIM card (optional)
Power Input 1 (DC-in jack)

Power Requirement

Management ACPI 3.0
Power Consumption
  • Idle mode: 4.39 W (w/o expansion)
  • Full mode: 10.85 W (w/o expansion)
Input Voltage 19 V DC in (ATX/AT mode, default ATX)
Others Supports boot on power restore and scheduled boot up functions

Watchdog Timer

Output Interrupt, system reset
Interval Programmable by SUSIAccess

Physical Characteristics

Mounting Supports VESA/DIN rail/wall mounting (optional)
Dimensions (W x D x H) 204 x 118.2 x 44.2 mm
Weight 1.275 kg

Environment

Operating Temperature 0 ~ 40 °C (32 ~ 104 °F) (w/HDD), 0 ~ 50 °C (32 ~ 122 °F) (w/SSD, Tc spec . need above 85°C)
Relative Humidity 95% @ 40 °C (non-condensing)
Random Vibration 1 Grms /5-500Hz /Operation
Shock 10G (11ms)/Operation, 30G (11ms)/Non-operation

Software Support

Microsoft Windows WES7E, Windows 7, WE8S, Windows 8
Linux Linux Fedora 20

Certification

EMC FCC Class B, CCC, BSMI
Safety UL, CB, CCC, BSMI (No RED certification)
