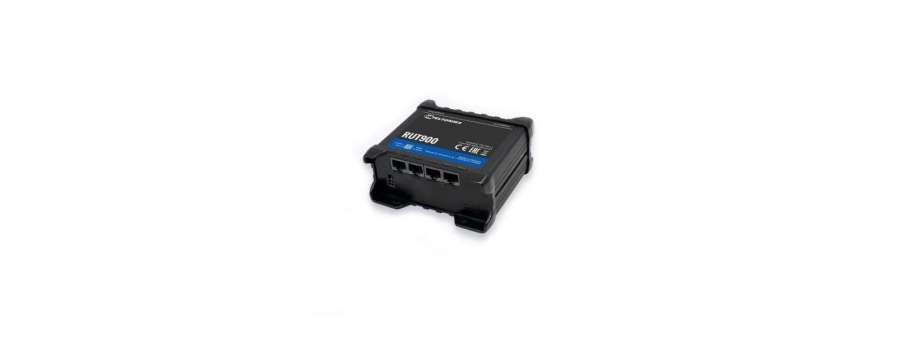

Router RUT900

Dual SIM 3G industrial cellular router Teltonika Router RUT900 with WiFi, Ethernet interfaces 3G – Up to 14.4 Mbps, 2G – Up to 236.8 kbps

Networks and Communications >> Cellular Routers & Gateways

Manufacturer: Teltonika

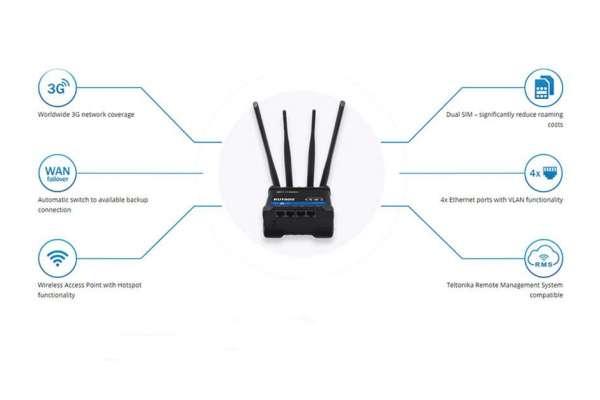

RUT900 is a professional industrial 3G WiFi router for IoT applications. This rugged and compact mobile router delivers high performance cellular communication in harsh environments and a wide operating temperature range. It is also compatible with RMS – Teltonika‘s remote management platform that is ready to deliver the true value of M2M and IoT networking applications.

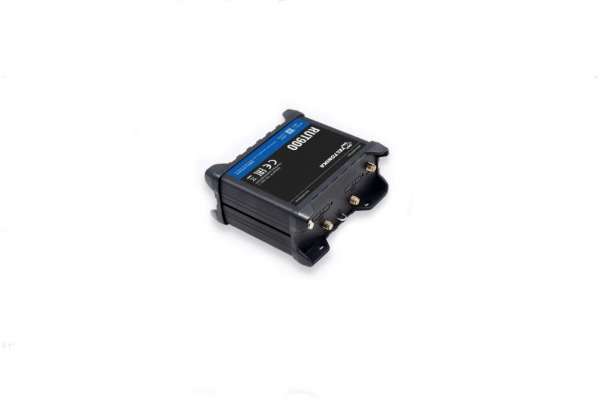

The router is equipped with four Ethernet ports, two external SIM holders, digital input/output and signal strength status LED indicators, while external SMA connectors make it possible to attach desired antennas. RUT900 is powered by RutOS - a unified operating system for all Teltonika routers, intended for the most demanding mobile networking applications. 3G/2G technology is proven, reliable, and widely deployed. RUT900 will ensure stable connectivity with 3G Dual-SIM failover and 2G fallback.

User Manual

Additional information

MOBILE
Mobile module 3G – Up to 14.4 Mbps, 2G – Up to 236.8 kbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, Bytes sent/received
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Band management Band lock, Used band status display
WIRELESS
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
WiFi security WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
SSID SSID stealth mode and access control based on MAC address
WiFi users Up to 100 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
WAN 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
WiFi security WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
VLAN Port based and tag based VLAN separation
Mobile quota control Set up custom data limits for both SIM cards
MODBUS TCP SLAVE
ID range 1-255
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
SYSTEM CHARACTERISTICS
CPU Atheros Wasp, MIPS 74Kc, 550 MHz
RAM 128 MB, DDR2
FLASH memory 16 MB SPI Flash
INPUT/OUTPUT
Input 1 x Digital non-isolated input (on 4 pin power connector)
Output 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)
Events SMS, EMAIL, RMS
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption < 2 W idle, < 7 W Max
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 1 Digital Input, 1 Digital Output on 4 pin power connector (available from HW revision 1600)
Status LEDs 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power 4 pin DC connector
Input/Output 2 programmable Inputs/Outputs
Antennas 2 x SMA for 3G, 2 x RP-SMA for WiFi antenna connectors
PHYSICAL SPECIFICATION
Casing material Aluminium housing, plastic panels
Dimensions 50 mm x 100 mm x 110 mm (H x W x D)
Weight 280 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
MTBF 270000 h
REGULATORY & TYPE APPROVALS
Regulatory CE/RED, EAC, RoHS, WEEE
SAFETY
Standards IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
EN 62311:2008
