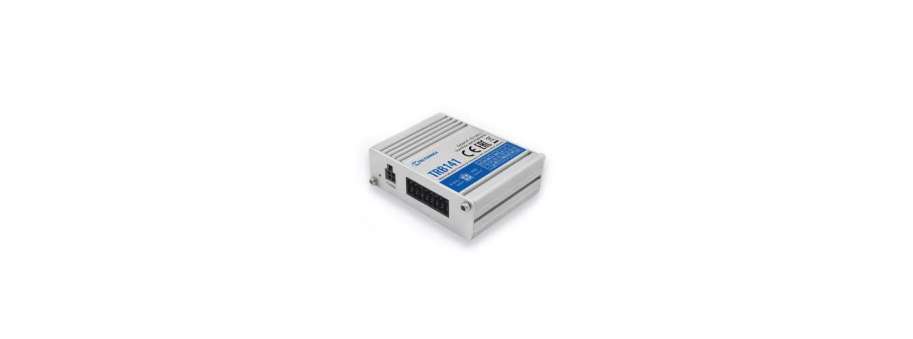

Gateway TRB141

Small Industrial LTE Cat 1 Gateway Teltonika TRB141 4G, (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Operating temperature -40 °C to 75 °C

Networks and Communications >> Cellular Routers & Gateways

Manufacturer: Teltonika

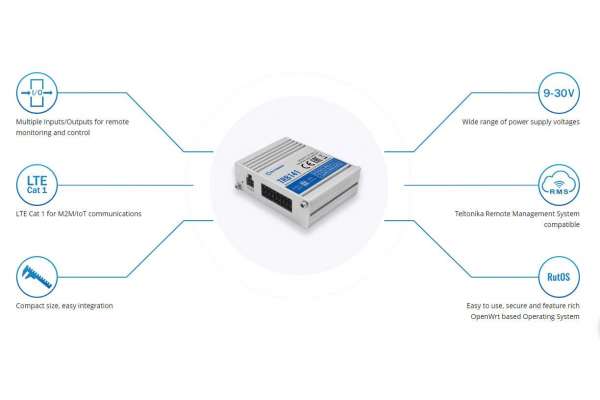

This Industrial LTE Cat 1 Gateway is equipped with several Input & Output options including Digital, Relay, Analog and Isolated. Paired with secure and functional RutOS, plenty of processing power and Teltonika Remote Management System this device offers unprecedented application flexibility to manage and control equipment remotely over LTE. TRB141 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall and FOTA support.

User Manual

Additional information



TRB141

MOBILE

Mobile module 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
SMS/Call SMS status, SMS configuration, Call utilities

NETWORK


Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT
Brige Direct connection (bridge) between mobile ISP and device on LAN
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation
DDNS Supported >25 service providers, others can be configured manually

SECURITY


Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN


OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server services can run simultaneously

MONITORING & MANAGEMENT


WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log
FOTA Firmware update from sever, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration
MQTT MQTT Broker, MQTT publisher
JSON-RPC Management API over HTTP/HTTPS
Modbus Modbus TCP status/control
RMS Teltonika Remote Management System (RMS)

SYSTEM CHARACTERISTICS


CPU ARM Cortex-A7 1.2 GHz CPU
RAM 128 MB (50 MB available for userspace)
FLASH memory 512 MB (70 MB available for userspace)

FIRMWARE / CONFIGURATION


WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices
Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMIZATION


Operating system RutOS (OpenLinux based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided

INPUT/OUTPUT


Input 2 x Digital inputs (configurable passive or active), 1 x Isolated input, 1 x Analog input (4-20 mA)
Output 2 x Relay outputs (latching and non latching)
Configurable I/O 2 x Configurable Digital Inputs/Outputs on 4 pin power connector
1-Wire 1
Events SMS status

POWER


Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max
Power consumption < 5 W

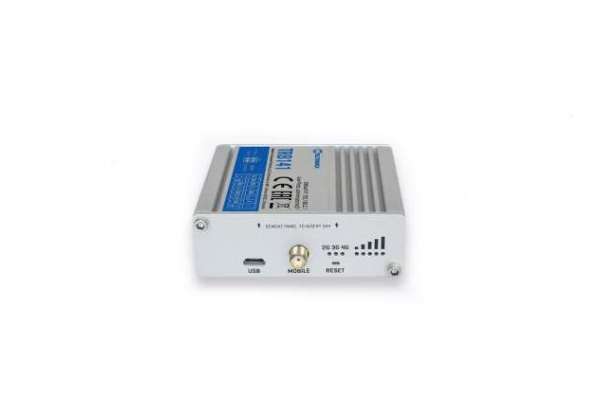

PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)


USB Virtual network interface via USB
I/Os 16 Inputs/Outputs pin connector, 2 Inputs/Outputs pin on 4 pin power connector
Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power 4 pin power connector with 2 x configurable Digital Inputs/Outputs
Anntenas 1 x SMA for LTE
Reset Restore factory settings button

PHYSICAL SPECIFICATIONS


Casing material Aluminum housing
Dimensions 60 mm x 70 mm x 18 mm (H x W x D)
Weight 136 g
Mounting options Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options

OPERATING ENVIRONMENT


Operating temperature -40 °C to 75 °C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30

REGULATORY & TYPE APPROVALS


Regulatory CE/RED, EAC, RoHS, WEEE

EMI


Standards Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0
ESD EN 61000-4-2:2009
RS EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge protection EN 61000-4-5:2014
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004

RF


Standards EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2

SAFETY


Standards IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
EN 50385:2017
EN 62232:2017
