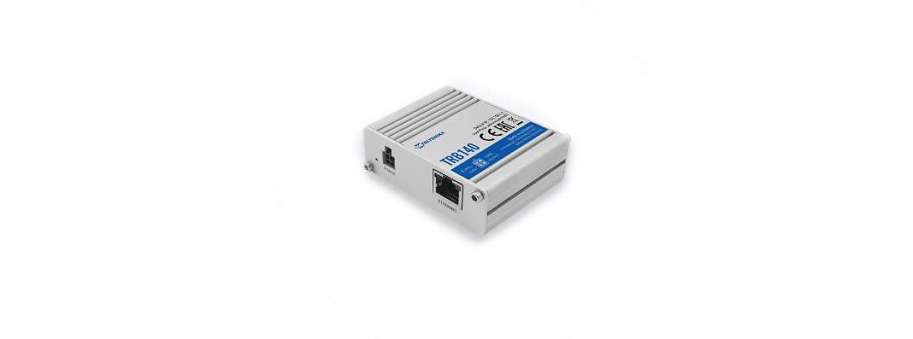

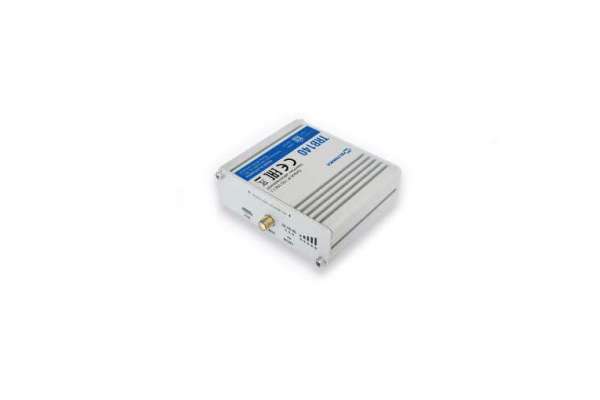

IoT gateway TRB140

Small and quick to deploy industrial Ethernet to 4G LTE IoT gateway Teltonika-TRB140

Networks and Communications >> Cellular Routers & Gateways

Manufacturer: Teltonika

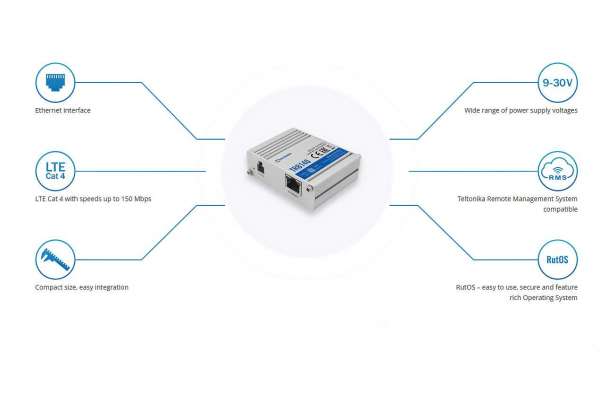

Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.

User Manual

Additional information

  TRB140

MOBILE


Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received
SMS/Call SMS status, SMS configuration, Call utilities

ETHERNET


LAN 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX

NETWORK


Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, MQTT, Wake on LAN (WOL)
Routing Static routing
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation
DDNS Supported >25 service providers, others can be configured manually

SYSTEM CHARACTERISTICS


CPU ARM Cortex-A7 1.2 GHz CPU
RAM 128 MB (50 MB available for userspace)
FLASH memory 512 MB (70 MB available for userspace)

INPUT/OUTPUT


Configurable I/O 2 x Configurable Digital Inputs/Outputs
Events SMS status

POWER


Connector 4 pin industrial DC power socket
Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max
Power consumption < 5 W

PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)


Ethernet 1 x RJ45 port, 10/100/1000 Mbps
I/Os 2 x Configurable Digital Inputs/Outputs on 4 pin power connector
USB Virtual network interface via USB
Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED

SIM

1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power 4 pin DC connector with 2 x configurable Digital Inputs/Outputs
Anntenas 1 x SMA for LTE
PHYSICAL SPECIFICATIONS
Casing material Aluminum housing
Dimensions 60 mm x 70 mm x 18 mm (H x W x D)
Weight 134 g
Mounting options Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options

OPERATING ENVIRONMENT


Operating temperature -40 °C to 75 °C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30

REGULATORY & TYPE APPROVALS


Regulatory CE/RED, EAC, RoHS, WEEE

SAFETY


Standards IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
EN 50385:2017
EN 62232:2017
