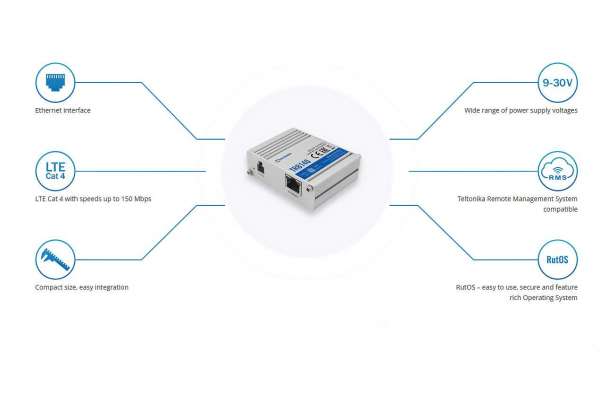

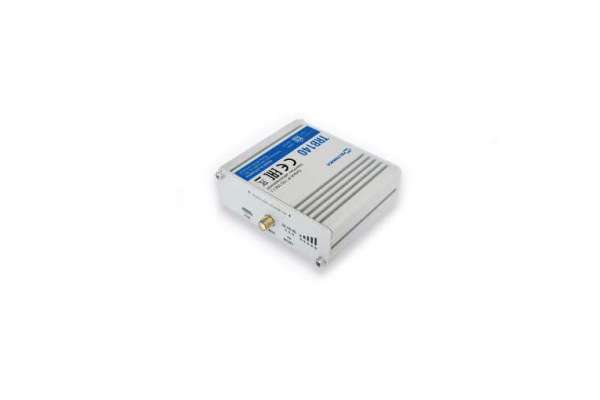

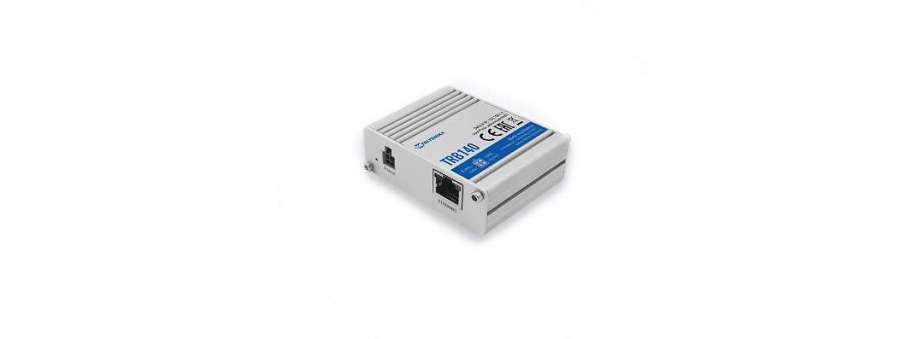

TRB140 |
MOBILE
|
|
Mobile module |
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
Bridge |
Direct connection (bridge) between mobile ISP and device on LAN |
Status |
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
SMS/Call |
SMS status, SMS configuration, Call utilities |
ETHERNET
|
|
LAN |
1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX |
NETWORK
|
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, MQTT, Wake on LAN (WOL) |
Routing |
Static routing |
Connection monitoring |
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget |
Firewall |
Port forwards, traffic rules, custom rules |
DHCP |
Static and dynamic IP allocation |
DDNS |
Supported >25 service providers, others can be configured manually |
SYSTEM CHARACTERISTICS
|
|
CPU |
ARM Cortex-A7 1.2 GHz CPU |
RAM |
128 MB (50 MB available for userspace) |
FLASH memory |
512 MB (70 MB available for userspace) |
INPUT/OUTPUT
|
|
Configurable I/O |
2 x Configurable Digital Inputs/Outputs |
Events |
SMS status |
POWER
|
|
Connector |
4 pin industrial DC power socket |
Input voltage range |
9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max |
Power consumption |
< 5 W |
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
|
|
Ethernet |
1 x RJ45 port, 10/100/1000 Mbps |
I/Os |
2 x Configurable Digital Inputs/Outputs on 4 pin power connector |
USB |
Virtual network interface via USB |
Status LEDs |
3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED |
SIM
|
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
Power |
4 pin DC connector with 2 x configurable Digital Inputs/Outputs |
Anntenas |
1 x SMA for LTE |
PHYSICAL SPECIFICATIONS |
|
Casing material |
Aluminum housing |
Dimensions |
60 mm x 70 mm x 18 mm (H x W x D) |
Weight |
134 g |
Mounting options |
Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options |
OPERATING ENVIRONMENT
|
|
Operating temperature |
-40 °C to 75 °C |
Operating humidity |
10 % to 90 % non-condensing |
Ingress Protection Rating |
IP30 |
REGULATORY & TYPE APPROVALS
|
|
Regulatory |
CE/RED, EAC, RoHS, WEEE |
SAFETY
|
|
Standards |
IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
EN 50385:2017
EN 62232:2017 |
