14/13/12th Gen Intel® Core™ Series Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket Cincoze GM-1100

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
GM-1100-R10 Високопродуктивний компактний комп'ютер Cincoze GM-1100-R10, 14/13/12th Gen Intel® Xeon®/Core™ Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket  81 574,5

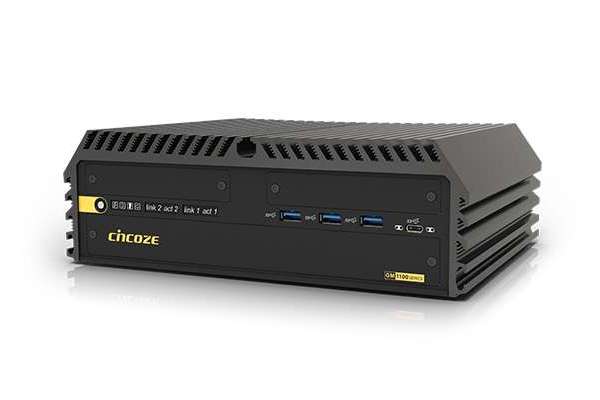

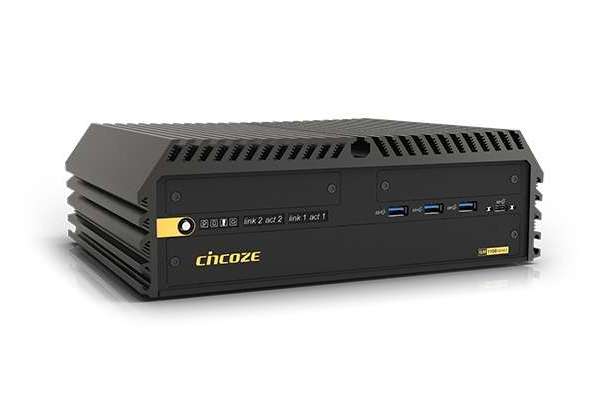

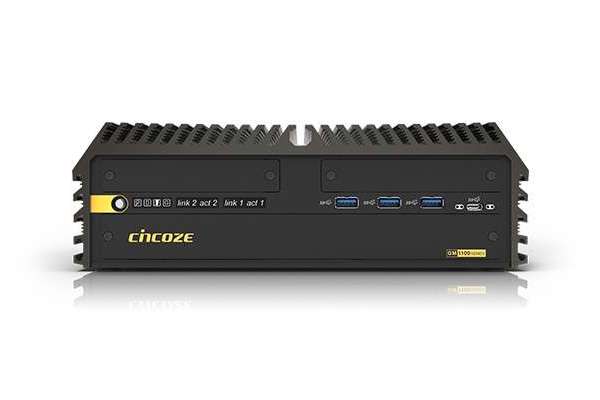

The GM-1100 is a compact and rugged embedded MXM GPU computer for high-performance computing needs. It combines powerful computing and graphics processing capabilities with highly flexible expansion, making it ideal for edge AI applications with limited installation space.

  • Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
  • Supports 1x MXM 3.1 Type A/B form factor GPU module expansion
  • 1x 2.5GbE LAN, 1x 20Gbps USB3.2 Gen2 x2, Type C Connector
  • 1x M.2 Key M Type 2280 Socket for PCIe Gen4x4 NVMe Storage
  • 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
  • 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
  • 2 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
  • Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
  • Wide operating temperature -40°C to 70°C

Additional information

System
Processor

14th Generation Intel® Raptor Lake-S Refresh Series CPU:

- Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W

- Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W

- Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W

- Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W

- Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W

- Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W

- Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W

- Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W

- Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W

- Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W

- Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W

- Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W

- Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W

- Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W

- Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W

- Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W

- Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W

- Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W

- Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W

13th Generation Intel® Raptor Lake-S Series CPU:

- Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W

- Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W

- Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W

- Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 65W

- Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W

- Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W

- Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W

12th Generation Intel® Alder Lake-S Series CPU:

- Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W

- Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W

- Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W

- Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W

- Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W

- Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W

- Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W

- Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W

- Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W

- Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W

- Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W

- Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
Chipset Intel R680E Chipset
Memory 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB
BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
  • Integrated Intel® UHD Graphics 730: Core™ i3
  • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Maximum Display Output Supports Triple Independent Display
DP 1x DisplayPort Connector (4096 x 2304@60Hz) *Verified maximum resolution: 3840 x 2160@60Hz
HDMI 1x HDMI Connector (4096 x 2160@30Hz) *Verified maximum resolution: 3840 x 2160@30Hz
VGA 1x VGA Connector (1920 x 1200 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

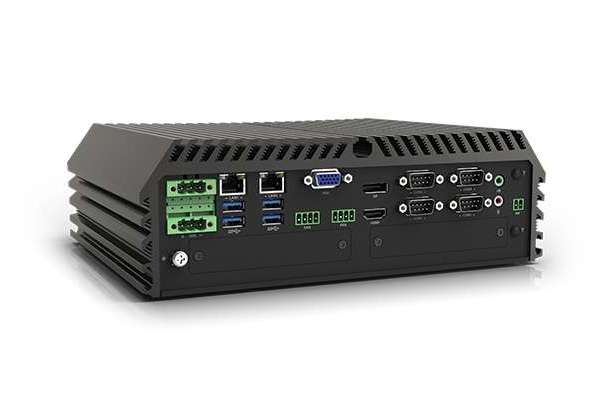

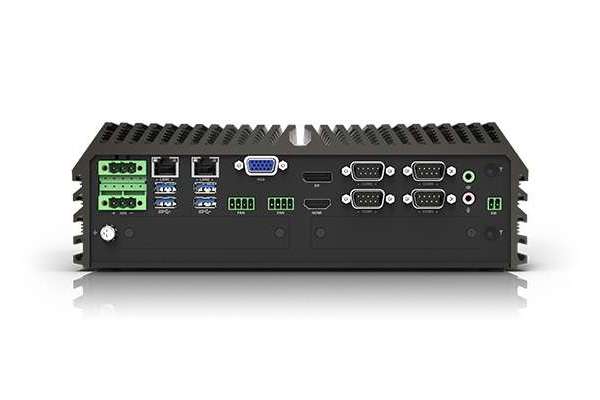

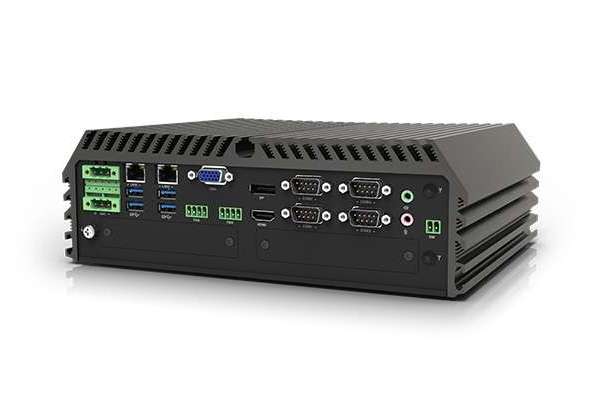

I/O
LAN
  • 1x 2.5GbE LAN, RJ45 - Intel® I225
  • 1x 1GbE LAN, RJ45 - Intel® I219
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 1x 20Gbps USB3.2 Gen2 x2, Type C
  • 3x 10Gbps USB3.2 Gen2 x1, Type A
  • 4x 5Gbps USB3.2 Gen1 x1, Type A

Storage
SSD/HDD 2x 2.5" Front Accessible SATA HDD/SSD Bay Supporting Hot Swap Function (SATA 3.0) (Up to 15
M.2 SSD
  • 1x M.2 Key M Type 2280 Socket, Support PCIe Gen4 x4 NVMe SSD or SATA SSD (SATA3.0)
  • 1x M.2 SSD Shared by M.2 Key B Type 3052 Socket, Support PCIe Gen 3x2 NVMe SSD or SATA SSD (SATA3.0)
  • 2x M.2 SSD Shared by M.2 Key B Type 2242 Socket, Support PCIe Gen 4x2 NVMe SSD or SATA SSD (SATA3.0)
RAID Support RAID 0/1/5/10

Expansion
MXM Socket 1x MXM Carrier Board Socket for MXM GPU Module Expansion
M.2 E Key Socket 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
M.2 B Key Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion
  • 2x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
SIM Socket 2x SIM Socket
CMI (Combined Multiple I/O) Interface
  • 1x High Speed CMI Interface for optional CMI Module Expansion
  • 1x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1x CFM IGN Interface for optional CFM-IGN Module Expansion

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input
  • 9-48 VDC, Single Power Source Connector Type: 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A
  • Power input voltage from 9V to 23V must use dual power connectors, power input voltage from 24V to 48V can use single power connector
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption
  • 35W CPU: 187.51W
  • 65W CPU: 258.96W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing.
Inrush Current (Peak)
  • 35W CPU: 5.467 A@24V
  • 65W CPU: 5.725 A@24V

Physical
Dimension ( W x D x H ) 260 x 200 x 85 mm
Weight Information 4.73 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / Side / DIN-RAIL / VESA Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu Desktop 22.04 LTS

Environment
Operating Temperature
  • 35W TDP Processor: -40°C to 70°C
  • 65W TDP Processor with external FAN: -40°C to 60°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * For GM-1100 + MXM GPU Module operating temperature, please refer to the last page – Operating Temperature Matrix Table for more information * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock MIL-STD-810H
Vibration MIL-STD-810H
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN 50155 (EN 50121-3-2 Only)
  • E-mark
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN 61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.)
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

Safety

UL, cUL , CB, IEC, EN 62368-1
