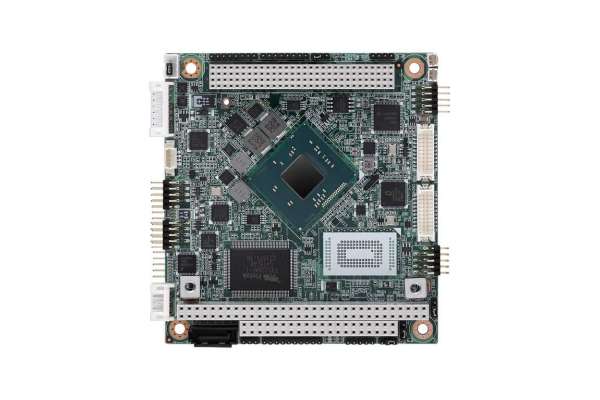

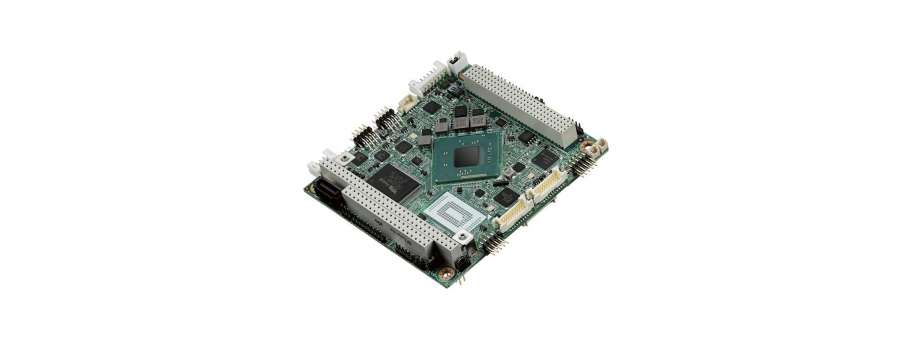

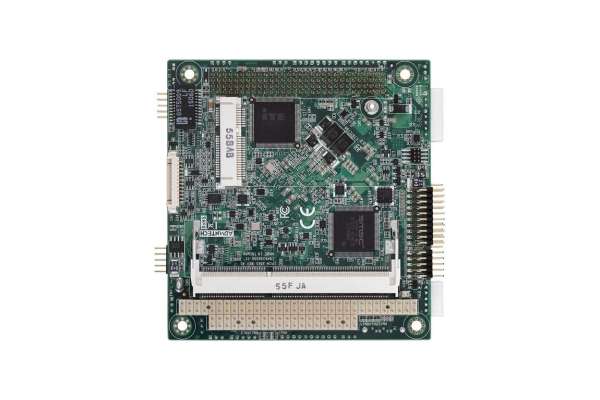

Intel® Atom™ E3825 / E3845 & Celeron® N2930, PC/104-Plus SBC PC Advantech PCM-3365

Price and avalability

Partnumber Description Price VAT incl Avalability
PCM-3365E-S3A2 Процесорний модуль, що вбудовується Advantech PCM-3365E E3825 A2 PC104+/VGA+LVDS/6USB/3COM  20 394,9
PCM-3365EW-S3A2 Процесорний модуль, що вбудовується - Advantech PCM-3365EW E3825 BT-I E3825 A2 PC104+/VGA+LVDS/6USD/3COM -40~85  22 716,0
PCM-3365EW-S9A2 Процесорний модуль, що вбудовується - Advantech PCM-3365EW, BT-I E3845 A2 PC104+/VGA+LVDS/6USD/3COM -40~85C  25 571,3
PCM-3365N-S8A2 Процесорний модуль, що вбудовується - Advantech PCM-3365N, BT N2930 A2 PC104+/VGA+LVDS/6USD/3COM  22 230,9

Analogue of model PCM-3353 (Not produced)

  • Intel® Atom™ E3825/E3845 & Celeron® N2930
  • DDR3L-1066/1333MHz SODIMM up to 8GB
  • 3 independent display: VGA+LVDS+HDMI/DVI
  • Support PC/104-Plus expansion
  • Rich I/O: 1 GbE, 3 COM, SATA, 6 USB2.0, full-size mSATA/miniPCIE
  • Supports SUSIAccess and Embedded Software APIs

Additional information

Processor System

CPU Intel Celeron N2930 Intel Atom E3825 Intel Atom E3845
Base Frequency 1.83 GHz (Quad-Core) 1.33 GHz (Dual-Core) 1.91 GHz (Quad-Core)
Max Turbo Frequency 2.16 GHz - -
L2 Cache 2MB 1MB 2MB
BIOS AMI UEFI BIOS at 64 Mb AMI UEFI BIOS at 64 Mb AMI UEFI BIOS at 64 Mb

Memory

Technology DDR3L 1333 MHz DDR3L 1066 MHz DDR3L 1333 MHz
Max. Capacity 8 GB 8 GB 8 GB
Socket 1 x 204-pin SODIMM 1 x 204-pin SODIMM 1 x 204-pin SODIMM

Display

Controller Intel Gen7 graphic engine Intel Gen7 graphic engine Intel Gen7 graphic engine
Processor Graphics
  • DirectX11, OpenGL3.2, OpenCL1.1
  • Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2
  • DirectX11, OpenGL3.2, OpenCL1.1
  • Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2
  • DirectX11, OpenGL3.2, OpenCL1.1
  • Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2
VGA 2560 x 1600 at 60Hz 2560 x 1600 at 60Hz 2560 x 1600 at 60Hz
LVDS 24-bit LVDS up to WUXGA 1920 x 1200 at 60Hz Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz 24-bit LVDS up to WUXGA 1920 x 1200 at 60Hz Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz 24-bit LVDS up to WUXGA 1920 x 1200 at 60Hz Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz
HDMI / DVI HDMI 1.4a for HD video playback, 1080P at 60Hz, up to 1920 x 1080 DVI 1.0 (DVI-D), up to 1920 x 1080 (Cable is optional) HDMI 1.4a for HD video playback, 1080P at 60Hz, up to 1920 x 1080 DVI 1.0 (DVI-D), up to 1920 x 1080 (Cable is optional) HDMI 1.4a for HD video playback, 1080P at 60Hz, up to 1920 x 1080 DVI 1.0 (DVI-D), up to 1920 x 1080 (Cable is optional)
Mulit-Display VGA + LVDS, VGA + HDMI/DVI, HDMI/DVI + LVDS VGA + LVDS, VGA + HDMI/DVI, HDMI/DVI + LVDS VGA + LVDS, VGA + HDMI/DVI, HDMI/DVI + LVDS

Ethernet

Speed 10/100/1000Mbps 10/100/1000Mbps 10/100/1000Mbps
Controller Intel I210 Intel I210 Intel I210
Connector Pin Header Pin Header Pin Header

WatchDog Timer

WatchDog Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

SATA 1, up to 3Gb/s (300 MB/s) 1, up to 3Gb/s (300 MB/s) 1, up to 3Gb/s (300 MB/s)
mSATA 1 x Full-size (SATA signal shared with Onboard flash) 1 x Full-size (SATA signal shared with Onboard flash) 1 x Full-size (SATA signal shared with Onboard flash)
Onboard Flash* 16GB/32GB/64GB 16GB/32GB/64GB 16GB/32GB/64GB

Internal I/O

Serial 1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV) 1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV) 1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV)
USB2.0 6 6 6
I²C 1 (Shared with SMBus pin) 1 (Shared with SMBus pin) 1 (Shared with SMBus pin)
SMBus 1 1 1
GPIO 8-bit 8-bit 8-bit

Expansion

Mini PCIe 0 (PCIe is supported by request) 0 (PCIe is supported by request) 0 (PCIe is supported by request)
PC/104 PC/104 Expansion (ISA Bus), DMA is not supported and Memory address has limitation* PC/104 Expansion (ISA Bus), DMA is not supported and Memory address has limitation* PC/104 Expansion (ISA Bus), DMA is not supported and Memory address has limitation*
PCI-104 PCI-104 Expansion (PCI Bus) PCI-104 Expansion (PCI Bus) PCI-104 Expansion (PCI Bus)

Power

Power Type AT/ATX Support PC104 plus power module* AT/ATX Support PC104 plus power module* AT/ATX Support PC104 plus power module*
Power Supply Voltage 5V ± 5% 5V ± 5% 5V ± 5%
Power Consumption (Typical)
  • E3825: 0.877A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.472W)
  • E3845: 0.923@+5V, 0.007A@+12V, 0.004A@+5VSB (4.719W)
  • N2930: 0.866A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.417W)
  • E3825: 0.877A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.472W)
  • E3845: 0.923@+5V, 0.007A@+12V, 0.004A@+5VSB (4.719W)
  • N2930: 0.866A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.417W)
  • E3825: 0.877A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.472W)
  • E3845: 0.923@+5V, 0.007A@+12V, 0.004A@+5VSB (4.719W)
  • N2930: 0.866A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.417W)
Power Consumption (Max, test in HCT)
  • E3825: 1.107A@+5V, 0.008A@+12V, 0.008A@+5VSB (5.671W)
  • E3845: 1.493@+5V, 0.008A@+12V, 0.025A@+5VSB (7.686W)
  • N2930: 1.331A@+5V, 0.009A@+12V, 0.016A@+5VSB (6.843W)
  • E3825: 1.107A@+5V, 0.008A@+12V, 0.008A@+5VSB (5.671W)
  • E3845: 1.493@+5V, 0.008A@+12V, 0.025A@+5VSB (7.686W)
  • N2930: 1.331A@+5V, 0.009A@+12V, 0.016A@+5VSB (6.843W)
  • E3825: 1.107A@+5V, 0.008A@+12V, 0.008A@+5VSB (5.671W)
  • E3845: 1.493@+5V, 0.008A@+12V, 0.025A@+5VSB (7.686W)
  • N2930: 1.331A@+5V, 0.009A@+12V, 0.016A@+5VSB (6.843W)
Power Management ACPI ACPI ACPI
Battery Lithium 3 V / 210 mAH Lithium 3 V / 210 mAH Lithium 3 V / 210 mAH

Environment

Operational 0 ~ 60° C with 0.7m/s air flow (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C with 0.7m/s air flow (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C with 0.7m/s air flow (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical Characteristics

Dimensions (L x W) 96 x 90 mm (3.8" x 3.5") 96 x 90 mm (3.8" x 3.5") 96 x 90 mm (3.8" x 3.5")
Weight 0.735 kg (1.62 lb) (with heat-sink) 0.735 kg (1.62 lb) (with heat-sink) 0.735 kg (1.62 lb) (with heat-sink)
Height Top side: 14.4mm (N2930, E3825 standard), 19.4mm (E3845 & E3825 extend temp.); Bottom side:7.8mm, PCB: 1.6mm Top side: 14.4mm (N2930, E3825 standard), 19.4mm (E3845 & E3825 extend temp.); Bottom side:7.8mm, PCB: 1.6mm Top side: 14.4mm (N2930, E3825 standard), 19.4mm (E3845 & E3825 extend temp.); Bottom side:7.8mm, PCB: 1.6mm
