Single Board Computers PCA-6029

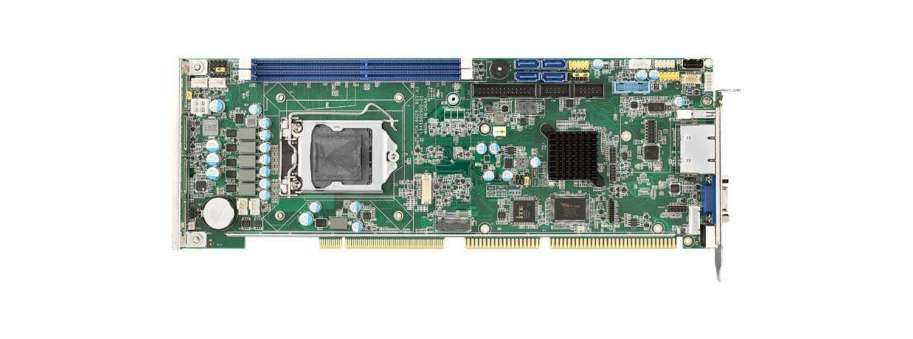

LGA1151 6th and 7th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron System Host Board Advantech with VGA/DVI/DP and Dual GbE LAN PCA-6029

System Components >> Single Board Computers

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Supports Intel® Core™ i7/i5/i3 LGA1151 processors with H110 chipset
  • Dual Channel (Non-ECC) DDR4 2133/2400 up to 64 GB
  • Supports USB 3.0, SATA3.0
  • Dual display with VGA and DVI-D/DP (optional)
  • Supports Advantech LPC modules
  • Supports SUSIAccess and embedded software APIs

Price and avalability

Partnumber Description Price VAT incl Avalability
PCA-6029G2-00A1 Процесорна плата Advantech LGA1151 6th and 7th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron System Host Board with VGA/DVI/DP and Dual GbE LAN  16 714,1

Additional information

Processor System


Socket 1151
Chipset Intel H110
BIOS AMI 128Mbit SPI Flash

Bus


ISA HISA (ISA High Driver)
PCI 32 bit/ 33 MHz PCI

Memory


Technology Dual-channel (non-ECC) U-DIMM DDR4 2133/2400 (6th Gen. CPU up to 2133, 7th Gen. CPU up to 2400)
MHz Max. Capacity 64 GB (32 GB per DIMM)
Socket 2 x DDR4 288-pin DIMM

Graphics


Controller Chipset integrated with Intel® HD Graphics
VRAM Shared system memory is subject to OS
Resolution
  • Dual display of VGA+DVI or VGA+DP
  • DVI-D supports resolutions of up to 1920 x 1200 pixel @ 60 MHz
  • Display Port supports resolutions of up to 4096 x 2304 @ 60 MHz
  • VGA supports resolutions of up to 2048 x 1152 pixel @ 60 Hz

Ethernet


Interface 10/100/1000 Mbps
Controller
  • LAN 1: Intel® I219-V
  • LAN 2: Intel® I211-AT
Connector with LED RJ45 x 2
SATA SATA 3.0 x 4 (600 MB/sec)

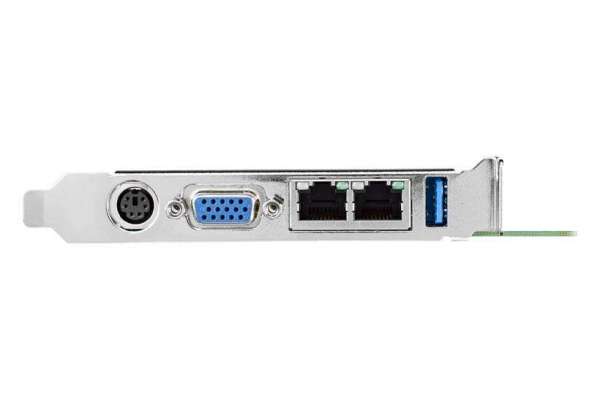

Rear I/O


USB3.0 1
Ethernet 2
VGA 1
PS/2 1 (PS/2 Y cable supports 1 x keyboard and 1 x mouse)

Internal Connector


USB Up to 7 x USB2.0 (6 x Pin header, 1x Type A)
SATA 4
DVI-D/DP 1 (Pin header)
COM 2
Paralle 1
IrDA 1
GPIO 8-bit

Watchdog Timer


Output System reset
Interval Programmable 1-255 sec

Miscellaneous


Audio Intel High Definition audio interface (required an audio extension module P/N: PCA-AUDIO-HDB1E)

Power Requirement


Test Environment Intel® Core™ i7-6700 CPU@ 3.40GHz 65W, 2x 32G 2Rx8 DDR4 3200U

Physical


Dimensions (L x H) 338 x 122 mm (13.3" x 4.8")
