EN50155 Unmanaged PoE Ethernet Switch Advantech EKI-9508E 24-48 or 72-110 VDC
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EKI-9508E-H-AE | EN50155 M12 8FE Unmanaged Sw, 72~110VDC | 32 888,6 | |
| EKI-9508E-L-AE | EN50155 M12 8FE Unmanaged Sw, 24~48VDC | 32 888,6 | |
| EKI-9508E-PH-AE | EN50155 M12 8FE PoE Unmanaged Sw, 72~110VDC | 35 593,5 | |
| EKI-9508E-PL-AE | EN50155 M12 8FE PoE Unmanaged Sw, 24~48VDC | 37 818,1 |

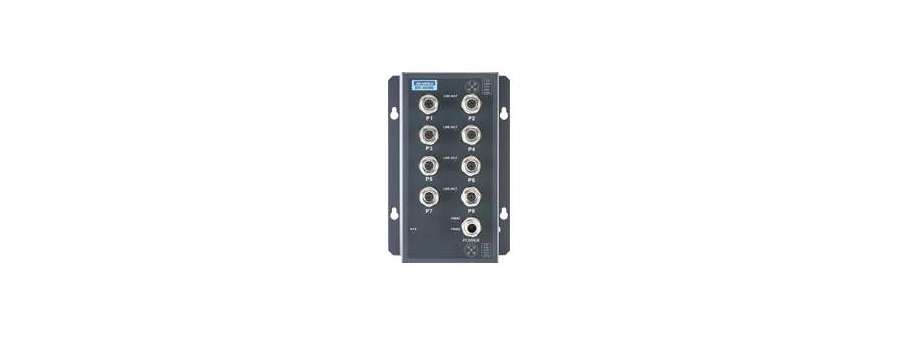

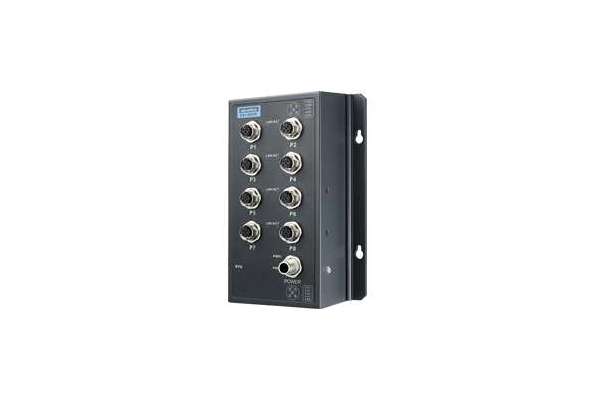

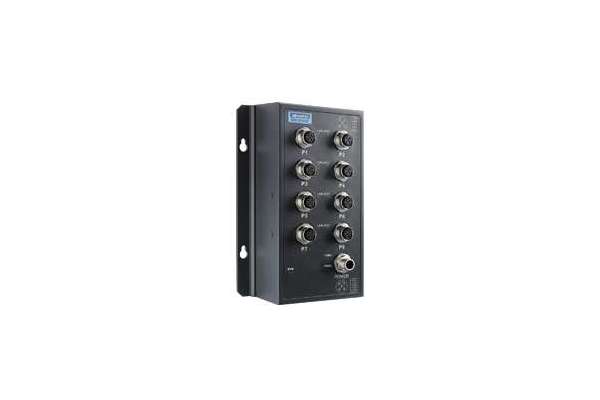

The EKI-9500 series switch is designed for railway application with rugged and high EMC performance, being suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, and thus to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9508E-H/L is an Ethernet switch that provides 8 x Fast Ethernet M12 D-code port interface for all kinds of Ethernet connection. EKI-9508E-H/L features a "slim" design which can be easy deployed with its slender size and make the network deployment easier in crowded carriage/ cabinet.
- Complies with EN50155 & EN50121-3-2
- Operating temperature range -40 ~ 70°C
- M12 connector with rugged housing
- 8 x M12 D-coded 10/100Mbps ports
| Model | PoE, 10/100 MbpsM12 D-Coded |
10/100 Mbps M12 D-coded |
Operating Voltage | Input Power |
|
EKI-9508E-L |
8 | 16.8~60 VDC | 24/48 VDC | |
|
EKI-9508E-H |
8 | 50.4~137.5 VDC | 72/96/110 VDC | |
|
EKI-9508E-PL |
8 | 16.8~60 VDC | 24/48 VDC | |
|
EKI-9508E-PH |
8 | 50.4~137.5 VDC | 72/96/110 VDC |
Additional information
Certification |
EKI-9508E |
| EMC |
CE, EN55032/24, EMC DIRECTIVE 2014/30/EU |
| EMI | CISPR 32, FCC Part 15 Subpart B Class A |
| EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3) |
| Vertical Market | EN50155, EN50121-3-2, EN61000-6-2 |
| Freefall | IEC 60068-2-31 |
| Shock | IEC 61373 |
| Vibration | IEC 61373 |
Environment |
|
| Humidity (Operating Range) | 5 ~ 95% |
| Relative Humidity | 5 ~ 95% |
| Temperature (Operating Range) | -40 ~ 70°C (-40 ~ 158°F) |
| Temperature (Storage Range) | - 40 ~ 85° C (-40 ~185° F) |
Ethernet Communication |
|
| Ethernet Standard | IEEE 802.3 , 802.3u , 802.3ab , 802.3x |
| RJ45 Port Connector Type | M12 (4pin D-Coded) for 10/100Mbps port |
| RJ45 Transmission Speed | 10/100Base-T(X) |
| RJ45 Port Number |
8 |
| Bypass Function (Pair) | 0 |
| RJ45 Transmission Distance | NA |
| Fiber Port Connector Type | NA |
| Fiber Port Interface | NA |
| Fiber Port Optical Mode | NA |
| Fiber Port Number | NA |
| Fiber Port Supports VDSL | NA |
| Fiber Transmission Distance | NA |
| Fiber Transmission Speed | NA |
| RJ45/SFP Combo Port Number | NA |
| RJ45/SFP Combo Port Speed | NA |
Mechanism |
|
|
Dimensions (W x H x D) |
122.5 x 179.4 x 71.8 mm |
| Enclosure (Plastic) | NA |
| Enclosure (Metal) | Metal shell |
| IP Rating | IP40 |
| Mounting (DIN-rail) | By additional bracket |
| Mounting (Panel) | NA |
| Mounting (Pole Mount) | NA |
| Mounting (Rack Mount) | NA |
| Mounting (Stack) | NA |
| Mounting (Wall) | Wall Mount |
| Weight | 1.3Kg |
MTBF |
|
| Time | NA |
| Method | Telcordia, GM |
PoE Information(for EKI-9508E-PL and EKI-9508E-PH only) |
EKI-9508E-PL and EKI-9508E-PH |
Power |
|
| Power Connector Type | M12 (4 pin A-coded) |
| Power Consumption | 5W |
| Power Input (AC) | NA |
| Power Input (Battery) | NA |
| Power Input (PoE) | NA |
| Power Operating Current | 0.09A @ 110VDC (system) |
| Redundant Dual Inputs | V |
Protection |
|
| Reverse Polarity | Present |
| Overload Current | Present |
Switch Properties |
|
| Jumbo Frame | 9,216 bytes |
| MAC Table Size | 8K |
| Packet Buffer Size | 1.5MB |
| Switch Fabric Speed | 1.6Gbps |
Warranty |
|
| Warranty Period | 5 years |
