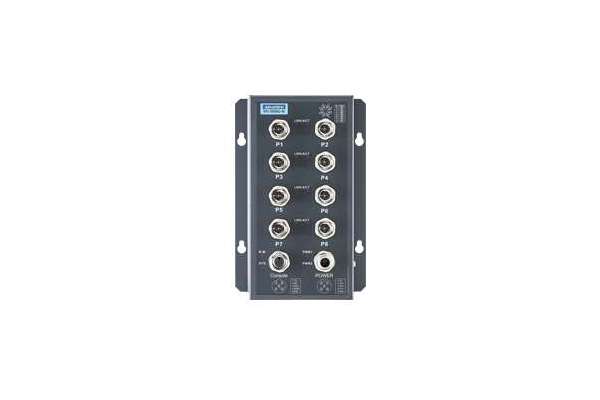

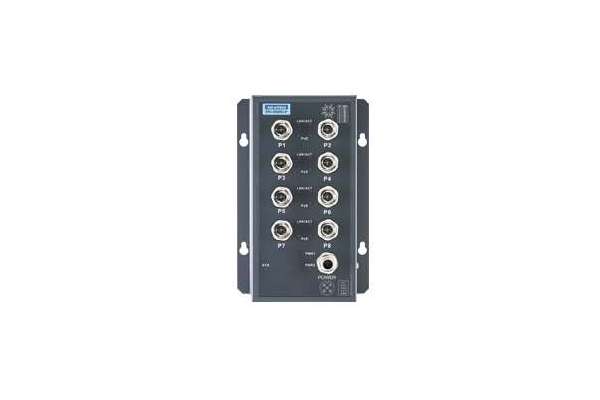

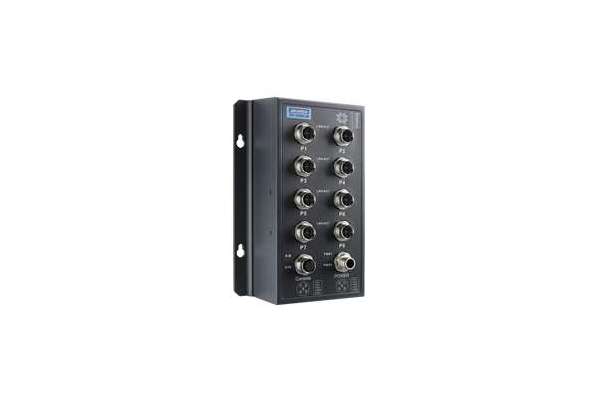

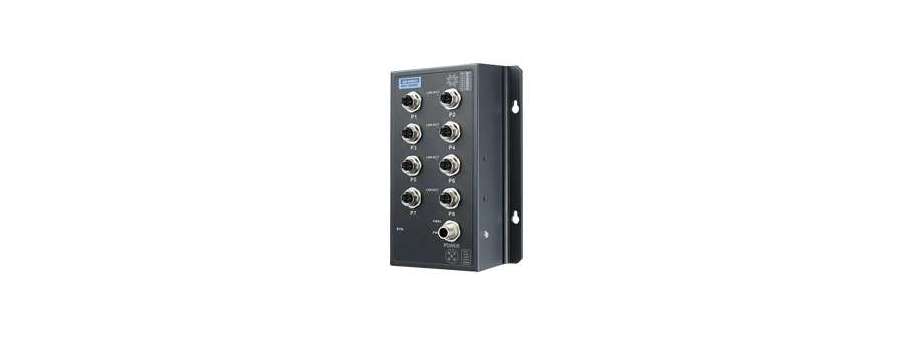

EN50155 Unmanaged Ethernet Switch EKI-9508G

EN50155 Unmanaged PoE Ethernet Switch EKI-9508G by Advantech with 8GE, 24-48 VDC

Networks and Communications >> EN50155 Ethernet switches

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The EKI-9500 series switch is designed for railway application with rugged and high EMC performance and is suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, so as to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9508G-PH & EKI-9508G-PL are PoE Ethernet switches that provide 8 x Gigabit Ethernet M12 X-code Port interface with IEEE802.3af/at PoE(Power Over Ethernet) function. The PoE ports can provide up to 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). EKI-9508G-PH/ PL features “slim” designs which can be easy deployed with its slender size and make the network deployment easier in crowded carriage/ cabinet.

  • 8 x M12 X-coded 10/100/1000Mbps PoE ports
  • Complies with EN50155 & EN50121-3-2
  • Operating temperature range -40 ~ 70°C
  • Operating Voltage: 16.8~60 VDC
  • 8-port PoE support IEEE802.3 at/af
  • M12 connector with rugged housing

EKI-9508G-PH-AE Layer 2 Switch, 8 x M12 Gigabit Ethernet with PoE/PoE+, 72/96/110 VDC dual power input, operating voltage: 50.4~137.5 VDC

EKI-9508G-PL-AE Layer 2 Switch, 8 x M12 Gigabit Ethernet with PoE/PoE+, 24/48 VDC dual power input, operating voltage: 16.8~60 VDC

EKI-9508G-H-AE Layer 2 Switch, 8 x M12 Gigabit Ethernet, 72/96/110 VDC dual power input, operating voltage: 50.4~137.5 VDC

EKI-9508G-L-AE Layer 2 Switch, 8 x M12 Gigabit Ethernet, 24/48 VDC dual power input, operating voltage: 16.8~60 VDC

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9508G-PH-AE EN50155 M12 8GE PoE Unmanaged Sw, 72~110VDC  26 945,5
EKI-9508G-PL-AE EN50155 M12 8GE PoE Unmanaged Sw, 24~48VDC  26 945,5
EKI-9508G-L-AE EN50155 M12 8GE Unmanaged Sw, 24~48VDC  22 812,5
EKI-9508G-H-AE EN50155 M12 8GE Unmanaged Sw, 72~110VDC  22 812,5

Additional information

Specifications

EKI-9508G-PH

Interface


I/O Port 8 x 10/100/1000 BASE-T M12 X-Coded
Power Connector M12 A-coded

Physical


Enclosure Metal
Protection Class IP40
 Installation Wall mount
Dimensions (W x D x H) 122.5 x 179.4 x 71.8 mm
Weight 1.3kg

LED Display


System LEDs PWR1, PWR2, SYS
Port LED Data, PoE

Environment


Operating Temperature -40 ~ 70°C
Storage Temperature -40 ~ 85°C
Ambient Relative Humidity 10 ~ 95% (non-condensing)

Power


Power Consumption ~5 W (system)
PoE Power Budget
  • EKI-9508G-PH: 90 Watts
  • EKI-9508G-PL: 60 Watts
Power Input
  • EKI-9508G-PH: 72/96/110 VDC
  • EKI-9508G-PL: 24/48 VDC
Operating Voltage
  • EKI-9508G-PH:50.4~137.5 VDC
  • EKI-9508G-PL: 16.8~60 VDC
  • Dual inputs
  • Supports Overload Current Protection Supports Reverse Polarity Protection

Certification


EMI
  • FCC Part 15 Subpart B Class A
  • CE EN55032 (CISPR)
  • EN55024 Class A
EMS
  • EN61000-4-2 (ESD)
  • EN61000-4-3 (RS)
  • EN61000-4-4 (EFT)
  • EN61000-4-5 (surge)
  • EN61000-4-6 (CS)
Shock IEC 61373
Freefall IEC 60068-2-32
Vibration IEC 61373
Rail Traffic EN 50155; EN50121-3-2

L2 Features


L2 MAC Address 8K
Jumbo Frame 9 KB
