EN50155 Managed Ethernet Switch EKI-9508G by Advantech with EN50155 & EN50121-3-2 and operating temperature range -40 ~ 70°C
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EKI-9508G-ML-AE | EN50155 M12 8GE Managed Sw, 24~48VDC | 59 508,2 | |
| EKI-9508G-MH-AE | EN50155 M12 8GE Managed Sw, 72~110VDC | 56 007,7 | |
| EKI-9508G-MPL-AE | EN50155 M12 8GE PoE Managed Sw, 24~48VDC | 70 846,3 | |
| EKI-9508G-MPH-AE | EN50155 M12 8GE PoE Managed Sw, 72~110VDC | 70 846,3 |

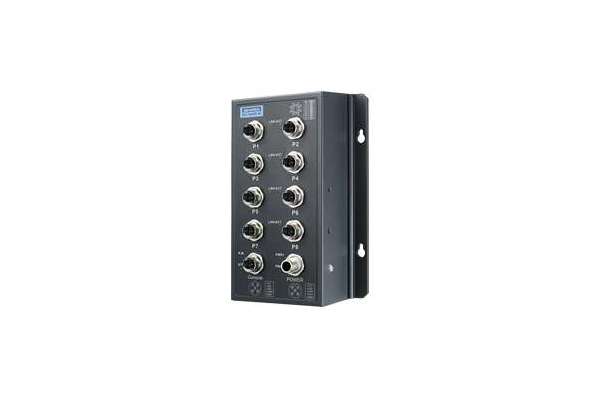

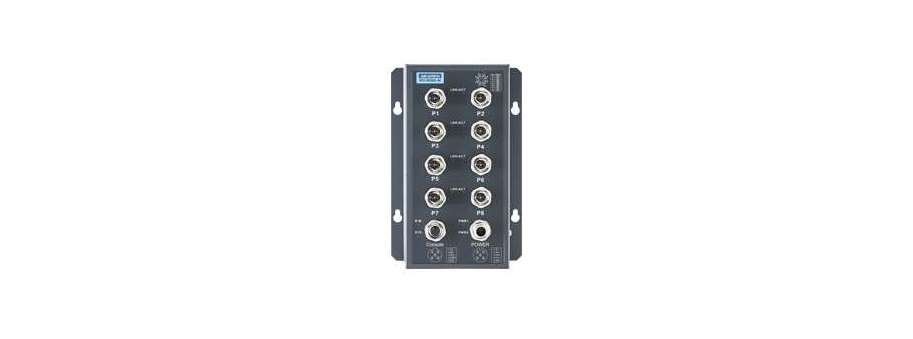

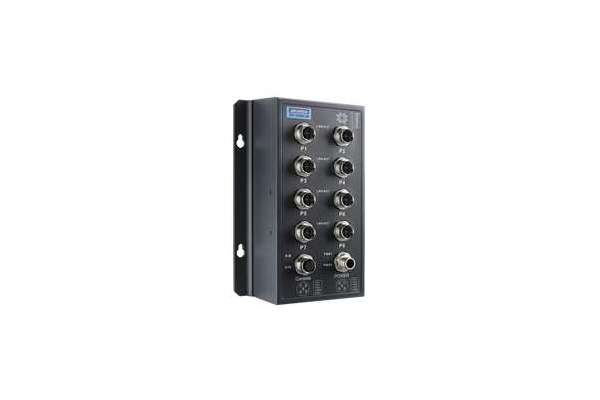

The EKI-9500 series railway Ethernet switch is designed for railway applications with rugged and high EMC performance and is suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity so as to guarantee reliable operation against environmental disturbances such as vibration and shock on train.
EKI-9508G-MH - EN50155 Managed Ethernet Switch with 8GE, 72-110 VDC
EKI-9508G-ML - EN50155 Managed Ethernet Switch with 8GE, 24-48 VDC
EKI-9508G-MPL - EN50155 Managed PoE Ethernet Switch with 8GE, 24-48 VDC
EKI-9508G-MPH - EN50155 Managed PoE Ethernet Switch with 8GE, 72-110 VDC
Additional information
| Specifications | EKI-9508G |
Interface |
|
| I/O Port | 8 x 10/100/1000 BASE-T M12 X-Coded |
| Console Port | M12 A-coded |
| Power Connector | M12 A-coded |
Physical |
|
| Enclosure | Metal |
| Protection Class | IP40 |
| Installation | Wall mount |
| Dimensions (W x D x H) | 122.5 x 179.4 x 71.8 mm |
| Weight | 1.3kg |
LED Display |
|
| System LEDs | PWR1, PWR2, R.M., SYS |
Environment |
|
| Operating Temperature | -40 ~ 70°C |
| Storage Temperature | -40 ~ 85°C |
| Ambient Relative Humidity | 10 ~ 95% (non-condensing) |
Power |
|
| Power Consumption | ~5 W (system) |
| Power Input |
EKI-9508G-MH: 72/96/110 VDC EKI-9508G-ML: 24/48 VDC EKI-9508G-MPH: 72/96/110 VDC EKI-9508G-MPL: 24/48 VDC |
| Operating Voltage |
EKI-9508G-MH: 50.4~137.5 VDC EKI-9508G-ML: 16.8~60 VDC EKI-9508G-MPH: 50.4~137.5 VDC EKI-9508G-MPL: 16.8~60 VDC Dual inputs Supports Overload Current Protection Supports Reverse Polarity Protection |
Certification |
|
| EMI |
FCC Part 15 Subpart B Class A CE EN55032 (CISPR) |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (surge), EN61000-4-6 (CS) |
| Shock | IEC 61373 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 61373 |
| Rail Traffic | EN 50155; EN50121-3-2 |
L2 Features |
|
| L2 MAC Address | 8K |
| Jumbo Frame | 9 KB |
| VLAN Group | 4K (VLAN ID 1~4094) |
| VLAN | MAC-based VLAN, Protocol-based VLAN, IP subnet-based VLAN, port-based VLAN, Q-in-Q (VLAN stacking), GVRP |
| Port Mirroring | Per port, multi-source port |
| IP Multicast | IGMP snooping v1/v2/v3, MLD snooping, IGMP immediate leave |
| Storm Control | Broadcast, multicast, unknown unicast |
| Spanning Tree | IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro |
