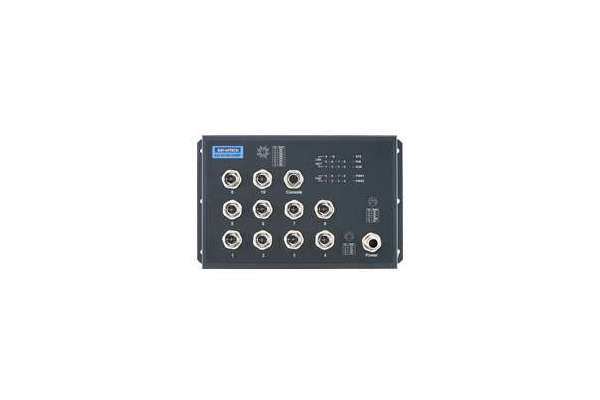

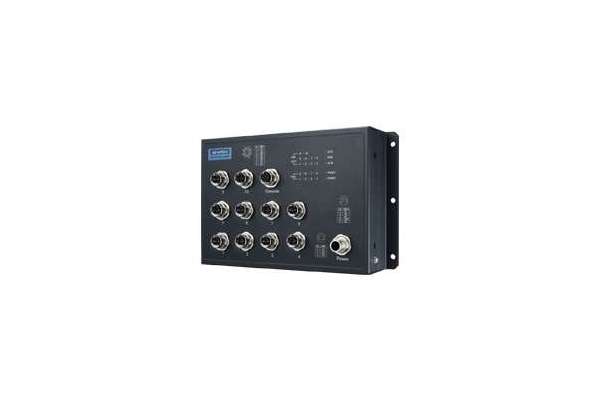

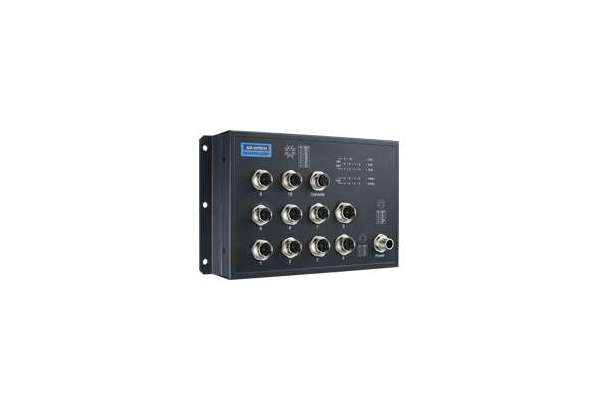

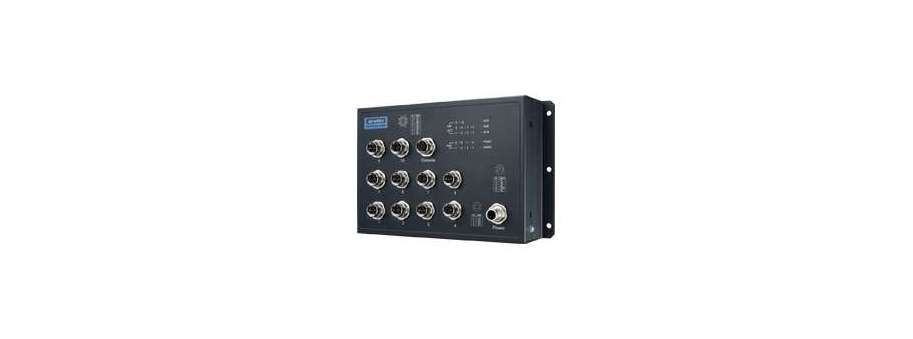

EN50155 Ethernet Switch EKI-9510G

EN50155 Managed PoE Ethernet Switch Advantech with 10xGE(2bypass), 72-110/ 24-48 VDC EKI-9510G

Networks and Communications >> EN50155 Ethernet switches

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The EKI-9500 series switch is designed for railway application with rugged and high EMC performance, being suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, and thus to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9510G-2GMH & EKI-9510G-2GML are managed Ethernet switches that provide 8 x Gigabit Ethernet M12 X-coded ports. Each of them also provides 2 x Gigabit Ethernet M12 X-code ports with Bypass function to increase the reliability of the network. EKI-9510G-2GMH/ ML features a "flat" design which can be easy deployed with its slender size and make network deployment easier in crowded carriage/ cabinet.

EKI-9510G-2GMPH - EN 50155 10-port Managed PoE M12 Full Giga Ethernet Switch 72/96/110 VDC

EKI-9510G-2GMPL - EN 50155 10-port Managed PoE M12 Full Giga Ethernet Switch 24/48 VDC

  • Complies with EN50155
  • 8 x M12 X-Coded 10/100/1000Mbps PoE ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
  • Power Input EKI-9510G-2GMPH: 72/96/110 VDC EKI-9510G-2GMPL: 24/48 VDC
  • Operating Voltage EKI-9510G-2GMPH: 50.4~137.5 VDC EKI-9510G-2GMPL: 16.8~60 VDC
  • X-Ring Pro supports rapid and predictable convergence
  • 8-port PoE support IEEE802.3 at/af
  • M12 connector with IP40 protection

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9510G-2GMPH-AE Управляемый промышленный коммутатор Advantech EN50155 M12 8GE PoE + 2G Managed SW, 72~110VDC  53 683,1
EKI-9510G-2GMPL-AE EN50155 M12 8GE PoE + 2G Managed SW, 24~48VDC  53 683,1
EKI-9510G-2GMPH-AE Управляемый промышленный коммутатор Advantech EN50155 M12 8GE PoE + 2G Managed SW, 72~110VDC  53 683,1
EKI-9510G-2GMPL-AE EN50155 M12 8GE PoE + 2G Managed SW, 24~48VDC  53 683,1

Additional information

Specifications



Interface


I/O Port 8 x M12 X-Coded 10/100/1000Mbps PoE ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
Console port M12 A-Coded
Power Connector M12 A-Coded

Physical


Enclosure Aluminum Shell
Protection Class IP 40
Installation Wall Mount
Dimensions (W x D x H) 216 x 132 x 59.3 mm
Weight 1.5kg

LED Display


System LEDs PWR1, PWR2, SYS, R.M., Alarm
Port LED Data, PoE

Environment


Operating Temperature -40 ~ 70°C (-40 ~ 158°F)
Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity 10~ 95% (non-condensing)

Power


Power Consumption 10 Watts
PoE Power Budget
  • EKI-9510G-2GMPH: 120 Watts
  • EKI-9510G-2GMPL: 60 Watts
Power Input
  • EKI-9510G-2GMPH: 72/96/110 VDC
  • EKI-9510G-2GMPL: 24/48 VDC
Operating Voltage
  • EKI-9510G-2GMPH: 50.4~137.5 VDC
  • EKI-9510G-2GMPL: 16.8~60 VDC
  • Dual inputs Supports Overload Current Protection
  • Supports Reverse Polarity Protection

Certification


EMI
  • FCC Part 15 Subpart B Class A
  • CE EN55032 (CISPR)
  • EN55024 Class A
EMS
  • EN61000-4-2 (ESD); EN61000-4-3 (RS);
  • EN61000-4-4 (EFT); EN61000-4-5 (Surge);
  • EN61000-4-6 (CS)
Shock IEC 61373
Freefall IEC 60068-2-32
Vibration IEC 61373
Certificate EN 50155; EN50121-3-2
