Managed Ethernet Switch EKI-9510G-2GML

EN50155 Managed Ethernet Switch Advantech with 10xGE(2bypass), 24-48 or 72-110 VDC

Networks and Communications >> EN50155 Ethernet switches

 Price and avalability

Manufacturer: Advantech Co., Ltd.

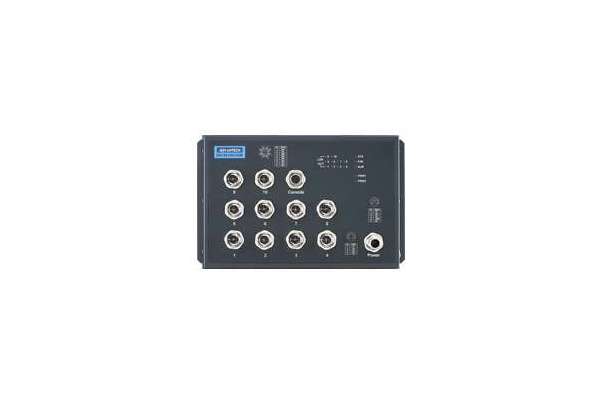

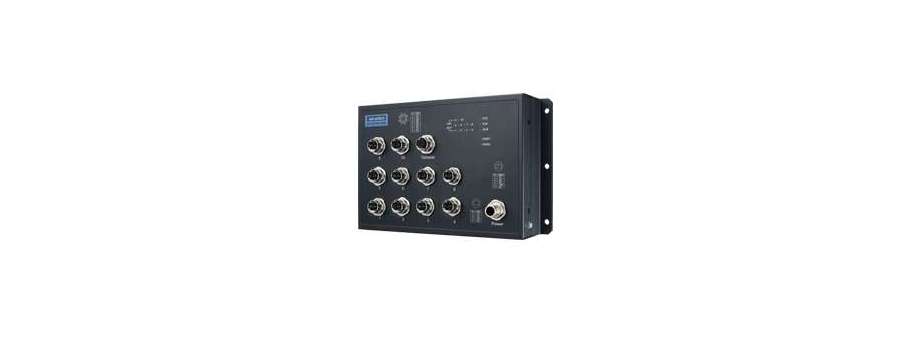

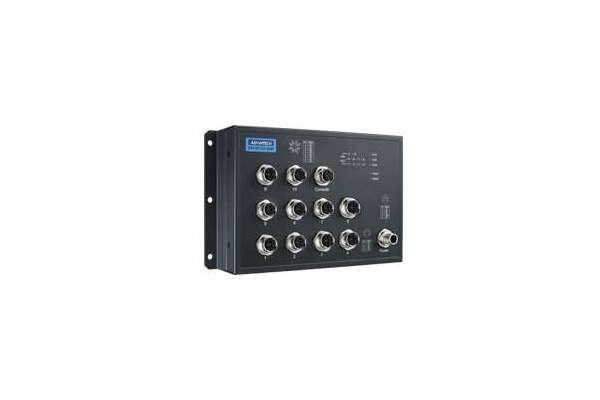

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9510G-2GMH & EKI-9510G-2GML is a Managed Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface. It also provides 2 x Gigabit Ethernet M12 X-code interface with Bypass function, to increase the reliability of the network. EKI-9510G-2GMH/ ML features a "flat" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet

Complies with EN50155

  • 8 x M12 X-Coded 10/100/1000Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
  • Power Input EKI-9510G-2GMH:72/96/110 VDC EKI-9510G-2GML:24/48 VDC
  • Operating Voltage EKI-9510G-2GMH: 50.4~137.5 VDC EKI-9510G-2GML: 16.8~60 VDC
  • X-Ring Pro supports rapid and predictable convergence
  • M12 connector with IP40 protection

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9510G-2GMH-AE EN50155 M12 8GE + 2G Managed SW, 72~110VDC  46 181,5
EKI-9510G-2GML-AE EN50155 M12 8GE + 2G Managed SW, 24~48VDC  46 181,5

Additional information

Interface


I/O Port 8 x 10/100/1000Mbps M12 X-Coded + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
Console port M12 A-Coded
Power Connector M12 A-Coded

Physical


Enclosure Aluminum Shell
Protection Class IP 40
Installation Wall Mount
Dimensions (W x D x H) 216 x 132 x 59.3 mm
Weight 1.5kg

LED Display


System LEDs PWR1, PWR2, SYS, R.M., Alarm

Environment


Operating Temperature -40 ~ 70°C (-40 ~ 158°F)
Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity 10~ 95% (non-condensing)

Power


Power Consumption  10 Watts
Power Input
  • EKI-9510G-2GMH: 72/96/110 VDC
  • EKI-9510G-2GML: 24/48 VDC
Operating Voltage
  • EKI-9510G-2GMH: 50.4~137.5 VDC
  • EKI-9510G-2GML: 16.8~60 VDC
  • Dual inputs Supports Overload Current Protection
  • Supports Reverse Polarity Protection

Certification


EMI
  • FCC Part 15 Subpart B Class A
  • CE EN55032 (CISPR)
  • EN55024 Class A
EMS
  • EN61000-4-2 (ESD);
  • EN61000-4-3 (RS);
  • EN61000-4-4 (EFT);
  • EN61000-4-5 (Surge);
  • EN61000-4-6 (CS)
Shock IEC 61373
Freefall IEC 60068-2-32
Vibration IEC 61373
Certificate EN 50155; EN50121-3-2

L2 Features


L2 MAC Address 8K
Jumbo Frame 9KB
VLAN Group 256 (VLAN ID 1~4093)
VLAN 802.1Q VLAN, GVRP
Port Mirroring Per port, Multi-source port
IP Multicast IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave
Storm Control Broadcast, Multicast, Unknown unicast
Redundancy Protocol IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro

QoS


Priority Queue Scheduling WRR (Weighted Round Robin), SP (Strict Priority)
Class of Service IEEE 802.1p based CoS, IP TOS, DSCP based CoS
Rate Limiting Egress Rate limit
Link Aggregation IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking
