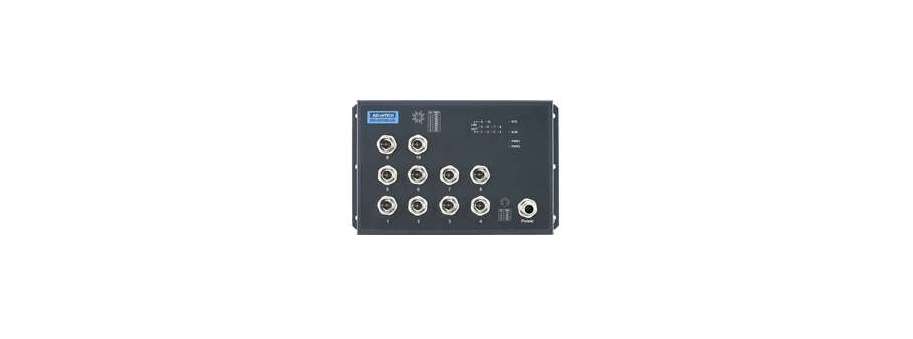

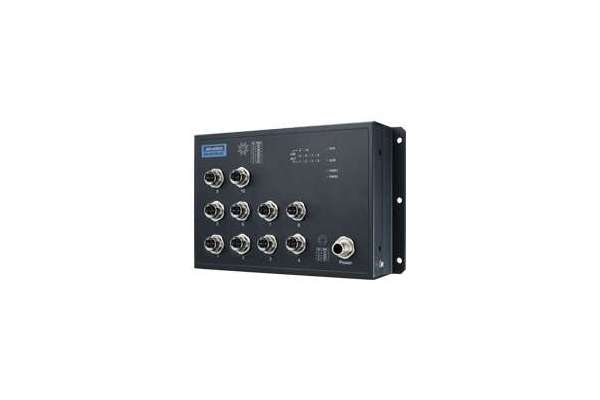

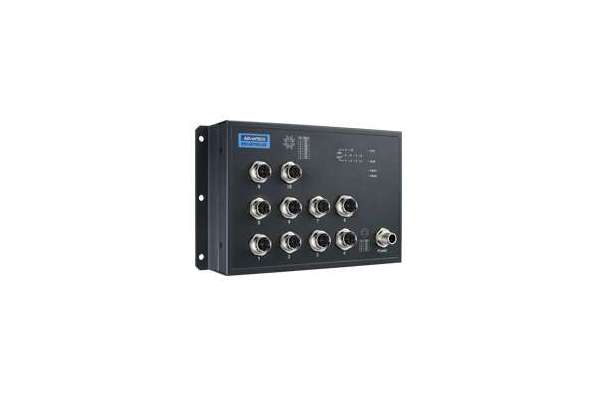

Unmanaged M12 Ethernet Switch EKI-9510G-2GH

EN 50155 10-port Unmanaged M12 Ethernet Switch Advantech 72/96/110 or 24/48 VDC EKI-9510G-2GH

Networks and Communications >> EN50155 Ethernet switches

 Price and avalability

Manufacturer: Advantech Co., Ltd.

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9510G-2GH & EKI-9510G-2GL is a Unmanaged Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface. It also provides 2 x Gigabit Ethernet M12 X-code interface with Bypass function, to increase the reliability of the network. EKI-9510G-2GH/ L features a "flat" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.

  • Complies with EN50155
  • 8 x M12 X-Coded 10/100/1000Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
  • Power Input EKI-9510G-2GH: 72/96/110 VDC EKI-9510G-2GL: 24/48 VDC
  • Operating Voltage EKI-9510G-2GH: 50.4~137.5 VDC EKI-9510G-2GL: 16.8~60 VDC
  • M12 connector with IP40 protection

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9510G-2GH-AE EN50155 M12 8Giga + 2GigaBP Unm SW, 72~110VDC  28 365,8
EKI-9510G-2GL-AE EN50155 M12 8GigaPoE + 2GigaBP Unm SW, 24~48VDC  28 365,8

Additional information

Interface


 I/O Port 8 x 10/100/1000Mbps M12 X-Coded + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
Console port M12 A-Coded
Power Connector M12 A-Coded

Physical


Enclosure Aluminum Shell
Protection Class IP 40
Installation Wall Mount
Dimensions (W x D x H) 216 x 132 x 59.3 mm
Weight 1.5kg

LED Display


System LEDs PWR1, PWR2, SYS, Alarm

Environment


Operating Temperature -40 ~ 70°C
Storage Temperature -40 ~ 85°C
Ambient Relative Humidity 10 ~ 95% (non-condensing)

Power


Power Consumption 10 Watts
Power Input EKI-9510G-2GH: 72/96/110 VDC EKI-9510G-2GL: 24/48 VDC
Operating Voltage
  • EKI-9510G-2GH: 50.4~137.5 VDC
  • EKI-9510G-2GL: 16.8~60 VDC
  • Dual inputs Supports Overload Current Protection
  • Supports Reverse Polarity Protection

Certification


EMI
  • FCC Part 15 Subpart B Class A
  • CE EN55032 (CISPR)
  •  EN55024 Class A
EMS EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS)
Shock IEC 61373
Freefall IEC 60068-2-32
Vibration IEC 61373
Rail Traffic EN 50155; EN50121-3-2

L2 Features


L2 MAC Address 8K
Jumbo Frame 9KB
