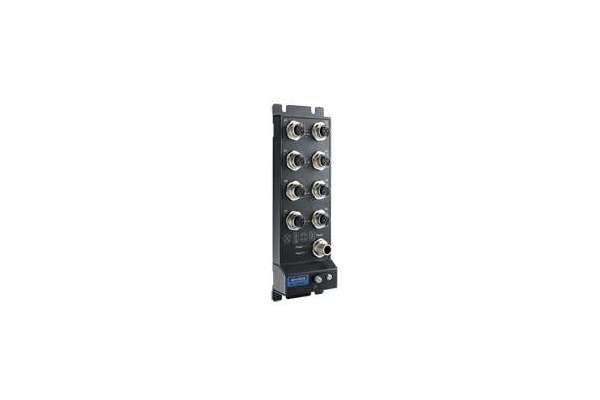

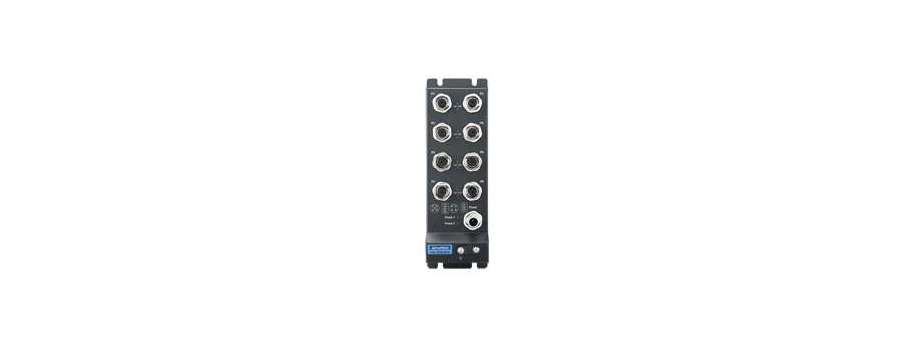

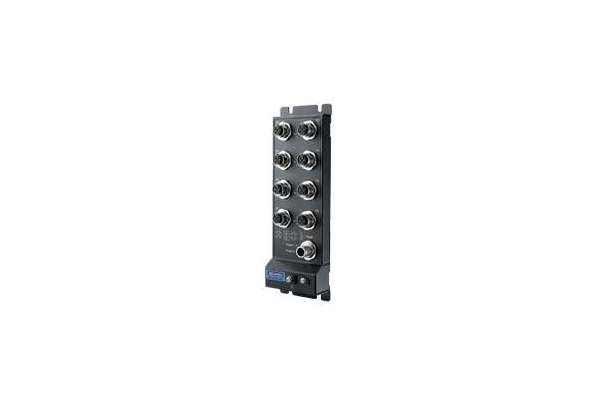

8FE M12 Unmanaged Ethernet Switch, IP67 Rating Advantech EKI-2528I-M12
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EKI-2528I-M12-AE | Некерований комутатор Advantech EKI-2528, 8-ports M12 Unmanaged Ind. Ethernet Switch, IP67 | 20 153,5 | Доступно |
The EKI-2528I-M12 unmanaged switches are designed for application in harsh environments. First of all, the switches provide 8 Fast Ethernet ports with M12 D-coded connectors which can connect the cables tightly against vibration and shock. Second, the switches support 10/100 Mbps, auto MDI/MDI X. Third, when supporting wide power input ranging from 12 to 48V with Polarity Reverse Protection and Overload Current Resettable Fuse, the EKI-2528I-M12 switches are robust and economical solutions for your network. Finally, as the switches are IP67-rated and is compliant with IEC 61131-2:2017, they are suitable for PLC application and their associated peripherals.
- M12 connector with IP67 rugged housing
- Provides 8 fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps auto-negotiation
- Complies with EN50155
- Complies with IEC 61131-2 specifications
- Supports redundant 12 ~ 48 VDC power input
- Supports wide operating temperature range from -40 to 75 °C
Additional information
Communications |
|
| Standard IEEE | 802.3, 802.3u, 802.3x |
| LAN | 10/100Base-T (X) |
| Transmission Speed | Up to 100 Mbps |
Interface |
|
| Connectors |
|
| LED Indicators | Power 1, Power 2 10/100T (X): Link/Activity |
Power |
|
| Power Consumption | 2.5 Watts |
| Power Input | 12 ~ 48 VDC, redundant dual inputs |
| Operating Voltage | 9.6 ~57.6 VDC |
Mechanism |
|
| Dimensions (W x H x D) | 62 x 194 x 25 mm (2.44" x 7.63" x 1.00") |
| Enclosure | IP67, Metal shell with solid mounting kits |
| Mounting | DIN-rail, Wall |
Protection |
|
| Reverse Polarity | Present |
| Overload current | Present |
Environment |
|
| Operating Temperature | e -40 ~ 75 °C (-40 ~ 167 °F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Humidity | 5 ~ 95% (non-condensing) |
| Storage Humidity | 5 ~ 95% (non-condensing) |
Certification |
|
| Safety | UL 61010 |
| EMI | EN 61131-2 CE, CE-LVD, FCC Class A , RCM |
| EMS |
|
| Shock | IEC 60068-2-27, EN 61373 |
| Freefall | IEC 60068-2-32 |
| Vibration |
|
| Railway | Complies with EN50155 |
