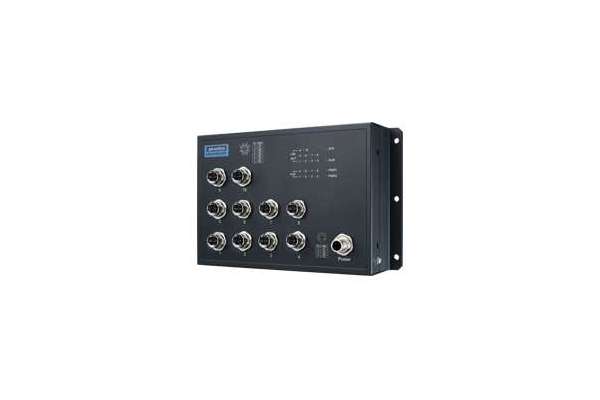

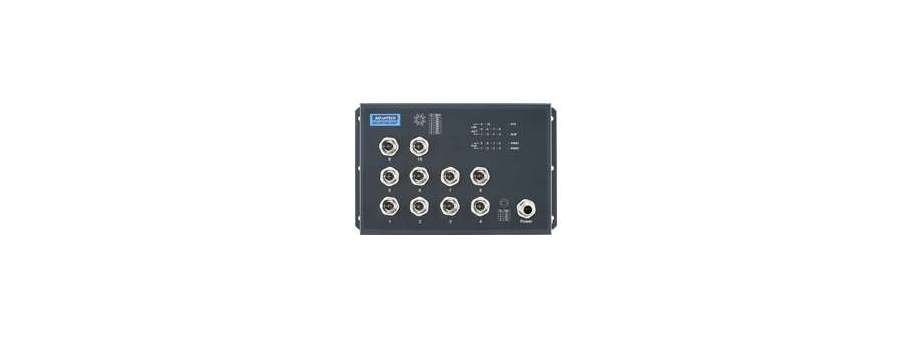

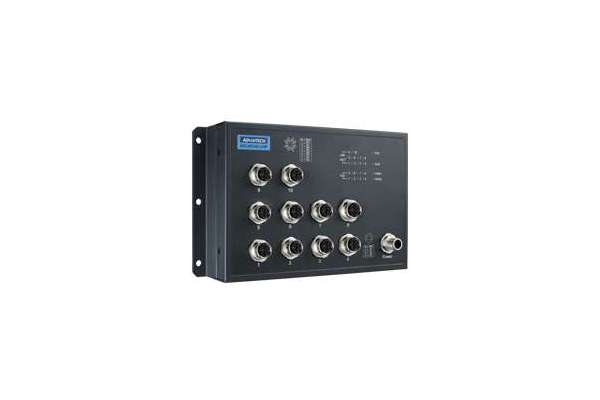

Switch 72/96/110 VDC Advantech EKI-9510G-2GPH

EN 50155 10-port Unmanaged PoE M12 Full Giga Ethernet Switch 72/96/110 VDC Advantech

Networks and Communications >> EN50155 Ethernet switches

 Price and avalability

Manufacturer: Advantech Co., Ltd.

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9510G-2GPH & EKI-9510G-2GPL is a Unmanaged PoE Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface with IEEE802.3af/at PoE(Power Over Ethernet) function. PoE ports can total provide up to 100Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). It also provides 2 x Gigabit Ethernet M12 X-code interface with Bypass function, to increase the reliability of the network. EKI-9510G-2GPH/ PL features a "flat" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet

  • Complies with EN50155
  • 8 x M12 X-Coded 10/100/1000Mbps PoE ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
  • Power Input EKI-9510G-2GPH: 72/96/110 VDC EKI-9510G-2GPL: 24/48 VDC
  • Operating Voltage EKI-9510G-2GPH: 50.4~137.5 VDC EKI-9510G-2GPL: 16.8~60 VDC
  • 8-port PoE support IEEE802.3 at/af
  • M12 connector with IP40 protection

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9510G-2GPH-AE EN50155 M12 8GigaPoE + 2GigaBP Unm SW, 72~110VDC  34 092,2
EKI-9510G-2GPL-AE EN50155 M12 8GigaPoE + 2GigaBP Unm SW, 24~48VDC  34 092,2

Additional information

Interface


I/O Port 8 x 10/100/1000Mbps M12 X-Coded + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
Power Connector M12 A-Coded

Physical


Enclosure Aluminum Shell
Protection Class IP 40
Installation Wall Mount
Dimensions (W x D x H) 216 x 132 x 59.3 mm
Weight 1.5kg

LED Display


System LEDs PWR1, PWR2, SYS, Alarm
Port LED Data, PoE

Environment


Operating Temperature -40 ~ 70°C (-40 ~ 158°F)
Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity 10~ 95% (non-condensing)

Power


Power Consumption 10 Watts
PoE Power Budget
  • EKI-9510G-2GPH: 120 Watts
  • EKI-9510G-2GPL: 60 Watts
Power Input
  • EKI-9510G-2GPH: 72/96/110 VDC
  • EKI-9510G-2GPL: 24/48 VDC
Operating Voltage
  • EKI-9510G-2GPH: 50.4~137.5 VDC
  • EKI-9510G-2GPL: 16.8~60 VDC
  • Dual inputs Supports Overload Current Protection
  • Supports Reverse Polarity Protection

Certification


EMI
  • FCC Part 15 Subpart B Class A
  • CE EN55032 (CISPR)
  • EN55024 Class A
EMS
  • EN61000-4-2 (ESD); EN61000-4-3 (RS);
  • EN61000-4-4 (EFT); EN61000-4-5 (Surge);
  • EN61000-4-6 (CS)
Shock IEC 61373
Freefall IEC 60068-2-32
Vibration IEC 61373
Certificate EN 50155; EN50121-3-2

L2 Features


L2 MAC Address 8K
Jumbo Frame 9KB
