Sfp/lte router RUTXR1

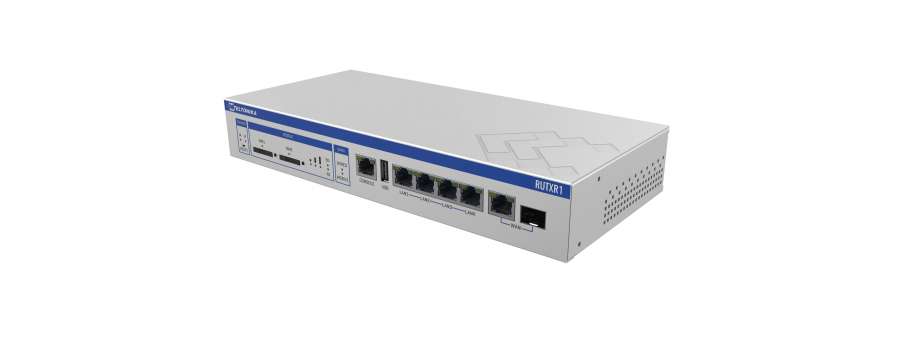

Enterprise rack-mountable LTE router Teltonika RUTXR1 with SFP

Networks and Communications >> Cellular Routers & Gateways

Manufacturer: Teltonika

RUTXR1 is our first-ever rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.

  • gigabit eth: 5 x Gigabit Ethernet ports
  • dual sim: With auto failover, backup WAN and other switching scenarios
  • sfp: SFP port for long-range Fiber-optic communication
  • rms:Compatible with Teltonika Remote Management System
  • wifi: Wave-2 802.11ac Dual Band WIF
  • 4g lte cat 6: Cellular speeds up to 300Mbps with Carrier Aggregation

User Manual

Additional information

Mobile


Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps
SIM switch 2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge mode Direct connection (bridge) between mobile ISP and device on LAN

Ethernet


WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Fiber 1 x SFP port (cannot work simultaneously with Ethernet WAN port)
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network


Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Mobile, Wired, Fiber and WiFi WAN options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)

Data to server


Protocols HTTP(S), MQTT, Azure MQTT, Kinesis

System characteristics


CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash

Usb


Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS

Power


Connector 2 x 4 pin industrial DC power sockets for main and redundancy power sources
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption idle: <3W, max: 18W

Physical interfaces


Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Console 1 x RJ45, RS232 communication
Fiber 1 x SFP port
Status LEDs 2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 2 x 4 pin DC connector
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw, 1 x lock

Physical specification


Casing material Full steel housing
Dimensions (W x H x D) 272 x 42.6 x 122.6 mm
Weight 1050 g
Mounting options Rack mounting, flat surface placement

Operating environment


Operating temperature -40°C to +70°C
Operating humidity 10 % to 90 % non-condensing
