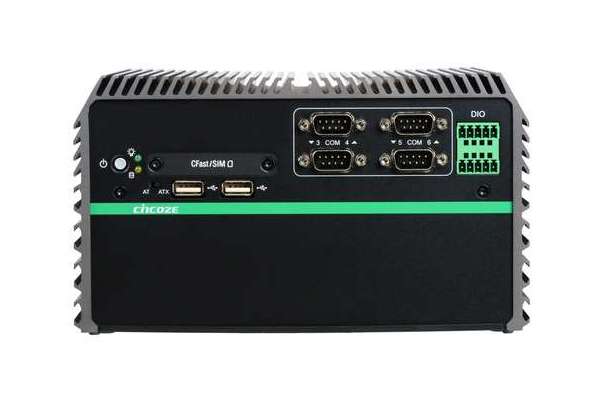

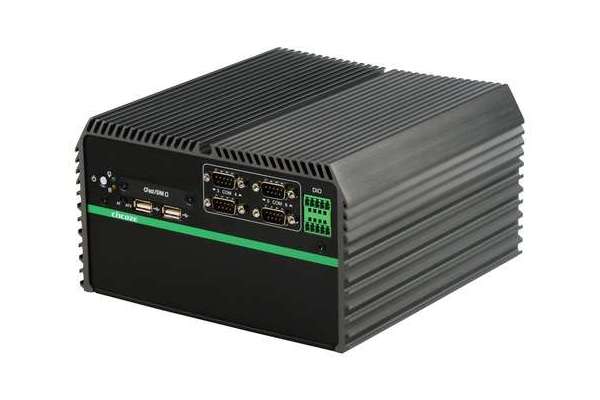

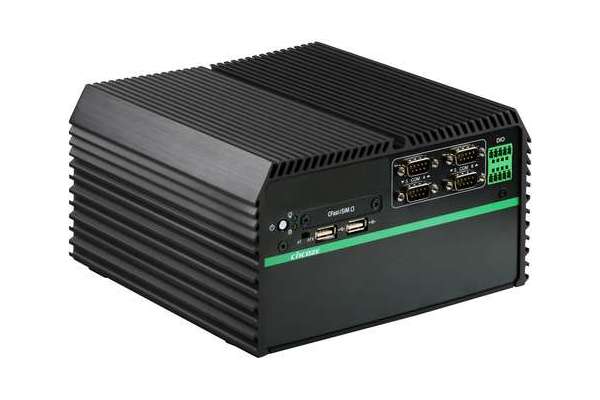

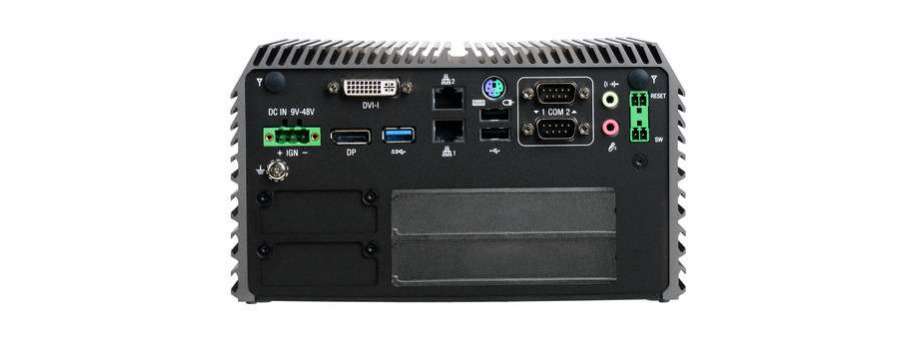

Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer with 2x PCI / 2x PCIe Expansion Cincoze DE-1002

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

DE-1000 Series Fanless Embedded PC supports Intel® Bay Trail platform, integrated with Intel® Atom™ E3845 Quad Core 1.91 GHz processor. Delivering the excellent quad-core processing power at only 10 watts power consumption, DE-1000 series is definitely an ideal solution for ultimate computing performance, energy efficiency, and superior reliability. Designed with rich I/O, high flexibility and easy expansion capabilities, DE-1000 series is ideal for diverse industrial applications. It offers multiple I/O extension modules, including up to 2x PCI or 2x PCIe x1 slot for flexible integration of a variety of add-on cards; 2x mini-PCIe slot for GSM and WLAN wireless communication; it also supports three storage expansions: 2.5” SATA HDD, CFast and SIM card. Supporting power ignition function, DE-1000 series can meet various applications, such as: surveillance, in-vehicle, and industrial automation applications, etc. DE-1000 series supports wide temperature range from -25°C to 70°C, wide range 9~48VDC power input, power protection, cable-less and one-piece housing design, as well as compliant with 50121-3-2 certification for rail transportation applications; it is designed to ensure stable operation in robust and harsh environments.

  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 2x DDR3L SO-DIMM Max. up to 8GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE Port, Support Wake-on-LAN and PXE
  • 1x USB 3.0, 4x USB 2.0
  • 6x RS232/422/485 Port with 5V/12V Power
  • 4x Isolated DI, 4x Isolated DO
  • 2x 2.5” SATA SSD/HDD Bay, 1x mSATA (Shared by Mini-PCIe Socket), 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input, Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi, GSM, or I/O Expansion
  • 2x PCI or 2x PCIe x1 Expansion
  • Power Ignition
  • EN50121-3-2 Certified/ EN62368-1

Additional information

System
Processor
Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
BIOS
AMI 64Mbit SPI BIOS
Memory
2x 204-Pin DDR3L 1066 / 1333MHz SO-DIMM (un-buffered and non-ECC), Max. up to 8GB

Graphics
Graphics Engine
Intel® HD Graphics Max. 792 MHz
Dual Display
  • 1x DVI-I and 1x DisplayPort (2560 x 1600)
  • 1x DVI-D and 1x VGA (with optional split cable)
  • 1x DisplayPort and 1x VGA (with DVI-I to VGA adapter)

Storage
SSD / HDD
2x 2.5” SATA HDD Bay
mSATA
1x Internal mSATA Slot (Shared by Mini-PCIe Socket)
CFast Socket
1x External CFast Socket
SIM Socket
1x External SIM Card Socket

I/O
Connector
1x DVI-I
DisplayPort
1x DisplayPort
LAN
2x GbE LAN Port (Intel® i210, Support Wake-on-LAN and PXE)
Mic-in
1x Mic-in and 1x Line-out (Codec: Realtek ALC888S)
USB
1x USB 3.2 Gen1 Port & 4x USB 2.0 Port
Isolated
1x 4 Isolated DI & 4 Isolated DO Port
COM
6x COM (DB9, RS232/422/485 with Auto Flow Control)
PS/2 Port
1x PS/2 Port
Antenna
2x Antenna Hole
Power Switch
1x Power Switch
AT/ATX Switch
1x AT/ATX Switch

Expansion
Mini PCIe
2x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module
Universal I/O Bracket
1x Universal I/O Bracket
PCIe
  • 2x PCIe x1 (DE-1002-EE Only) MEC Module / Support maximum dimensions of add-on card (H x L) Without MEC Module: 111.15mm x 174.63mm With MEC-LAN-M102-30: 60mm x 174.63mm With MEC-USB-M102-30: 63mm x 174.63mm With MEC-COM-M212-DB9: 60mm x 174.63mm
  • 2x PCI (DE-1002-PP Only) MEC Module / Support maximum dimensions of add-on card (H x L) MEC Module / Support maximum dimensions of add-on card (H x L) Without MEC Module: 111.15mm x 174.63mm With MEC-LAN-M102-30: 60mm x 174.63mm With MEC-USB-M102-30: 63mm x 174.63mm With MEC-COM-M212-DB9: 60mm x 174.63mm

Power Requirement
Power Mode
AT / ATX
Power Supply Voltage
9~48VDC
Terminal Block
One 3-pin Terminal Block Connector
Power Adapter
Optional Power Adapter AC/DC 12V/5A 60W

Physical
Dimension ( W x D x H )
203 x 200 x 114.5mm
Weight
3.66 kg
Construction
Aluminum Chassis with Fan-less Design
Mounting
Wall Mounting
Physical Design
Cable-less Design

Digital Input & Output
Digital Input
4x Digital Input (Source Type)
- Input Voltage (Dry Contact): Logic 0: Close to GND Logic 1: Open
- Input Voltage: Logic 0: 3V max. Logic 1: 5V min. (DI to COM-)
Digital Output
4x Digital Output
- Supply Voltage: 9~30VDC
- Sink Current: 580 mA Max. Per Channel

Operating System
Windows®
  • Windows® 10
  • Windows® 8
  • Windows® Embedded 8 Standard
  • Windows® 7
  • Windows® Embedded Standard 7
Linux
Supports by Project

Environment
Operating Temperature
-25°C to 70°C (ambient with air flow; with Industrial Grade Peripherals)
Storage Temperature
-30°C to 85°C
Relative Humidity
10%~95% (non-condensing)
Shock
50 Grms (With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
Vibration
Random: 5 Grms (With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN 50155 (EN 50121-3-2 Only)
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety
LVD IEC/EN 62368-1
