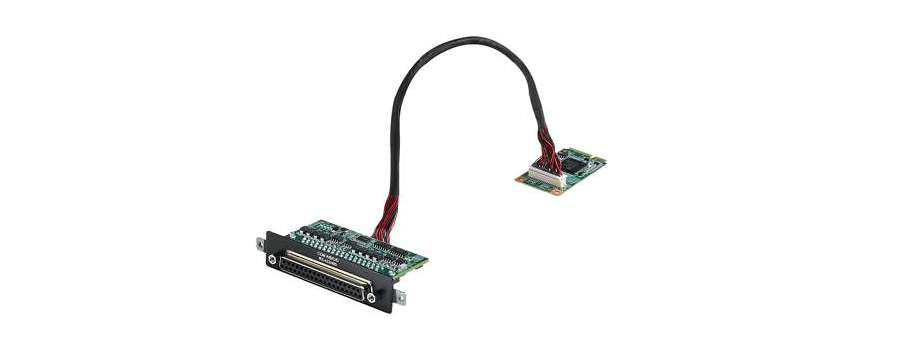

Expansion Module MOS-1121Y-1402E

Expansion Module Advantech Non-Isolated RS-422/485, DB37 to 4-Port DB9, PCIe I/F

Networks and Communications >> Wireless Module Solutions

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • Meets Advantech Standard iDoor Technology
  • PCI Express® Mini Card Specification Revision 1.2 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting (50bps~921.6kbps)
  • Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
  • I/O address automatically assigned by PCIe plug & play
  • Operating systems supported: Windows XP/7/8/10, and Linux
  • XR17V352/XR17V354 UART with 256-byte FIFOs

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-1120Y-0202E Isolated RS-232, 2-Ports, DB9, PCIe I/F  4 276,9
MOS-1121Y-0202E Модуль iDoor Isolated RS-422/485, 2-Ports, DB9, PCIe I/F  4 289,5
MOS-1120Y-1402E Non-Isolated RS-232, 4-Ports, DB37, PCIe I/F  3 969,4
MOS-1121Y-1402E Non-Isolated RS-422/485, 4-Ports, DB37, PCIe I/F  4 962,0

Additional information

General


Bus Type PCI Express Mini Card Revision 1.2
Certification CE, FCC class A
Connectors
  • 2 x Male DB9 for MOS-112XY-0202E
  • 1 x Female DB37 for MOS-112XY-1402E
Dimensions
  • Module: 51 x 30 x 12.4 mm (2" x 1.18" x 0.49")
  • I/O Plate: 95.6 x 19.4 x 41 mm (3.75" x 0.76" x 1.61")
Power Consumption
  • 400 mA @ +3.3 V for MOS-112XY-0202E
  • 500 mA @ +3.3 V for MOS-112XY-1402E

Communications


Comm. Controller
  • XR17V352 for MOS-112XY-0202E
  • XR17V354 for MOS-112XY-1402E
Data Bits 5, 6, 7, 8
Data Signals
  • RS-232: TX, RX, RTS, CTS, DTR, DSR, DCD, DI, GND
  • RS-422: TX+, TX-, RX+, RX-, (MOS-1121Y-1402E)
  • TX+, TX-, RX+, RX-, CTS+, CTS-, RTS+, RTS- (MOS-1121Y-0202E)
  • RS-485: Data+, Data
FIFO 256 bytes
Flow Control Flow Control RTS/CTS (MOS-1121Y-1402E not supported), Xon/Xoff
Parity None, Odd, Even, Mark and Space
Speed 50 bps ~ 921.6 kbps
Stop Bits 1, 1.5, 2

Protection


Isolation Protection 2,000 VDC for MOS-112XY-0202E
ESD Protection 15 KV
EFT Protection 1,000 V
Surge Protection 1,000 VDC

Software


Bundled Software ICOM Tools & Drivers
OS Support Windows XP/7/8/10, and Linux

Environment


Humidity (Operating) 5-95% RH, non-condensing
Operating Temperature -20 ~ 60° C (-4 ~ 140° F)
Storage Temperature -40 ~ 85° C ( -40 ~ 185° F)
