Fanless Panel PC PPC-324W-P7

23.8" Fanless Panel PC with Intel® Core™ i Processor PPC-324W-P7

Industrial Computer >> Industrial Panel PC and HMI

 Price and avalability

Manufacturer: Advantech Co., Ltd.

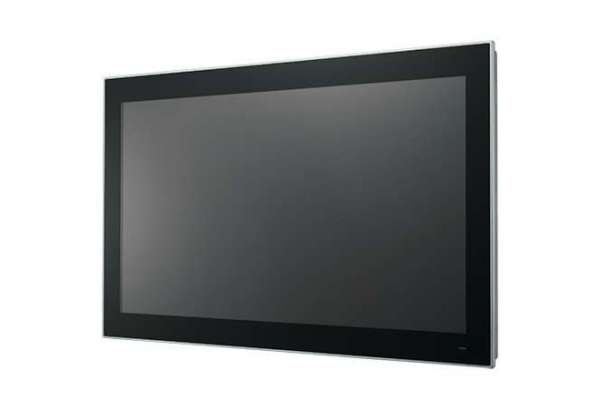

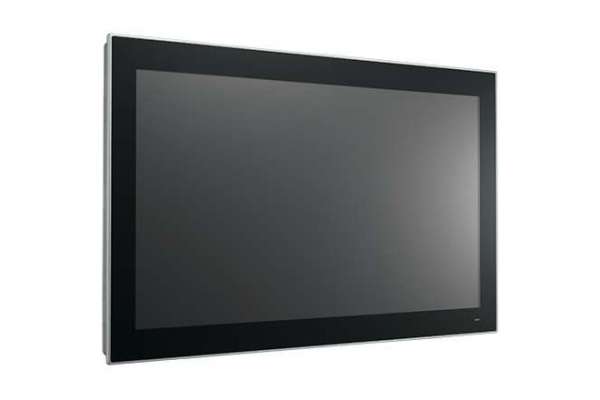

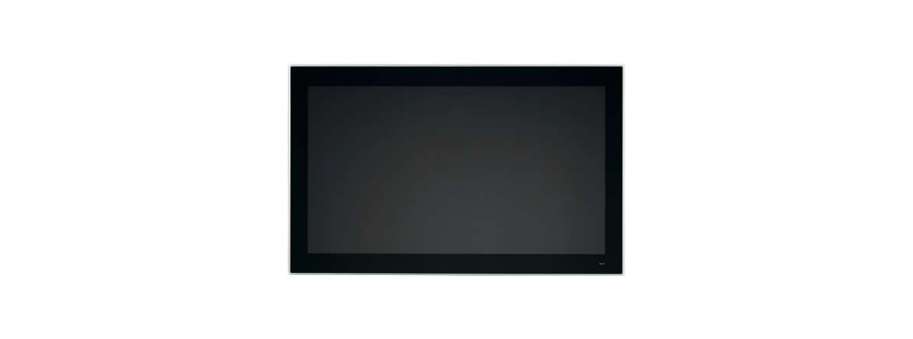

The PPC-324W-P7 is an all-in-one light panel PC with a wide format 23.8" industrial-grade LCD. Powered by 7th generation Intel® Core™ i processor, PPC-324W-P7 provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system.

  • Industrial-grade 23.8" LCD panel with 30k backlight lifetime
  • True-flat touchscreen with multi-touch projected capacitive control
  • High-performance, fanless 7th generation Intel® Core™ i processor
  • Up to 16 GB DDR4 SDRAM

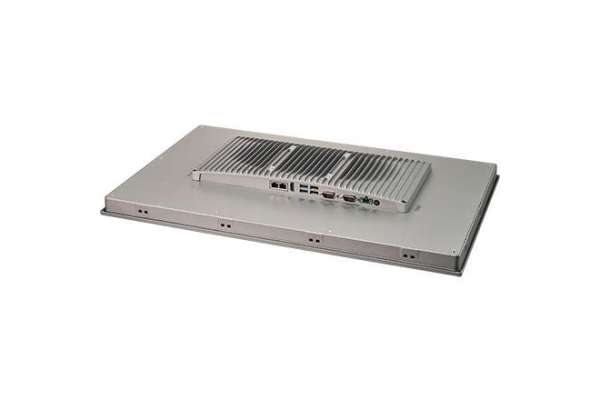

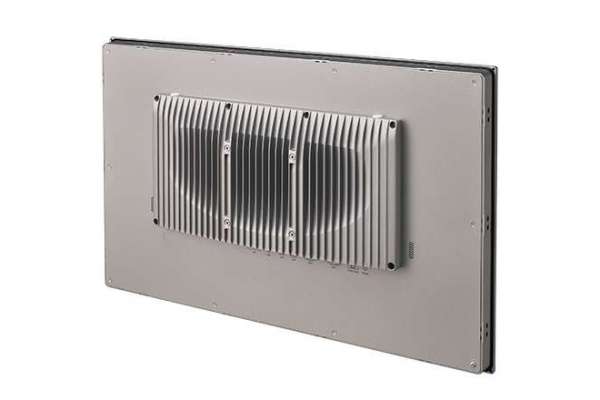

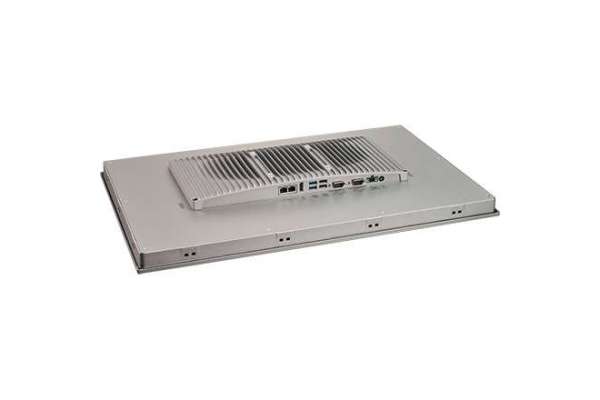

  • Compact, fanless design with aluminum alloy enclosure
  • IP65-rated front panel
  • Supports dual displays (1 x external HDMI)
  • Supports full-size mini PCIe expansion
  • Supports USB 3.0

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-324W-P750A Intel Core i5-7300U Fanless 23.8" Panel PC  78 572,4

Additional information

Part Number

PPC-324W-P750A

Processor System



CPU

Intel® Core™ i5-7300U dual core (default); i7-7600U/i3-7100U (optional)

Frequency

2.4 GHz

L3 Cache

3M

Memory

1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)

Storage

1 x 2.5" SATA Bay, 1 x mSATA Bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM)

I/O Ports

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS)
2 x USB 3.0, 2 x USB 2.0
1 x HDMI
1 x TPM 2.0 internal (optional)

Speaker

2 x 1W

Expansion Slots

1 x Full size Mini PCIe slot

Watchdog Timer

255 timer levels; setup by software

Weight

8.6kg (18.96lb)

Power Supply



Input Voltage

12-24 VDC

Power Consumption

80W

LCD Display



Viewing Angle (H/V°)

89 (left), 89 (right), 89 (up), 89 (down)

Max. Resolution

1920 x 1080

Luminance (cd/m2)

350

Contrast Ratio

1000 : 1

Backlight Life (hrs)

30,000 hrs

Display Type

23.8" TFT LCD (LED backlight)

Touchscreen



Touch Type

10-point multi-touch projected capacitive

Light Transmission

Transmission above 85%

Controller

USB interface

Environment



Operating Temperature

0 ~ 50° C (32 ~ 122° F) for SSD, 0~45° C for HDD

Storage Temperature

-20 ~ 60° C (-4 ~ 140° F)

Relative Humidity

10 ~ 95% @ 40° C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27

Vibration

Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI, EN 60601-1-2

Safety

CB,CCC,UL

Front Panel Protection

IP65 Compliant

OS Support



OS Support

Microsoft® Windows 10 (64-bit), Win 10 LTSC, Linux

Physical Characteristics



Dimensions

595.9 x 374.1 x 61.5 mm (23.5" x 14.7" x 2.4")
