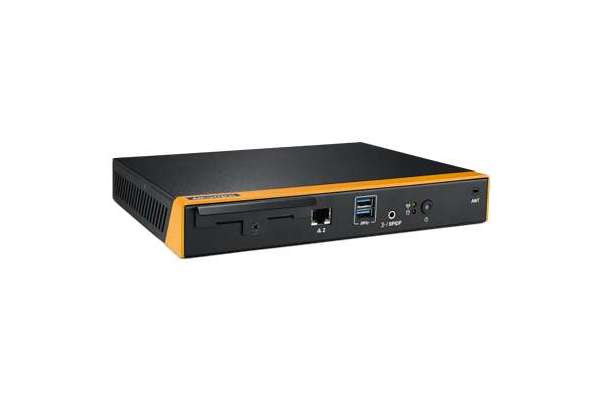

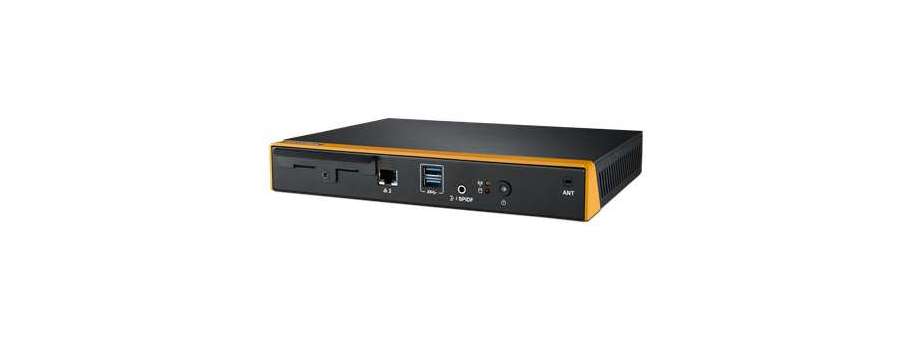

Part Number |
DS-780GB-S9A1E |
DS-780GB-U3A1E |
DS-780GB-U4A1E |
DS-780GB-U6A1E |
Processor |
|
|
|
|
CPU |
6th Gen. Intel® Celeron-3955U |
6th Gen. Intel® Core™ i3-6100U |
6th Gen. Intel® Core™ i5-6300U |
6th Gen. Intel® Core™ i7-6600U |
System Chipset |
Integrated in CPU |
Integrated in CPU |
Integrated in CPU |
Integrated in CPU |
BIOS |
AMI EFI 128Mbit |
AMI EFI 128Mbit |
AMI EFI 128Mbit |
AMI EFI 128Mbit |
Memory |
|
|
|
|
Technology |
2 x DDR4 260-pin SO-DIMM |
2 x DDR4 260-pin SO-DIMM |
2 x DDR4 260-pin SO-DIMM |
2 x DDR4 260-pin SO-DIMM |
Max. Capacity |
32GB (up to 16GB per SO-DIMM) |
32GB (up to 16GB per SO-DIMM) |
32GB (up to 16GB per SO-DIMM) |
32GB (up to 16GB per SO-DIMM) |
Display |
|
|
|
|
Chipset |
Integrated in CPU |
Integrated in CPU |
Integrated in CPU |
Integrated in CPU |
Processor Graphics |
Intel® HD Graphics 510 |
Intel® HD Graphics 520 |
Intel® HD Graphics 520 |
Intel® HD Graphics 520 |
Output |
1 x HDMI 2.0, 2 x HDMI 1.4 |
1 x HDMI 2.0, 2 x HDMI 1.4 |
1 x HDMI 2.0, 2 x HDMI 1.4 |
1 x HDMI 2.0, 2 x HDMI 1.4 |
Resolution |
4096 x 2160 |
4096 x 2160 |
4096 x 2160 |
4096 x 2160 |
Storage |
|
|
|
|
SATA |
1 x 2.5-inch SATA III HDD/SSD (only support 7mm height) |
1 x 2.5-inch SATA III HDD/SSD (only support 7mm height) |
1 x 2.5-inch SATA III HDD/SSD (only support 7mm height) |
1 x 2.5-inch SATA III HDD/SSD (only support 7mm height) |
CFast |
0 |
0 |
0 |
0 |
Ethernet |
|
|
|
|
Interface |
10/100/1000 Mbps |
10/100/1000 Mbps |
10/100/1000 Mbps |
10/100/1000 Mbps |
Controller |
Intel I219 & Realtek 8111G |
Intel I219 & Realtek 8111G |
Intel I219 & Realtek 8111G |
Intel I219 & Realtek 8111G |
Connector |
2 x RJ-45 |
2 x RJ-45 |
2 x RJ-45 |
2 x RJ-45 |
Audio |
|
|
|
|
Chipset |
ALC892 Codec (Line-in, line-out, mic-in) |
ALC892 Codec (Line-in, line-out, mic-in) |
ALC892 Codec (Line-in, line-out, mic-in) |
ALC892 Codec (Line-in, line-out, mic-in) |

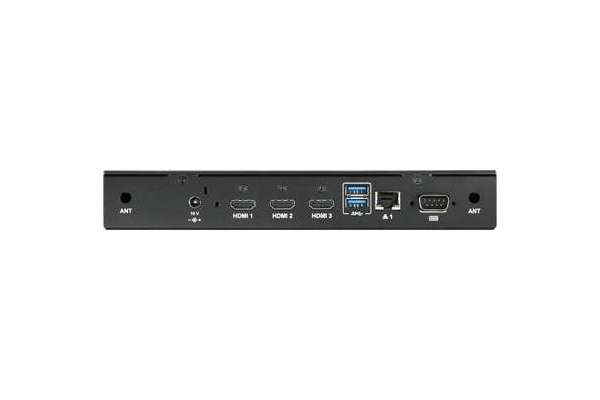

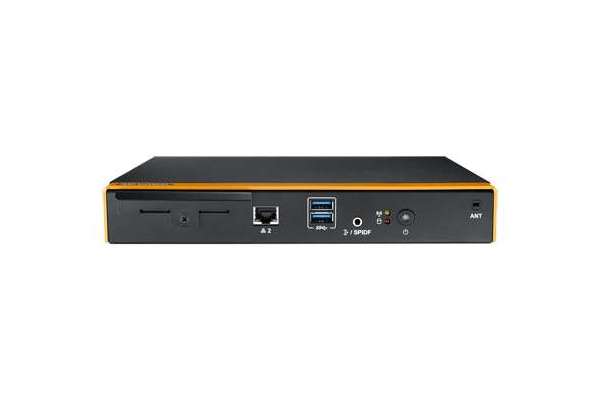

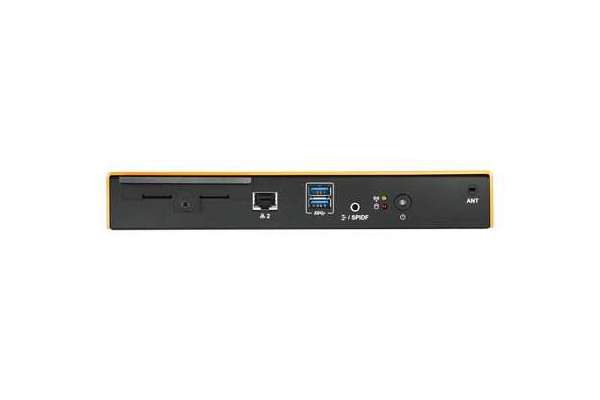

I/O |
|
|
|
|
HDMI |
3 (HDMI-2 support CEC) |
3 (HDMI-2 support CEC) |
3 (HDMI-2 support CEC) |
3 (HDMI-2 support CEC) |
LAN |
2 x RJ-45 |
2 x RJ-45 |
2 x RJ-45 |
2 x RJ-45 |
USB2.0 |
0 |
0 |
0 |
0 |
USB3.0 |
4 |
4 |
4 |
4 |
Audio |
1(SPDIF/ Line-out/ Mic-in), support Jack Sense |
1(SPDIF/ Line-out/ Mic-in), support Jack Sense |
1(SPDIF/ Line-out/ Mic-in), support Jack Sense |
1(SPDIF/ Line-out/ Mic-in), support Jack Sense |
Serial |
1 x COM (RS-232) |
1 x COM (RS-232) |
1 x COM (RS-232) |
1 x COM (RS-232) |
Mini-PCIe (Internal) |
1 (full size, support mSATA) |
1 (full size, support mSATA) |
1 (full size, support mSATA) |
1 (full size, support mSATA) |
Power input |
1 (DC-in Jack) |
1 (DC-in Jack) |
1 (DC-in Jack) |
1 (DC-in Jack) |
Power Requirement |
|
|
|
|
Management |
ACPI 3.0 |
ACPI 3.0 |
ACPI 3.0 |
ACPI 3.0 |
Input Voltage |
19V DC-in (ATX/AT mode, default ATX) |
19V DC-in (ATX/AT mode, default ATX) |
19V DC-in (ATX/AT mode, default ATX) |
19V DC-in (ATX/AT mode, default ATX) |
Others |
Supports Boot on Power back and schedule boot up function |
Supports Boot on Power back and schedule boot up function |
Supports Boot on Power back and schedule boot up function |
Supports Boot on Power back and schedule boot up function |
Watchdog Timer |
|
|
|
|
Output |
Interrupt, system reset |
Interrupt, system reset |
Interrupt, system reset |
Interrupt, system reset |
Physical Characteristics |
|
|
|
|
Mounting |
VESA/Desk/Wall/Din Rail |
VESA/Desk/Wall/Din Rail |
VESA/Desk/Wall/Din Rail |
VESA/Desk/Wall/Din Rail |
Dimensions(W x D x H) |
235 x 175 x 35mm |
235 x 175 x 35mm |
235 x 175 x 35mm |
235 x 175 x 35mm |
Weight
|
1.5 kg (3.3lb) |
1.5 kg (3.3lb) |
1.5 kg (3.3lb) |
1.5 kg (3.3lb) |
Environment |
|
|
|
|
Operating Temperature |
-5 ~ 40° C (32 ~ 104° F) with 0.7m/s air flow |
-5 ~ 40° C (32 ~ 104° F) with 0.7m/s air flow |
-5 ~ 40° C (32 ~ 104° F) with 0.7m/s air flow |
-5 ~ 40° C (32 ~ 104° F) with 0.7m/s air flow |
Relative Humidity |
95% @ 40° C (non-condensing), Operating |
95% @ 40° C (non-condensing), Operating |
95% @ 40° C (non-condensing), Operating |
95% @ 40° C (non-condensing), Operating |
Software Development Kit |
|
|
|
|
Operating System |
Win7 x64/x86, Win8.1 x64, Win10 x64 |
Win7 x64/x86, Win8.1 x64, Win10 x64 |
Win7 x64/x86, Win8.1 x64, Win10 x64 |
Win7 x64/x86, Win8.1 x64, Win10 x64 |
EWF & WDT SDK |
- |
-- |
- |
- |
Linux |
by Project support |
by Project support |
by Project support |
by Project support |
Certification |
|
|
|
|
EMC |
CE, FCC Class B, CCC, BSMI |
CE, FCC Class B, CCC, BSMI |
CE, FCC Class B, CCC, BSMI |
CE, FCC Class B, CCC, BSMI |
Safety Certifications |
CB, UL, CCC, BSMI |
CB, UL, CCC, BSMI |
CB, UL, CCC, BSMI |
CB, UL, CCC, BSMI |
