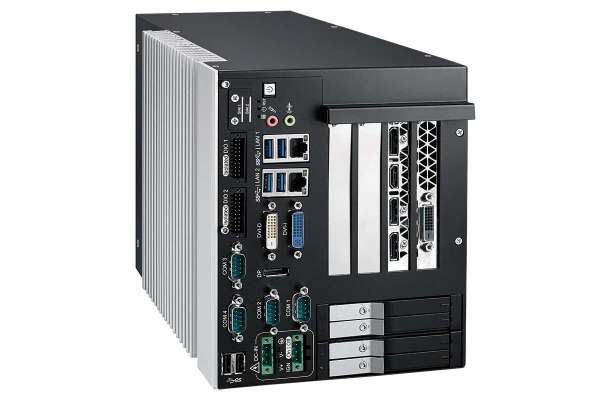

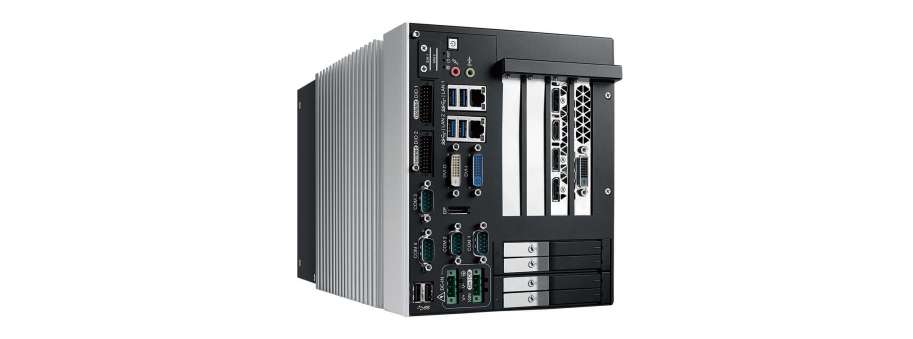

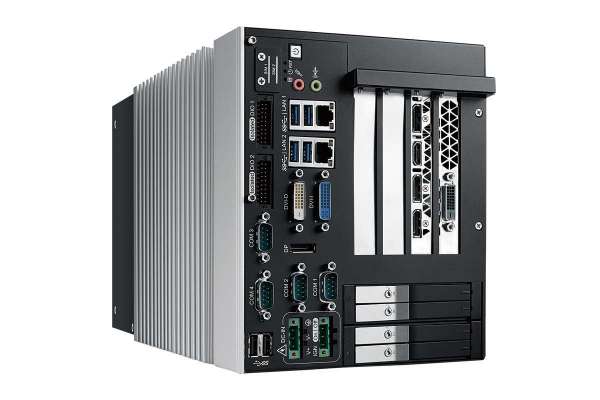

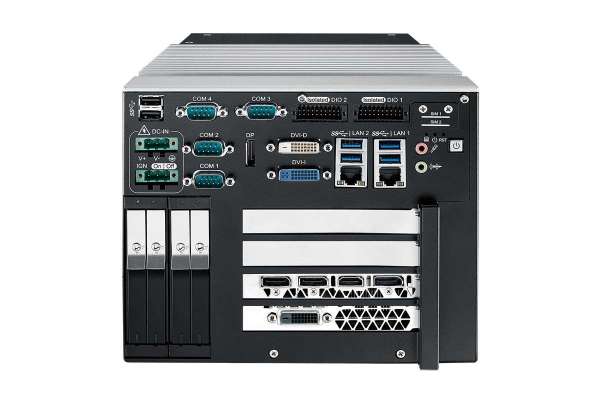

GPU Computing System RCS-9000F GTX1080

Workstation-grade 7th Generation Intel® Xeon®/Core™ i7 Vecow RCS-9000F GTX1080

Industrial Computer >> Visualization embedded computers

 Price and avalability

Manufacturer: Vecow

RCS-9400FR GTX1080 Overview

Workstation-grade 7th Generation Intel® Xeon®/Core™ i7, 2560 CUDA® cores NVIDIA® GeForce® GTX 1080 supports NVIDIA® Pascal™ GPU architecture, up to 8K resolution, all-in-one integrated features, multiple I/O connection, 3 SIM sockets for remarkable mobile availability, multiple PCI/PCIe expansion, USB 3.0, Isolated DIO, smart manageability, 12V to 36V power input with 80V surge protection, ignition power control. Vecow RCS-9000F GTX1080 GPU Computing System makes versatile expansions possible in Machine Vision, Deep Learning, Robot Control, Vehicle Computing, Machine Automation, Industry 4.0 and any performance-driven IoT applications.

Features

  • LGA 1151 Socket supports workstation-grade7th generation Intel® Xeon®/Core™ i7 Processor (Kaby Lake) with C236
  • 2560 CUDA® cores NVIDIA® GeForce® GTX 1080 supports NVIDIA® Pascal™ GPU architecture, up to 8K resolution
  • Display : 3 DVI, 1 HDMI and 4 DisplayPort, up to 7 independent HD displays
  • 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
  • 2 Independent GigE LAN, iAMT 11.0 supported
  • 12V to 36V DC Power Input w/80V Surge Protection
  • 4 Front-access 2.5" SSD/HDD Tray, 1 CFast Socket
  • 3 SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
  • 2 PCI/PCIe Slot, 3 Mini PCIe, 4 COM
  • 7 USB 3.0, 32 Isolated DIO
  • Configurable Ignition Power Control

Feature Highlights

Workstation-grade Performance

  • Workstation-grade : Intel® Xeon® processor + Intel® C236 chipset
  • NVIDIA® GeForce® GTX 1080, 8K Resolution

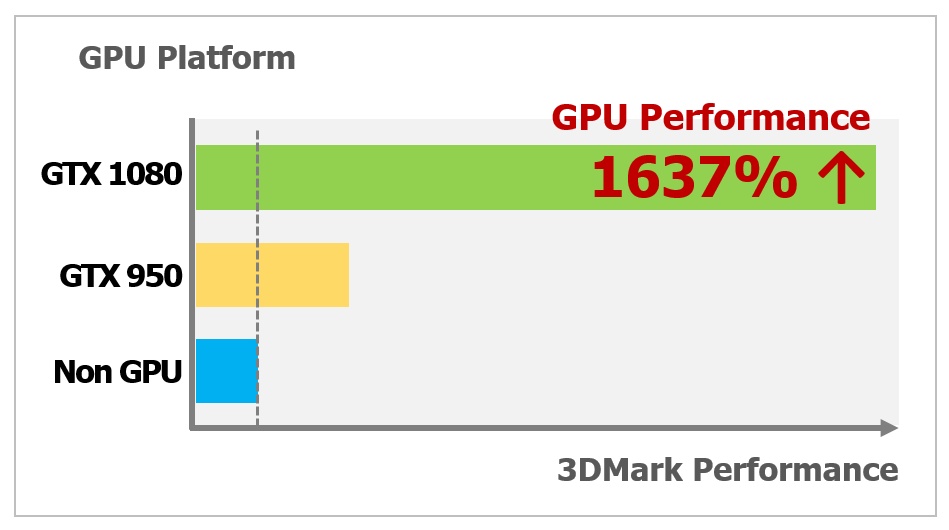

  • Max 1637% CPU performance improved, 49% System performance enhanced

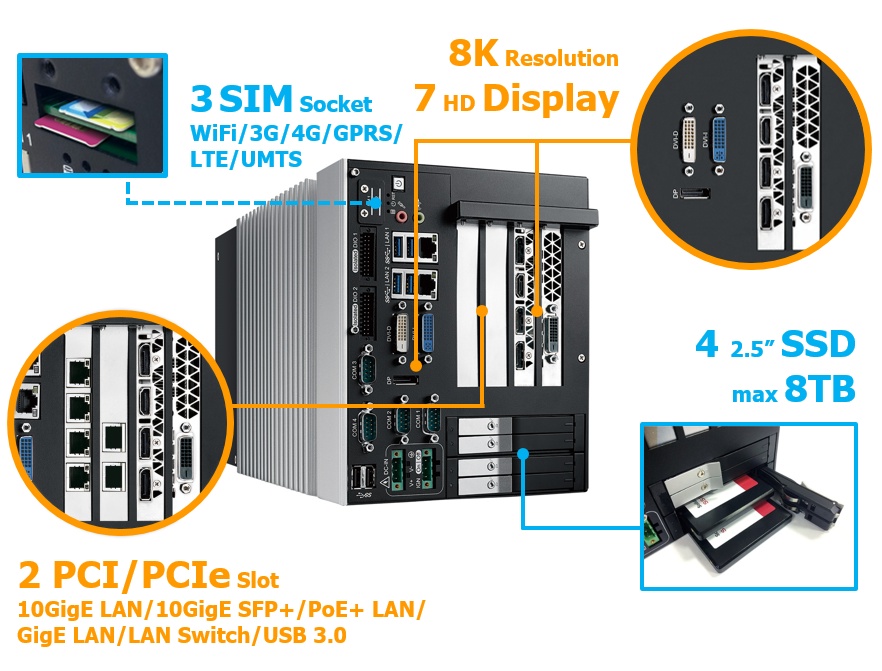

Versatile Expansion Functions

  • Display : 3 DVI, 1 HDMI, 4 DisplayPort, up to 7 independent HD displays
  • 3 SIM sockets support WiFi, 4G, 3G, LTE, GPRS, or UMTS
  • 4 Front-access 2.5" SSD trays, up to 8TB capacity
  • 2 PCI/PCIe expansions support multiple 10G LAN, 10G SFP+, GigE LAN, PoE+ LAN, LAN Switch, or USB 3.0
  • 7 USB 3.0, 4 COM RS-232/422/485
  • 3 Mini PCIe for PCIe/USB 3.0/SIM/mSATA

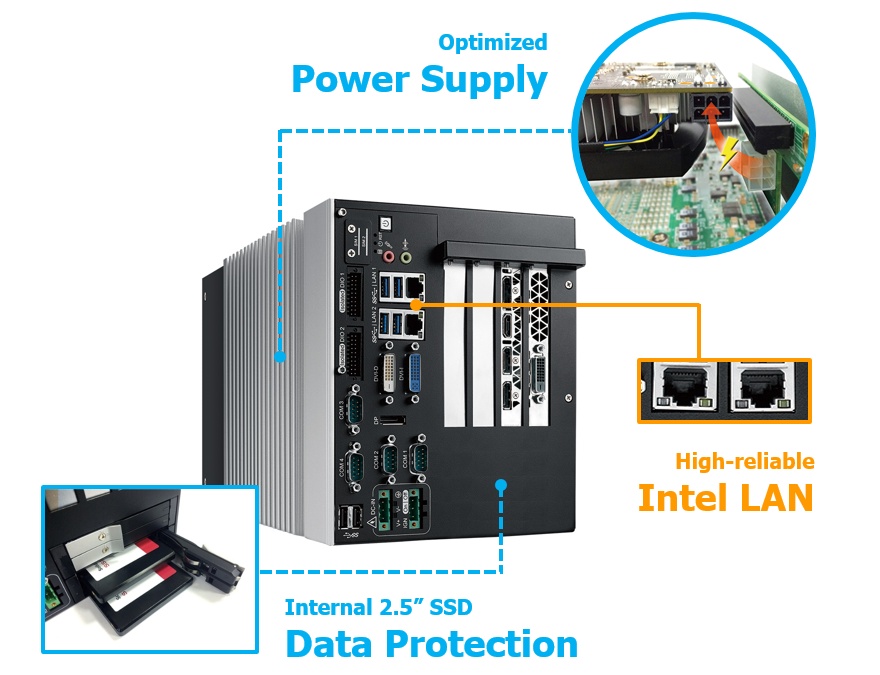

Industrial-grade Trusted Reliability

  • All-in-one, Front-access Management
  • Industrial-grade, high-reliable Intel LAN solution
  • Optimized power supply for GPU computing
  • Smart Circuit Protection
  • Anti-shock, Anti-vibration

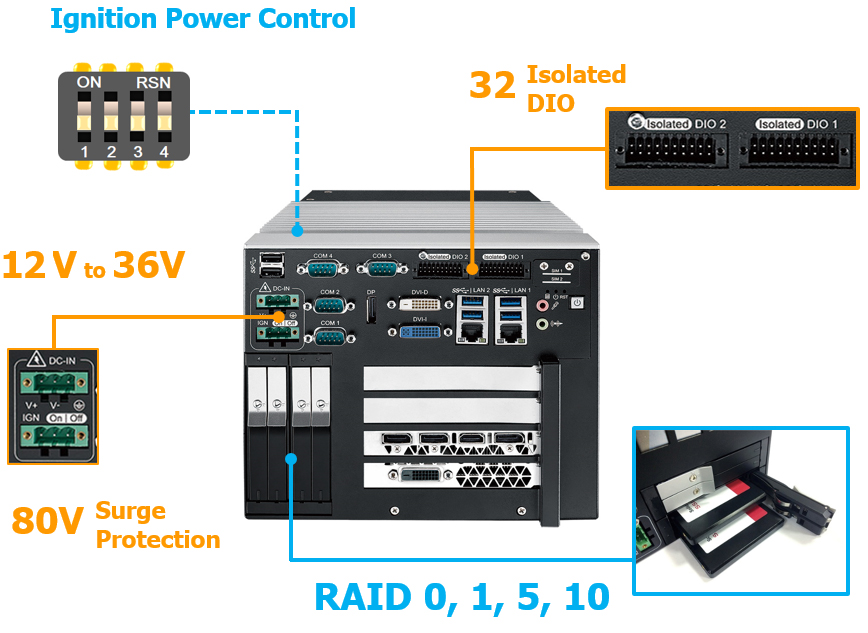

Secure System Protection

  • 10V to 36V wide range DC power input
  • 32 Isolated DIO
  • 16-mode Configurable Ignition Power Control
  • 80V Surge Protection
  • RAID 0, 1, 5, 10 Data Protection
  • iAMT 11.0, TPM 2.0, v

Price and avalability

Partnumber Description Price VAT incl Avalability
RCS-9430FHR-GTX1080-7700W16 Компактный промышленный компьютер RCS-9430FHR-GTX1080, pre-installed with intel 7th Gen Core i7-7700 Processor, certified 2шт. DDR4 2400 wide temp 8GB RAM (total in 16GB)  143 146,0
RCS-9430FHR-GTX1080-7700W8 Компактный промышленный компьютерRCS-9430FHR-GTX1080, pre-installed with intel 7th Gen Core i7-7700 Processor, certified DDR4 2400 wide temp 8GB RAM   145 020,0
RCS-9430FHR-GTX1080T-7700W16 Компактний промисловий комп`ютер RCS-9430 Intel Core i7-7700, DDR 16GB RAM, NVIDIA® GeForce® GTX1080 Ti  168 073,0
RCS-9430FHR-GTX1080 Промисловий компактний комп'ютер Vecow RCS-9430FHR-GTX1080 (RCS-9400 w/ 65W CPU, NVIDIA GeForce GTX1080, 2 GigE LAN, 1 PCIe x4, 1 PCIe x1, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO)  108 566,0
RCS-9430F-GTX1080 Промисловий компактний комп'ютер Vecow RCS-9430F-GTX1080 (RCS-9400, NVIDIA GeForce GTX1080, 2 GigE LAN, 1 PCIe x4, 1 PCIe x1, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO)  103 318,0
RCS-9430FH-GTX1080 Промисловий компактний комп'ютер Vecow RCS-9430FH-GTX1080 (RCS-9400 w/ 65W CPU, NVIDIA GeForce GTX1080, 2 GigE LAN,1 PCIe x4, 1 PCIe x1, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO)  104 958,0
RCS-9430FR-GTX1080 Промисловий компактний комп'ютер Vecow RCS-9430FR-GTX1080 (RCS-9400, NVIDIA GeForce GTX1080, 2 GigE LAN, 1 PCIe x4, 1 PCIe x1, 4 Front-access SSD Tray, 4 COM, 7 USB 3.0, 3 SIM, Isolated DIO)  106 926,0

Additional information

Specifications

System

Processor

Quad Core Intel® Xeon®/Core™ i7 Processor

(Kaby Lake-S/Skylake-S)

Chipset

Intel® C236

BIOS

AMI

SIO

IT8786E

Memory

2 DDR4 2133MHz SO-DIMM, up to 32GB

OS

Windows 10, Windows 8.1, Windows 7, Linux

I/O Interface

Serial

4 COM RS-232/422/485 (ESD 8KV)

USB

- 7 USB 3.0 (6 External, 1 Internal)

- 2 USB 2.0 (Internal)

Isolated DIO

32 Isolated DIO : 16 DI, 16 DO

LED

Power, HDD

SIM Card

3 SIM Card Socket (2 External, 1 Internal)

Expansion

Mini PCIe

3 Mini PCIe Socket :

- 2 Full-size Mini PCIe for PCIe/USB/External SIM Card

- 1 Full-size Mini PCIe for PCIe/USB/Internal SIM Card/mSATA

PCIe

Up to 2 PCIe Slot, by request

PCI

Up to 2 PCI Slot, by request

Graphics

Processor

- Intel® HD Graphics 630/530

- NVIDIA® GeForce® GTX 1080

Interface

8 Display interfaces:

- 3 DVI : Up to 1920 x1200 @ 60 Hz

- 3 DisplayPort : Up to 7680 x 3840 @ 60Hz

- 1 DisplayPort : Up to 4096 x 2304 @ 60Hz

- 1 HDMI : Up to 4096 × 2160 @ 60Hz

Storage

SATA

4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10

mSATA

1 SATA III (Mini PCIe Type, 6Gbps)

Storage Device

- 1 CFast Socket (Internal)

- 4 2.5" SSD/HDD Tray (External)

Audio

Audio Codec

Realtek ALC892, 5.1 Channel HD Audio

Audio Interface

1 Mic-in, 1 Line-out

Ethernet

LAN 1

Intel® I219LM GigE LAN supports iAMT 11.0

LAN 2

Intel® I210 GigE LAN

Power

Power Input

35W TDP CPU : 12V to 36V, DC-in

65W/80W TDP CPU : 16V to 36V, DC-in

Power Interface

3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control

16 Mode (Internal)

Remote Switch

3-pin Terminal Block

Surge Protection

Up to 80V/1ms Transient Power

Others

TPM

Optional Infineon SLB9665 supports TPM 2.0, LPC Interface

Watchdog Timer

Reset : 1 to 255 sec./min. per step

Smart Management

Wake on LAN, PXE supported

HW Monitor

Monitoring temperature, voltages. Auto throttling control when CPU overheats.

Mechanical

Dimension (W x L x H)

172mm x 330mm x 210mm (6.8" x 13" x 8.3")

Weight

RCS-9400FHR GTX1080 : 6.3 kg (13.9 lb)

RCS-9400FR GTX1080 : 5.6 kg (12.3 lb)

Mounting

Wallmount by mounting bracket



Environment

Operating Temperature

35W TDP CPU :

- Core™ i7 : -25°C to 60°C (-13°F to 140°F)

- Xeon® E3-1268L v5 : -25°C to 60°C (-13°F to 140°F)

65W TDP CPU :

Core™ i7 : -25°C to 55°C (-13°F to 131°F)

80W TDP CPU :

Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -25°C to 45°C (-13°F to 113°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5% to 95% Humidity, non-condensing

Relative Humidity

95% at 60°C

Shock

IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms

Vibration

IEC 60068-2-64, SSD: 5Grms, 5Hz to 500Hz, 3 Axis

EMC

CE, FCC, EN50155, EN50121-3-2
