High performance Rugged laptop S14I

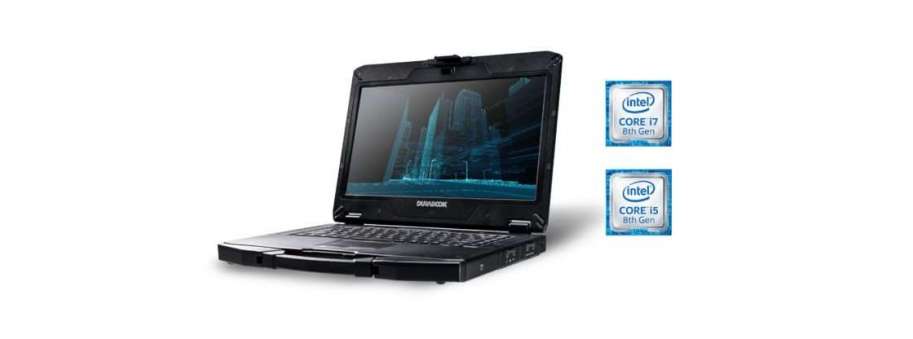

High performance Rugged laptop DURABOOK S14I with an Intel® 8th Generation CPUs and Intel® UHD 620 graphics processors

Industrial Computer >> Rugged laptops and tablets

 Price and avalability

Manufacturer: DURABOOK (TWINHEAD)

Built with an Intel® 8th Generation CPUs and Intel® UHD 620 graphics processors, the S14I makes intensive data processing a breeze. With the ultra-high-speed data transmission capability of Intel® Dual Band Wireless AC 9260 and Bluetooth® V5.0, all information is instantly synced and fed back to the data control center.

The S14I is built with a robust mechanical design and rigorously tested components. It meets the standards of MIL-STD-810G; withstands up to a 4-foot drop; and boasts an IP53 rating. This tough yet elegant laptop breaches the boundary between semi-rugged and fully-rugged devices.

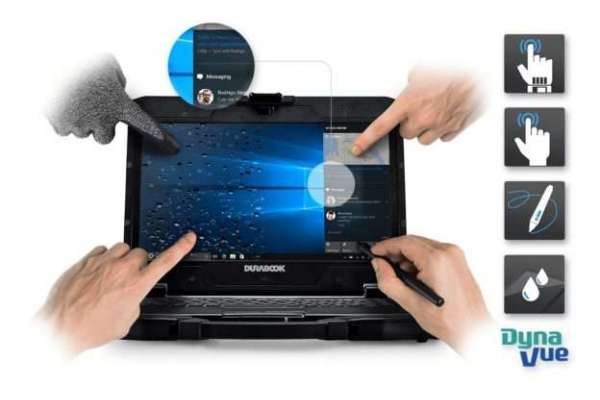

The S14I sports a Full HD 1080p display and proprietary DynaVue® technology. With brightness enhanced up to 1,000 nits and light-filtering technology providing a high contrast ratio (CR) to eliminate reflection, every detail of imagery is delivered with the utmost clarity. The 10-point capacitive multi-touch panel has four Touch Modes (Glove, Stylus, Water, Finger), optimizing use of the device for both indoor and outdoor applications.

In the field, portability equals productivity. The S14I weighs only 2.3kg and is 33% slimmer than the previous generation.
Adding ultra-long battery life of 12 hours and battery swap capability to its mobile form factor, the S14I enables non-stop operation outside of the office.

Price and avalability

Partnumber Description Price VAT incl Avalability
S14I/LITE Напівзахищений ноутбук DURABOOK S14I, полегшена модель, IP53, 14" стандартний дисплей FHD (1920 x1080), Intel Core i3-8130U, W10 Professional, 4 ГБ ОЗП, 256 ГБ SSD, станд клав, 802.11a /b/g/n/ac, Bluetooth 5.0, HDMI, SD Card Reader  81 635,4
S14I/BASIC Напівзахищений ноутбук DURABOOK S14I, базова модель, IP53, 14" стандартний дисплей FHD (1920 x1080), Intel Core i5-8250U, W10 Professional, 4 ГБ ОЗП, 256 ГБ SSD, станд клав, 802.11a /b/g/n/ac, Bluetooth 5.0, HDMI, SD Card Reader, VGA, RS232  86 843,4
S14I/STD Напівзахищений ноутбук DURABOOK S14I, базова модель, IP53, 14" стандартний дисплей FHD (1920 x1080), i5-8250U, W10 Professional, 8 ГБ ОЗП, 256 ГБ SSD, станд клав, 802.11a /b/g/n/ac, Bluetooth 5.0, HDMI, SD Card Reader,VGA, RS232,Smart Card,2Mp front cam  97 324,5
S14I/CarAdapt Автомобільний адаптер (зарядний пристрій) 11-27 В постійного струму для напівзахищеного ноутбуку DURABOOK S14I  3 189,9
S14I/SpareBat Запасний основний акумулятор для напівзахищеного ноутбуку DURABOOK S14I  7 095,9
S14I/Rem256SSD Знімний 2-й SSD на 256 Гб для медіа-відсіку напівзахищеного ноутбуку DURABOOK S14I (недоступний у моделі Lite)  15 558,9
S14I/OfficeDock Офісна док-станція з адаптером змінного струму (120 Вт) для ноутбуку DURABOOK S14I  20 181,0
S14I/VehicleDock Автомобільна док-станція без прохідного сигналу Tri RF для напівзахищеного ноутбуку DURABOOK S14I (автомобільний адаптер продається окремо)  56 181,3
S14I/SpareStylus Запасний стилус і прив’язка для ємнісного дотику для напівзахищеного ноутбуку DURABOOK S14I  2 148,3
S14I/BatCharger2 Зарядний пристрій 2 відсіки (головний+головний) для напівзахищеного ноутбуку DURABOOK S14I  18 228,0
S14I/Rem2Bat Знімний 2-й акумулятор для відсіку носіїв напівзахищеного ноутбуку DURABOOK S14I (недоступний у моделі Lite)  8 463,0
S14I/Strap Плечовий ремінець (2 точки) для напівзахищеного ноутбуку DURABOOK S14I  2 278,5

Additional information

Rugged Specs


MIL-STD-810G Certified 4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity)
Water and Dust Resistant IP53

Tech Specs


Display 14.0″ FHD (1920 x1080)
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
Optional user selectable touch mode for finger/water, glove, or stylus programmable function
Operating System Windows® 10 Pro
Processors Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Intel® Core™ i7-8550U (8th Gen) 1.8GHz processor with Turbo Boost Technology up to 4.0GHz, 8MB cache
Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz processor with Turbo Boost Technology up to 3.6GHz, 6MB cache
Intel® Core™ i5-8250U (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.4GHz, 6MB cache
Intel® Core™ i3-8130U (8th Gen) 2.2GHz processor with Turbo Boost Technology up to 3.4GHz, 4MB cache
Memory 2 slots 4GB up to 32GB (2400MHz DDR4)
Storage 256GB SSD
Optional 512GB/1TB SDD
Optional OPAL 2.0 SSD
Optional 2nd storage (SSD)2,8
Graphics Intel® UHD Graphics 620
Optional NVIDIA® GeForce® GTX® 10508
Camera Optional integrated 2.0 MP web-cam with shutter design
Audio Optional integrated microphone7
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
Media Bay (One Option Only) Optional DVD super multi
Optional 2nd battery8
Optional 2nd storage (SSD)2,8
Optional ExpressCard 54 x 1 and PCMCIA Type II x 18
Optional PCMCIA Type II x 28
I/O Ports USB 3.1 (type A) x 2
USB 2.0 (type A) x 2
Audio in/out (combo jack) x 1
SD card (SDXC) x 1
10/100/1000 Ethernet (RJ-45) x 1
VGA port (D-sub,15-pin) x 18
HDMI port (type A) x 1
Serial port (RS-232 : D-sub,9-pin) x 1 (optional to support RS-422/ RS-485)2
Optional docking connector (41-pin Pogo) x 1
SIM card x 1
Optional smart card reader x 16
DC-In jack x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN8
Keyboard & Input 2 user-definable keys (P1/P2)
RF Signal slide-switch
Standard membrane keyboard with optional LED backlight
Wireless & Communications Integrated 10/100/1000 Ethernet
Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac)
Bluetooth® V5.0
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN8
Security Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Optional smart card reader6
Stealth mode
Kensington lock
Optional night vision mode1
Optional fingerprint scanner
Optional RFID reader2,6
Power AC adapter : 100-240V, 50Hz-60Hz, 65W
Optional AC Adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA VGA8
Main battery Li-Ion, 10.8V, 4700mAh, 12 hours3
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 12 hours3,8
Optional bridge battery : 5 minutes swap time4
Dimension & Weight 350 mm (L) x 282 mm (W) x 38 mm (H)5
2.3 kg5
Warranty 3-year limited warranty standard

  1. Night vision mode is available only for sunlight readable display
  2. Contact your sales representative for feature availability
  3. Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
  4. The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.
  5. Weight varies with options. The Dimension with optional discrete VGA is 61mm (H)
  6. RFID and Smart card reader are mutually exclusive.
  7. Integrated microphone is available only with web-cam.
  8. Not available in combination with Intel® Core™ i3-8130U.
