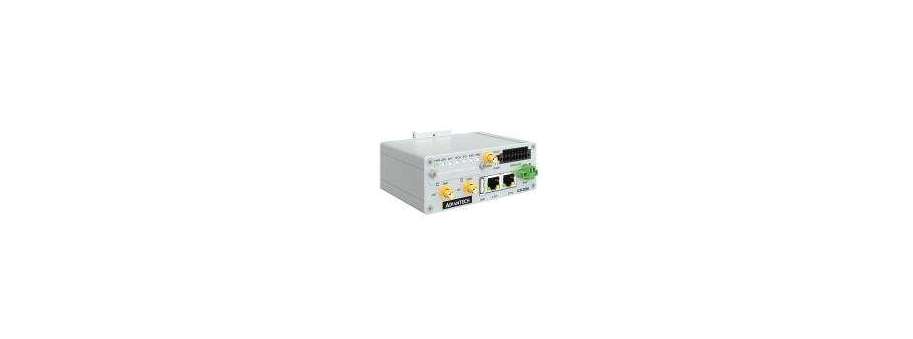

Industrial 4G Router & IoT Gateway Advantech ICR-2834
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ICR-2834G | Cellular Router, Cat4 | 26 971,4 | |
| ICR-2834GP | Cellular Router, Cat4 | 25 156,4 | |
| ICR-2834GA01 | Cellular Router, Cat4, Accessories EU | 28 762,1 | |
| ICR-2834GPA01 | Cellular Router, Cat4, Accessories EU | 26 948,0 |
ICR-2834 is enhanced successor of the Advantech´s cellular router platform v2 originally introduced in 2010. Ruggedized for industrial use keeping the same dimensions, configuration possibilities and most of the interfaces including GNSS, serial RS232/RS485 and numerous binary I/O´s. ICR-2834 offers more detailed LED indication and mainly more powerful CPU and amply of data storage to ensure long lifecycle (software updates) with broad software customization possibilities for user than older v2 platform. On project-based agreement, we can optionally add a TPM 2.0 chip (Trusted Platform Module) onboard verifying router integrity to provide trusted solution as a response to increasing cybersecurity demands. Cellular router is equipped with 2 × Ethernet 10/100 ports with two independent LANs/IP addresses, 1 × USB 2.0 host port, 2 × serial ports RS232/RS485 independently selectable by DIP switch, 2 × plate covered SIM card holders for automatic failover to an alternate service provider, 4 × binary inputs (I/O), 2 × binary outputs (I/O) and on-board GNSS receiver for device positioning and time synchronization.
- LTE Cat.4 with 3G/2G fallback
- GNSS receiver
- 1.3 GB eMMC storage to host customer SW applications
- 2× SIM with cover, eSIM ready
- 2× Ethernet 10/100
- 2× Serial RS232/RS485
- USB Host 2.0
- Optional Metal or Plastic case
- DIN Rail mounting
- Wide operational temperature range
- Backup real time clock
- Sleep mode
Additional information
System |
|
| CPU | ARM926EJ-S, 600 MHz |
| Memory | RAM - 128 MB eMMC - 4096 MB (838 MB for Router Apps, 512 MB for customer data) |
| Watchdog | HW Watchdog |
| RTC | Battery backup RTC |
| TPM* | Trusted Platform Module (TPM) 2.0 |
| Supercap* | Last-gasp Supercapacitor |
Interfaces |
|
| Ethernet | 2× Ethernet, RJ45, 10/100 Mbps, Isolation 1.5 kV |
| Serial Lines | 2× RS232/RS485 independently selectable by DIP switch RS232 (Tx, Rx, GND, RTS, CTS), RS485 (A(-), B(+), GND), 16-pin terminal block (no isolation) |
| I / O |
|
| USB | 1× USB 2.0 Host Connector |
| Reset Button | Reboot / Factory reset |
| LED Indicators | System, Signal strength, Data activity, SIM1, SIM2, 2G/3G/4G technology, User, ETH |
Environmental |
|
| Power Supply | 9 – 48 V DC (2-pin terminal block) |
| Consuption | Idle 1,6 W / Average 3,1 W / Maximum 7,3 W |
| Sleep Mode | Yes, 5 mW |
| Operating Temperature | -40 to +75 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 0 to 95 % |
| IP Cover | IP30 |
Physical Characteristics |
|
| Dimensions (without DIN holder) |
|
| Enclosure | Metal Case with grounding screw or Plastic Case |
| Mounting | DIN Rail |
| Weight |
|
GNSS |
|
| Antenna | 1× SMA connector, active (50 mA) |
| Systems | GPS, GLONASS, BeiDou, Galileo |
| Protocol | NMEA 0183 |
| Ac Time-to-First-Fix | Warm start: 28 s, Cold 32 s |
Cellular Interface |
|
| SIM Slots | 2× SIM (Mini SIM – 2FF) with cover, eSIM ready |
| Antennas | 2× SMA connector (1× Main, 1× Diversity) |
| LTE Parameters | Supported FDD frequencies: B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28 (700 MHz) Transfer rate: 150 Mbps (DL), 50 Mbps (UL) |
| HSPA+/UMTS Parameters | Supported frequencies: B1 (2100 MHz), B3 (1800 MHz), B8 (900 MHz) Transfer rate: 14.4 Mbps (DL), 5.76 Mbps (UL) |
| EDGE/GPRS Parameters | Supported frequencies: B2 (1900 MHz), B3 (1800 MHz), B5 (850 MHz), B8 (900 MHz) Transfer rate: 237 kbps (DL), 237 kbps (UL) |
Standards & Regulations |
|
| Radio | EN 301 511, EN 301 908-1, EN 301 908-2, EN 301 908-13 |
| EMC | EN 301 489-1, EN 301 489-19, EN 301 489-52, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, IEC 61000-6-2, IEC 61000-6-3 |
| Safety | EN 62 368-1, IEEE 802.3 |
| Transportation | E8 |
| Nationa | CE, UKCA |
| Mechanical | EN 60529, EN 60068-2-27, EN 60068-2-64 |
| Climatic | EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-30 |
| Environmental | REACH, RoHS3, WEEE |
