Industrial Ethernet Switch Advantech EKI-8712G-4XFI

8 x GE & 4 x 10G SFP+ Port Managed Industrial L3 Switch Advantech EKI-8712G-4XFI

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
EKI-8712G-4XFI-AE	Керований комутатор Ethernet Advantech L3 з 8 портами Gigabit Ethernet та 4 портами SFP+	111 560,0

• 8 x Gigabit Ethernet ports + 4 x 10G SFP+ ports
• L3 function: Static route, NAT
• Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
• IXM function for fast deployment
• Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
• Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
• Supports NMS for easy and visualized to monitor and manage network remotely
• Dual 12~48 VDC power input and 1 x relay output

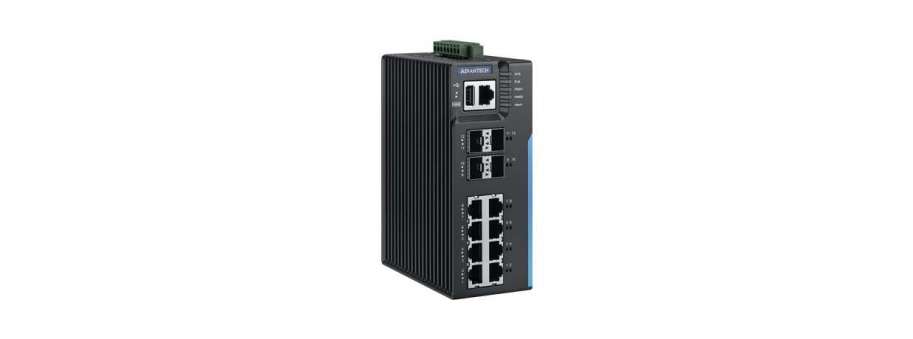

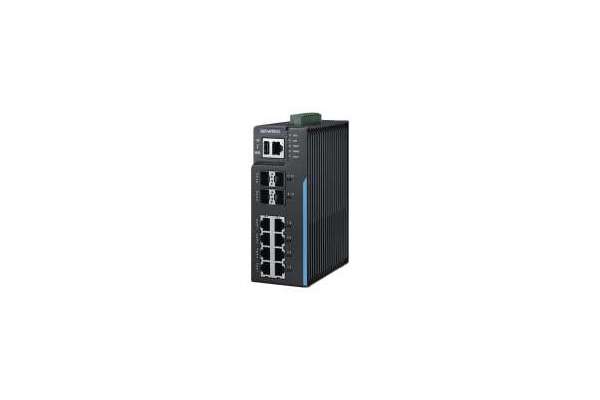

The EKI-8712G-4XFI is a DIN rail L3 switch that supports static route and NAT. It comes with 8 10/100/1000BaseT(X) ports and 4 SFP+ ports. It features -40~75°C operating temperature and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, and Din-Rail installation. In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.

Additional information

Interfaces / Communications
I/O Port	8 x 10/100/1000BASE-T/TX RJ-45 4 x SFP+ (mini-GBIC) port Auto-Negotiation, Full/Half Duplex Mode Auto MDI/MDI-X Connection
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)/FX IEEE 802.3ab 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE802.3ae for 10GBase over Fiber IEEE 802.3x for Flow Control
Console Port	RS-232 (RJ45)
Power Connector	8-pin screw Terminal Block (including relay)
Digital Input Channels	1
Digital Inputs	+13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
USB	USB Type A
Physical
Enclosure	Metal Shell
Protection Class	IP 40
Installation	DIN-Rail, Wall-mount
Dimensions (W x H x D)	57.5 x 152 x 116 mm
Environment
Operating Temperature	*-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity	5 ~ 95% (non-condensing)
Overload Current Protection	Present
Reverse Polarity Protection	Present
Power
Power Consumption	20W @48VDC (system)
Power Input	12 ~ 48 VDC, redundant dual power input
Fault Output	1 Relay Output with current carrying capacity of 1 A @ 24 VDC
Certification
Safety	UL 62368
EMI	CE, CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
EMC	EN 61000-6-2 EN 61000-6-4
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
