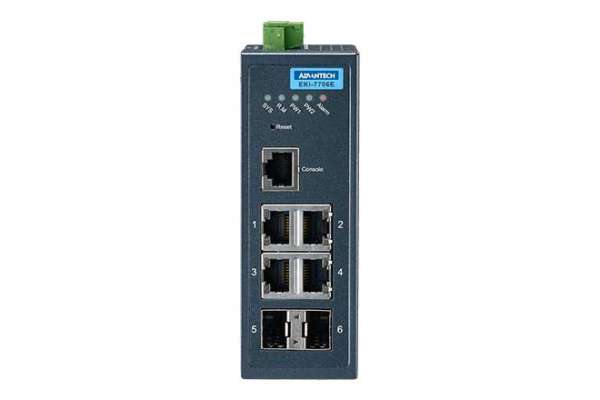

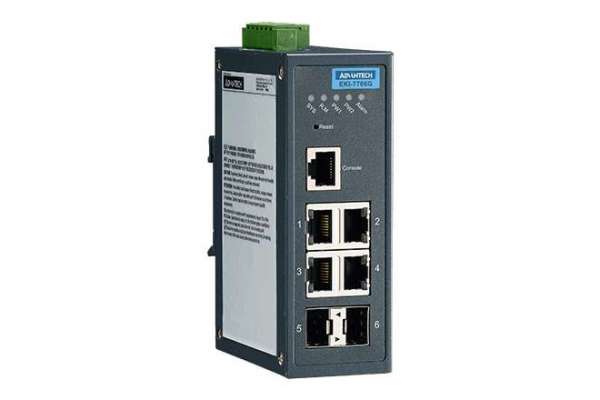

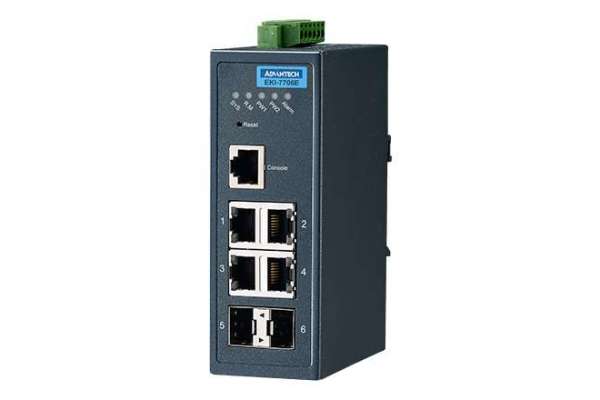

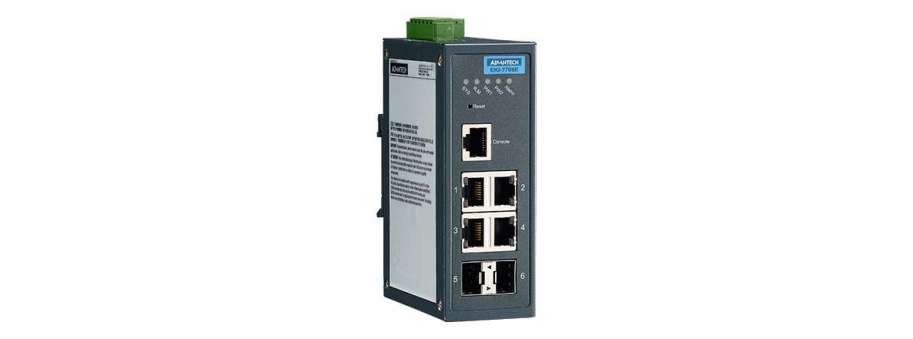

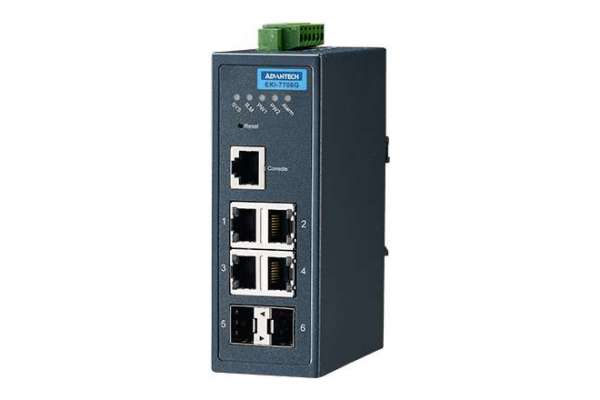

Managed Ethernet Switch EKI-7706

4GE+2G SFP Managed Ethernet Switch Advantech EKI-7706

Networks and Communications >> Advantech's Industrial Ethernet solution

 Price and avalability

Manufacturer: Advantech Co., Ltd.

EKI-7706E/G provides abundant ports to connect many devices and it is embedded with Advantech’s IXM function, which benefits users with fast deployment and can dramatically save engineers time and costs. The series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7706E series is equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of less than 20 ms to ensure network stability.

EKI-7706G-2F/2FI supports 4 Gigabit Ethernet ports and 2 SFP ports.

EKI-7706E-2F/2FI supports 4 Fast Ethernet ports and 2 SFP ports.

  • 4 x Fast Ethernet ports + 2 x SFP ports or 4 x Gigabit Ethernet ports + 2 x SFP ports
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • IXM function for fast deployment
  • Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Supports NMS for easy and visualized to monitor and manage network remotely
  • Dual 12 ~ 48 VDC power input and 1 x relay output

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-7706E-2F-AE Промисловий керований комутатор Advantech EKI-7706, 4FE + 2SFP Fast Ethernet Managed Redundant Industrial Switch  9 459,1
EKI-7706E-2FI-AE Промисловий керований комутатор Advantech EKI-7706E-2FI з 4FE + 2SFP Managed Ethernet Switch Wide Temp  10 397,2
EKI-7706G-2F-AE Промышленный управляемый коммутатор 4GE + 2SFP Managed Ethernet Switch  13 147,5
EKI-7706G-2FI-AE Промисловий керований комутатор 4GE + 2SFP Managed Ethernet Switch Wide Temp  14 272,7

Additional information

Specifications

EKI-7706G-2F

EKI-7706G-2FI

EKI-7706E-2F

EKI-7706E-2FI

Interfaces / Communications


I/O Port
  • 4 x 10/100/1000BASE-T/TX RJ-45
  • 2 x SFP (mini-GBIC) port
  • Auto-Negotiation, Full/Half Duplex Mode
  • Auto MDI/MDI-X Connection
  • 4 x 10/100BASE-T/TX RJ-45
  • 2 x SFP (mini-GBIC) port
  • Auto-Negotiation, Full/Half Duplex Mode
  • Auto MDI/MDI-X Connection

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)/FX
  • IEEE 802.3ab 1000BaseT(X)
  • IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  • IEEE 802.3x for Flow Control
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)/FX
  • IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  • IEEE 802.3x for Flow Control
Console port RS-232 (RJ45) RS-232 (RJ45)
Power Connector 6-pin screw Terminal Block (including relay) 6-pin screw Terminal Block (including relay)

Physical


Enclosure Metal Shell Metal Shell
Protection Class IP 30 IP 30
Installation DIN-Rail, Wall-mount DIN-Rail, Wall-mount
Dimensions (W x H x D) 43 x 120 x 84 mm (1.69" x 4.72" x 3.31") 43 x 120 x 84 mm (1.69" x 4.72" x 3.31")

LED Indicators


System LED PWR1, PWR2, SYS, Alarm and R.M PWR1, PWR2, SYS, Alarm and R.M.
Port LED Link / Speed / Activity Link / Speed / Activity

Environment


Operating Temperature
  • -40 ~ 75°C (-40 ~ 167°F) (EKI-7706G-2FI)
  • -10 ~ 60°C (-40 ~ 140°F) (EKI-7706G-2F)
  • -40 ~ 75°C (-40 ~ 167°F) (EKI-7706E-2FI)
  • -10 ~ 60°C (-40 ~ 140°F) (EKI-7706E-2F)
Storage Temperature -40 ~ 85°C (-40 ~ 185°F) -40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity 5 ~ 95% (non-condensing) 5 ~ 95% (non-condensing)
Overload Current Protection Present Present
Reverse Polarity Protection Present Present
MTBF 2,113,340 hours 2,113,340 hours

Power


Power Consumption 5.28W @ 48VDC (System) 5.28W @ 48VDC (System)
Power Input 12 ~ 48 VDC, redundant dual power input 12 ~ 48 VDC, redundant dual power input
Fault Output 1 Relay Output 1 Relay Output

Certification


Safety UL 61010-1, EN LVD 62368 UL 61010-2-201, EN LVD 62368
EMI CE, CISPR 32, FCC Part 15B Class A CE, CISPR 32, FCC Part 15B Class A
EMS
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
EMC
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61000-6-4
Shock IEC 60068-2-27 IEC 60068-2-27
Freefall IEC 60068-2-32 IEC 60068-2-32
Vibration IEC 60068-2-6 IEC 60068-2-6
Traffic control NEMA TS-2 NEMA TS-2
Railway Trackside EN 50121-4 EN 50121-4

Switch Properties


Switching Capacity 12Gbps 4.8Gbps
Transmission Rate 8.9Mpps 3.57Mpps
MAC Table Size 8K 8K
Jumbo Frame 1,0240 Bytes 1,0240 Bytes
Packet Buffer Size 4.1Mb 4.1Mb
Max. IGMP Group 256 256
Max. VLAN Group 256 (VLAN ID 1 ~ 4094) 256 (VLAN ID 1 ~ 4094)
