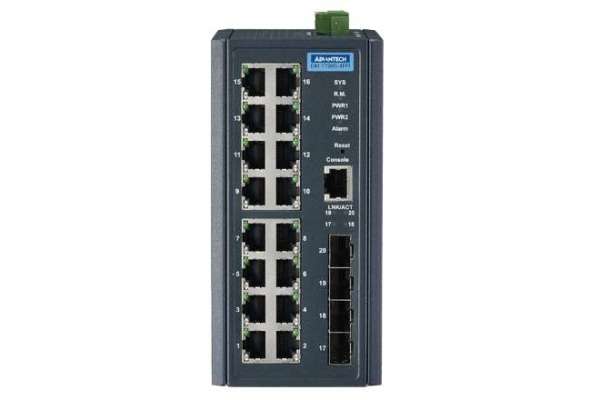

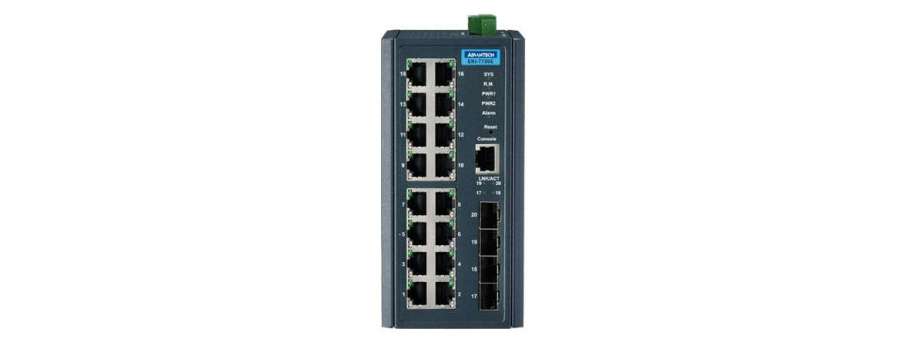

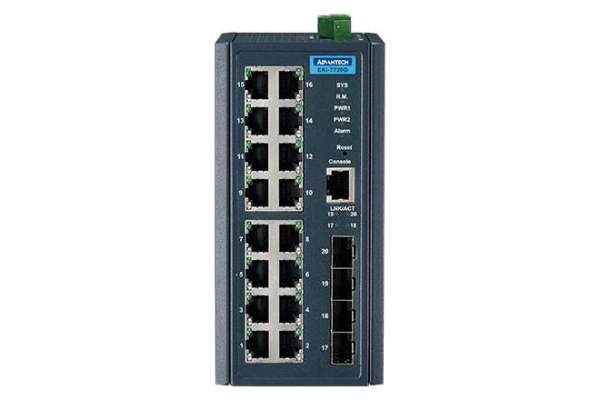

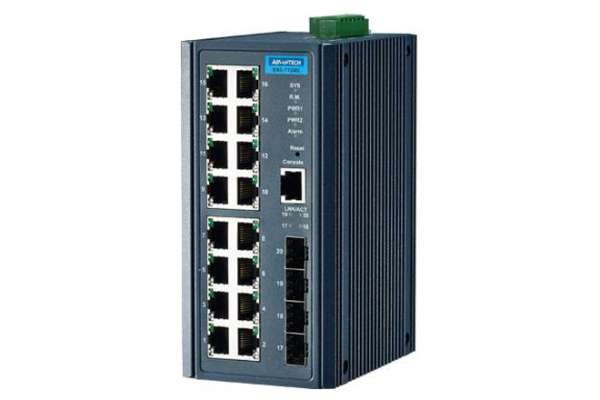

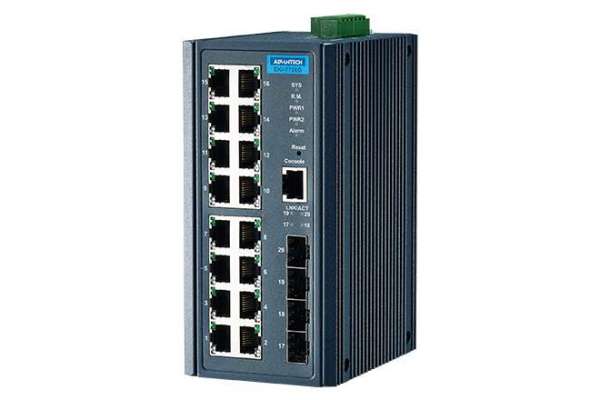

Industrial Managed Ethernet Switch Advantech EKI-7720 -40 ~ 70°C wide-range operating temperature

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-7720E-4F-AE Промисловий керований комутатор Advantech EKI-7720E-4F, 16FE+4SFP Port Managed Ethernet Switch  41 352,3
EKI-7720E-4FI-AE Промисловий керований комутатор Advantech EKI-7720E, 16FE+4SFP Port Managed Ethernet Switch Wide Temp  44 165,6
EKI-7720E-4FI-AU 16FE+4SFP Port Managed Ethernet Switch Wide Temp  50 494,9
EKI-7720G-4F-AE Промышленный управляемый коммутатор 16G+4SFP Port Managed Ethernet Switch  51 667,4
EKI-7720G-4FI-AE Промышленный управляемый коммутатор 16G+4SFP Port Managed Ethernet Switch Wide Temp  53 542,4
EKI-7720G-4FI-AU Промисловий керований комутор Advantech 16G+4SFP Port Managed Ethernet Switch Wide Temp  61 278,4

The EKI-7720E(G) series supports NMS to help IT managers with networking maintenance and failure prevention. Series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature.

  • 16 x Gigabit Ethernet ports + 4 x SFP ports (for EKI-7720G-4F/ EKI-7720G-4FI/EKI-7720G-4FPI)
  • 16 x Fast Ethernet ports + 4 x SFP ports ( for EKI-7720E-4F/ EKI-7720E-4FI)
  • Support up to 16 x IEEE 802.3at/af PoE ports for PD demands (for EKI-7720G-4FPI)
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • IXM function for fast deployment
  • Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Supports NMS for easy and visualized to monitor and manage network remotely
  • Dual 12 ~ 48 VDC power input and 1 x relay output
  • Dual 48 ~ 57VDC power inputs and 1 x relay output ( for EKI-7720G-4FPI)

Additional information

Specifications

EKI-7720G-4F/ EKI-7720G-4FI EKI-7720E-4F/ EKI-7720E-4FI EKI-7720G-4FPI

I/O Port

16 x 10/100/1000BASE-T/TX RJ-45 4 x SFP (mini-GBIC) port Auto-Negotiation, Full/Half Duplex Mode Auto MDI/MDI-X Connection 16 x 10/100BASE-T/TX RJ-45 4 x SFP (mini-GBIC) port Auto-Negotiation, Full/Half Duplex Mode Auto MDI/MDI-X Connection 16 x 10/100/1000BASE-T/TX RJ-45 4 x SFP (mini-GBIC) port Auto-Negotiation, Full/Half Duplex Mode Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)/FX IEEE 802.3ab 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for Flow Control IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)/FX IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for Flow Control IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)/FX IEEE 802.3ab 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for Flow Control

PoE

- - Port 1 ~ Port 16: IEEE 802.3at/af

Console port

RS-232 (RJ45) RS-232 (RJ45) RS-232 (RJ45)

Power Connector

6-pin screw Terminal Block (including relay) 6-pin screw Terminal Block (including relay) 6-pin screw Terminal Block (including relay)

Physical

Enclosure Metal Shell Metal Shell Metal Shell
Protection Class IP 30 IP 30 IP 30
Installation DIN-Rail, Wall-mount DIN-Rail, Wall-mount DIN-Rail, Wall-mount

Dimensions

(W x H x D)

74 x 152 x 105 mm (2.91" x 5.98" x 4.13") 74 x 152 x 105 mm (2.91" x 5.98" x 4.13") 97 x 152 x 105 mm (3.819" x 5.984" x 4.134")

LED Indicators

System LED PWR1, PWR2, SYS, Alarm and R.M. PWR1, PWR2, SYS, Alarm and R.M. PWR1, PWR2, SYS, Alarm and R.M.
Port LED Link / Speed / Activity Link / Speed / Activity Link / Speed / Activity / PoE

Environment

Operating Temperature -40 ~ 75°C (-40 ~ 167°F) (EKI-7720G-4FI) -10 ~ 60°C (-40 ~ 140°F) (EKI-7720G-4F) -40 ~ 70°C (-40 ~ 158°F)
Storage Temperature -40 ~ 85°C (-40 ~ 185°F) -40 ~ 85°C (-40 ~ 185°F) -40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity 5 ~ 95% (non-condensing) 5 ~ 95% (non-condensing) 5 ~ 95% (non-condensing)
Overload Current Protection Present Present Present
Reverse Polarity Protection Present Present Present
MTBF 1,469,341 hours 1,469,341 hours 1,343,056 hours

Power

Power Consumption 14.5Watts@48VDC, 14Watts@12VDC 14.5Watts@48VDC, 14Watts@12VDC 16W @ 55VDC (System)
Power Input 12 ~ 48 VDC, redundant dual power input 12 ~ 48 VDC, redundant dual power input
  • 48 ~ 57VDC for 802.3af
  • 53 ~ 57VDC for 802.3at
  • Redundant dual power input
Fault Output 1 Relay Output 1 Relay Output 1 Relay Output
Power Budget - - 420W

Certification

Safety UL 61010-2-201, EN LVD 62368 UL 61010-2-201, EN LVD 62368 UL 62368-1
EMI CE, CISPR 32, FCC Part 15B Class A CE, CISPR 32, FCC Part 15B Class A CE, CISPR 32, FCC Part 15B Class A
EMS
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
EMC
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61000-6-4
Shock IEC 60068-2-27 IEC 60068-2-27 IEC 60068-2-27
Freefall IEC 60068-2-32 IEC 60068-2-32 IEC 60068-2-32
Vibration IEC 60068-2-6 IEC 60068-2-6 IEC 60068-2-6
Traffic control NEMA TS-2 NEMA TS-2 NEMA TS-2
Railway Trackside EN 50121-4 EN 50121-4 EN 50121-4

Switch Properties

Switching Capacity 40Gbps 11.2Gbps 40Gbps
Transmission Rate 29.7Mpps 8.33Mpps 29.7Mpps
MAC Table Size 8K 8K 8K
Jumbo Frame 1,0240 Bytes 1,0240 Bytes 1,0240 Bytes
Packet Buffer Size 4.1Mb 4.1Mb 4.1Mb
Max. IGMP Group 256 256 256
Max. VLAN Group 256 (VLAN ID 1 ~ 4094) 256 (VLAN ID 1 ~ 4094) 256 (VLAN ID 1 ~ 4094)
