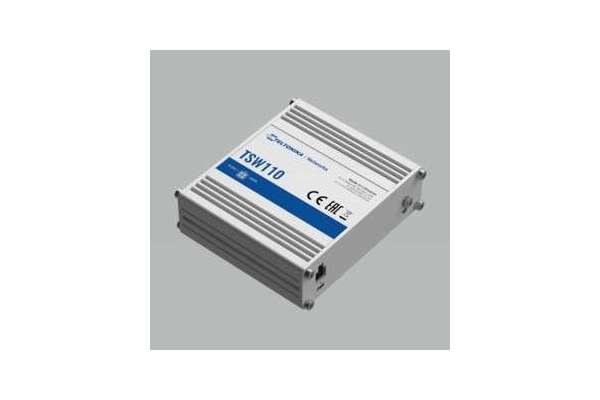

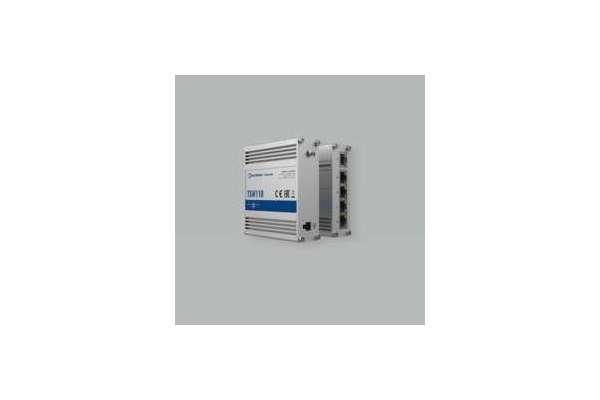

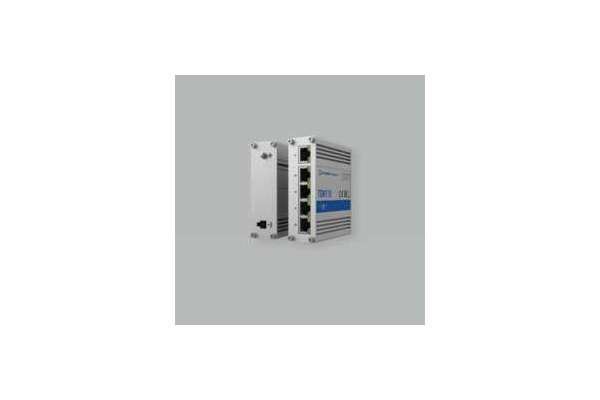

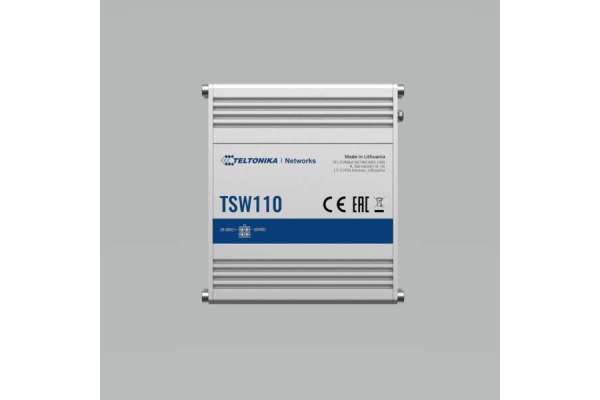

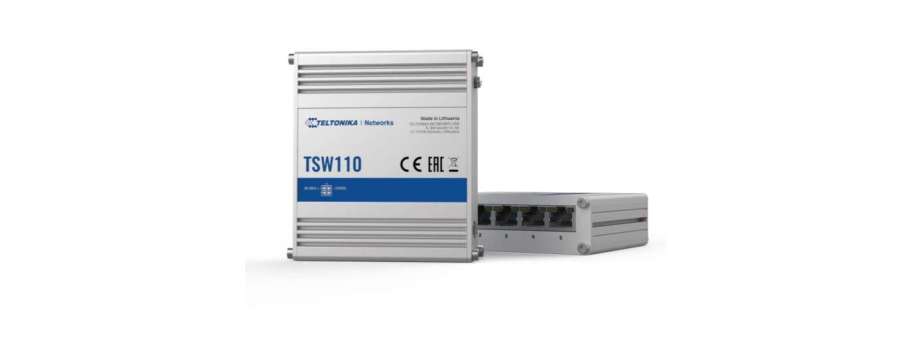

L2 unmanaged switch Teltonika TSW110

L2 unmanaged switch Teltonika TSW110 5 x Gigabit Ethernet with speeds up to 1000 Mbps

Networks and Communications >> Advantech's Industrial Ethernet solution

 Price and avalability

Manufacturer: Teltonika

  • TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100.
  • Possible to power up through the first LAN port.
  • It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
  • It offers a wide range of supported power supply voltages (9-30 V).
  • Ideal for professional high bandwidth applications to provide reliable data connection.

User manual

Price and avalability

Partnumber Description Price VAT incl Avalability
Teltonika RMS Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою).  81,0 Доступно

Additional information

Ethernet


LAN 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Performance specifications


Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Connector 4 pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption (idle/max) < 0.4 W/ <1.8 W

Physical interfaces (ports, leds)

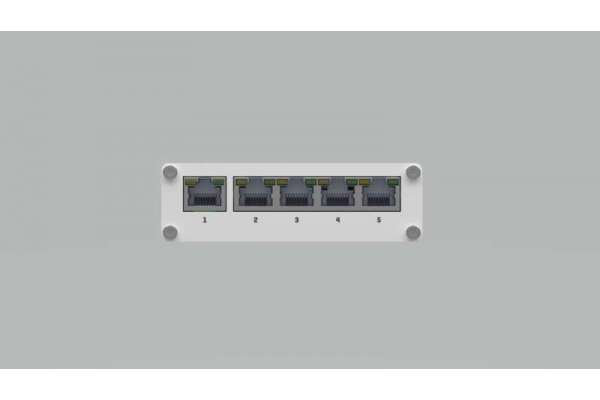

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs 1 x Power LED, 10 x LAN status LED’s

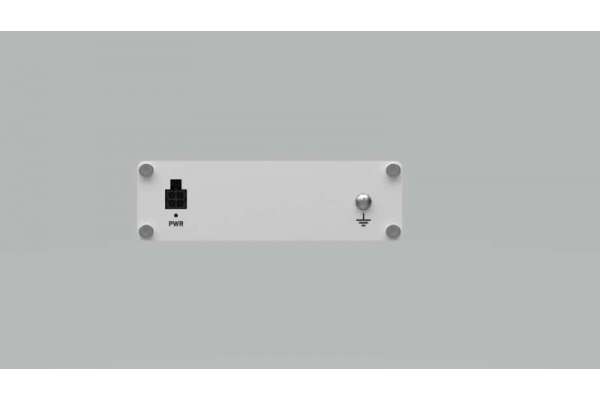

Power 1 x 4 pin DC connector
Ground 1 x Grounding screw

Physical specification


Casing material Full aluminum housing
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 227 g
Mounting options DIN rail or wall mounting (additional kit needed), flat surface placement

Operating environment


Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
