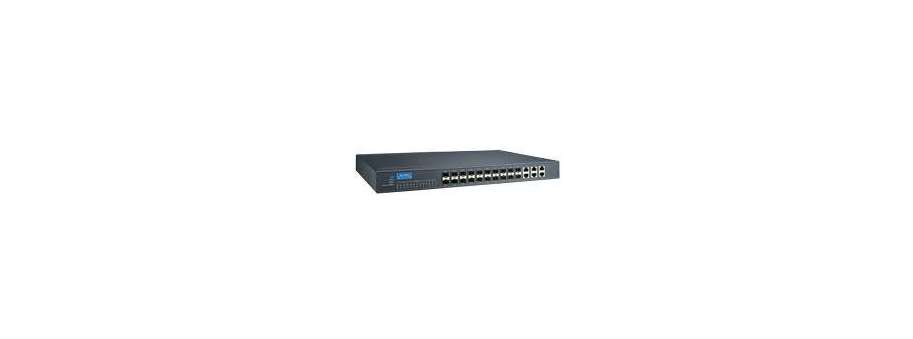

Ethernet Switch EKI-9226G-20FOI

Industrial Rackmount L2 Managed Switch with AC/DC Advantech EKI-9226G-20FOI with 20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports

Networks and Communications >> Advantech's Industrial Ethernet solution

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The EKI-9226G series are designed for power substation automation applications which meet IEC 61850-3 and IEEE1613 certification. Thanks to its -40 ~ 85˚C wide operating temperature it can operate well in extremely harsh environments. Designed with 20 Gigabit SFP ports and 6 Gigabit RJ-45 ports.It provides abundant and flexible connection ports. Finally, the EKI-9226G series contain dual power inputs to ensure system stability and 2 relay output for greater user flexibility.

  • -40 ~ 85˚C wide-range operating temperature
  • Dual Power input and 2 relay output
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • SFP socket for Easy and Flexible Fiber Expansion
  • 20 x Gigabit SFP ports + 6 x Gigabit x RJ-45 ports

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-9226G-20FOI-AE Промисловий керований стієчний комутатор Advantech EKI-9226 6GE+20G SFP Port Managed Switch , AC/DC  72 665,0

Additional information

Part Number EKI-9226G-20FOI-AE

Certification


Smart Grid IEEE 1613
Freefall IEC 60068-2-32
Safety UL 60950-1
Vibration IEC 60068-2-6
Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab

Environment


Temperature (Operating Range) -40 ~ 85°C (-40 ~ 185°F)
Relative Humidity 10 ~ 95%
Temperature (Storage Range) -40 ~ 85°C (-40 ~ 185°F)

Mechanism


Dimensions (W x H x D) 438 x 44 x 315.2 mm
Enclosure (Metal) Metal shell
IP Rating IP30
Mounting (X) Rackmount
Weight 555g

MTBF


Method Telcordia, GB
Time -

* Port Configuration


Fiber Port Description (X) 20 x SFP(mini-GBIC)ports
Fiber Port Interface (X) 6 x 10/100/1000Base-T(X)
Description 6 x 10/100/1000Base-T(X)

Ethernet Communication


Fiber Transmission Distance Depends on Fiber Module
RJ45 Transmission Distance 100 m

PoE Information


PoE Port Number -
Power
Power Operating Current 0.31A @ 110VAC (system)
Power Input (AC) 90~264VAC/88~370VDC
Power Consumption 35W (system)
Reverse Polarity (X) Present

Power Requirement (X)


Power Connector 2 x 3-pin removable screw terminal (power ) 1 x 4-pin removable screw terminal (relay )"

Switch Properties


Jumbo Frame 9,216 bytes
MAC Table Size 8K
Packet Buffer Size 4.1M bit
Switch Fabric Speed 52Gbps
Warranty
Warranty Period 5 years
