Capacity Touch HDMI High Brightness Input 24V DC IP65 MIL-STD-810 Military T range Screen Size 15" Wallmount

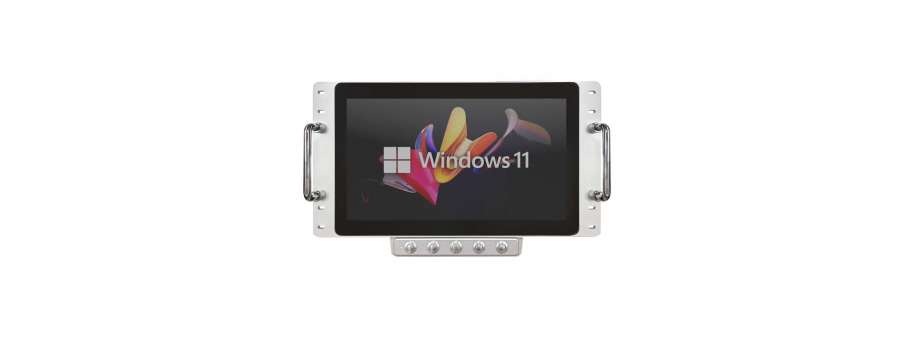

15.6" Monitor, 1500 nits, Mosmite Film, AG, VGA/DP/HDMI, 9~36VDC, MIL-STD-461G/1275E ELGENS TDM-P156WH5TAGF-RND2

  • 15.6'' 1920*1080 FHD LCD and P-cap Touch
  • IP65 and Rackmount Shape Front Bezel
  • 1500 nits LED backlight
  • Mosmite Film with AR feature
  • Anti-Glare
  • HDMI by Metal Circular Connector
  • USB fo Touch by Metal Circular Connector
  • DC Power Input by MS3114E8 Circular Connector

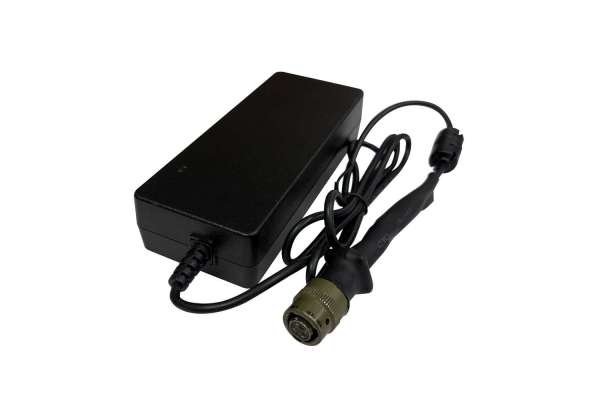

  • DC 24V Power Input with 90W power adapter
  • -40~70°C Operating Temperature

Additional information

I/O Connect

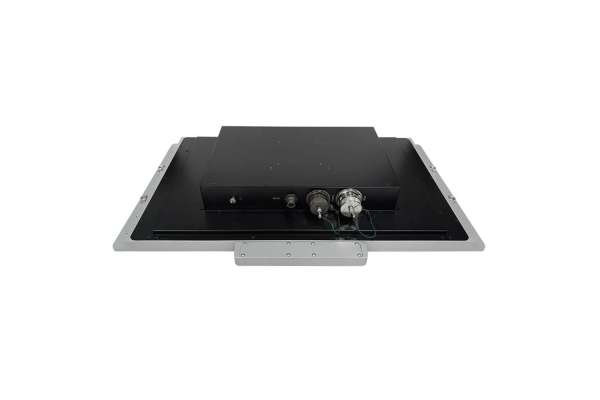

External I/O Port HDMI by Metal Circular Connector (with 1.5 meter external cable) USB(for Touch) by Metal Circular Connector (with 1.5 meter external cable) Power Input by MS3114E8 Connector

LCD

Max. Resolution 1920 x 1080
Contrast Ratio 800 : 1
Max. Color 16.2M
Luminance 1500 nits
View Angle 85/85/85/85

Power Requirement

Power Input 24VDC Power Input by MS3114E8 Connector

Touch Screen

Type P-cap USB

Environment

Operating Temp -40~70 °C,IEC-60068-2-1/2/14
Storage Temp -40~70 °C
Humidity 10~90% @40 °C, non-condensing
EMC
  • MIL-STD-1275E Compliance
  • MIL-STD-461G Compliance For CE101/102, RE101/102
  • FCC / CE Class A Certification
Vibration MIL-STD-810H, Method 514.8, Procedure I, 5~500Hz Certification
Shock MIL-STD-810H, Method 516.8, Procedure I, 20g 11ms Certification

Mechanical

Construction Aluminum Bezel and Metal case
IP Rating IP65 Front Side

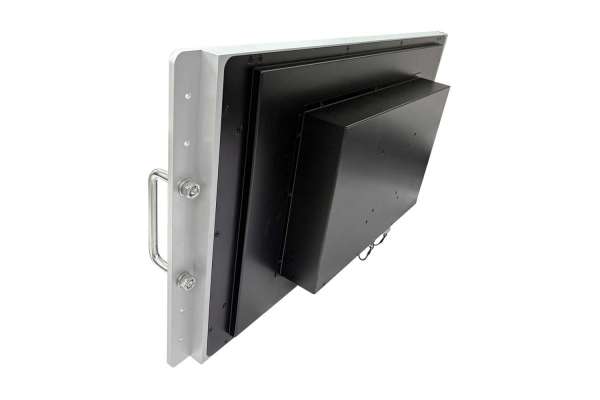

Mounting Wall Mount , VESA Mount
Dimension TBC
