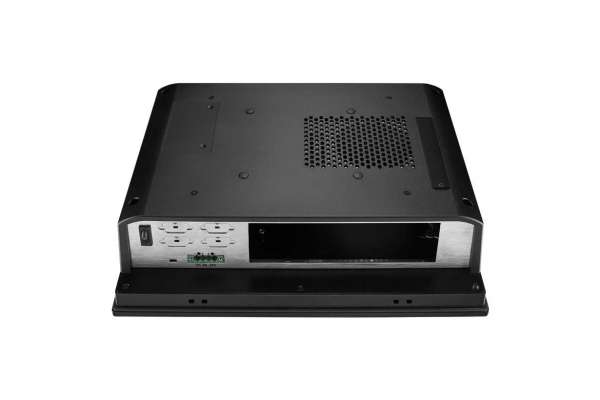

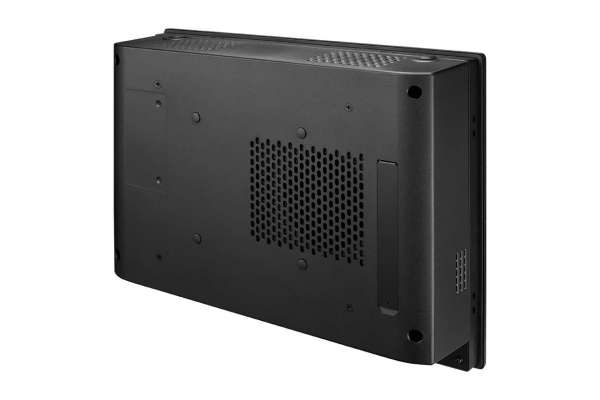

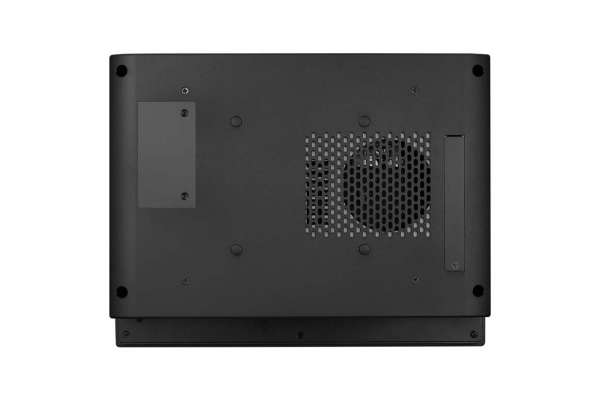

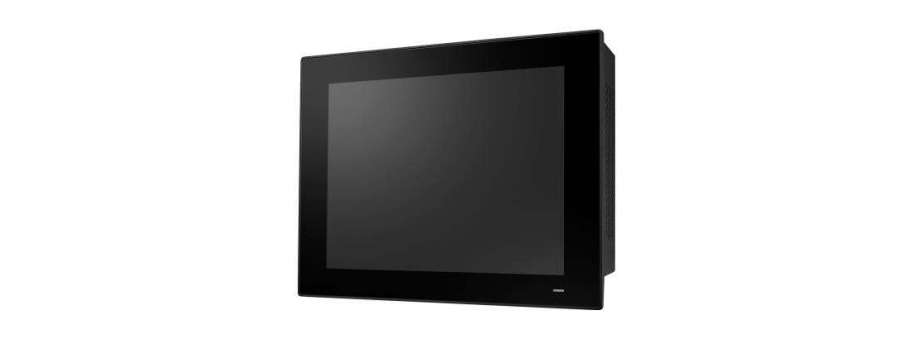

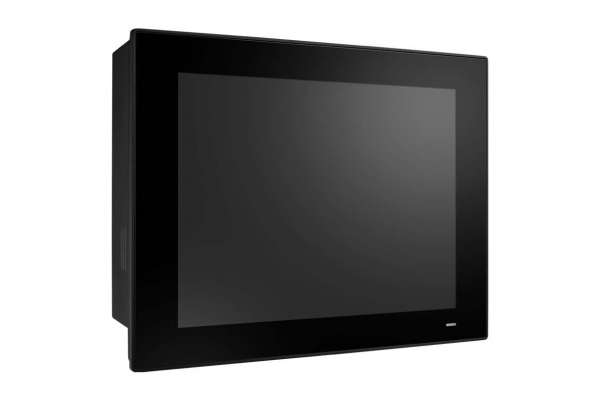

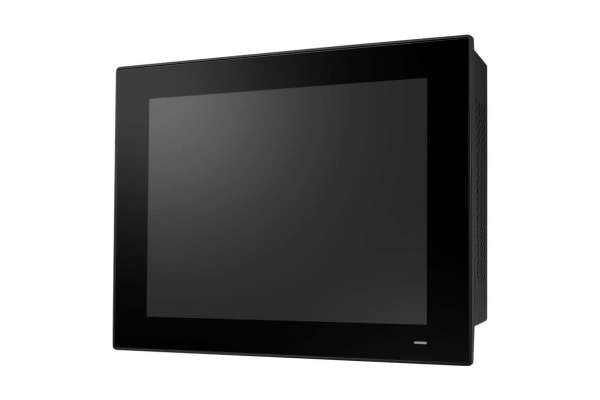

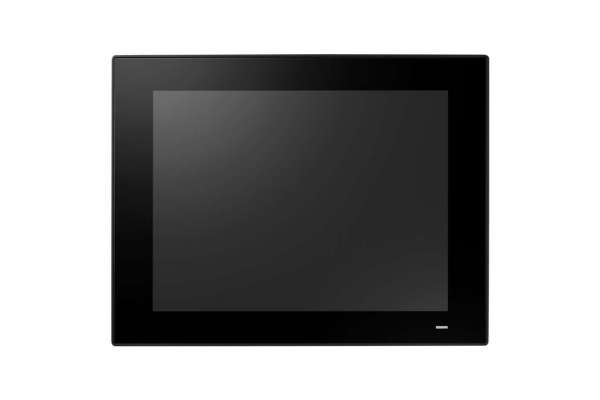

12.1" Configurable Panel PC Chassis for Selectable Mini-ITX Motherboards Advantech PPC-612

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-MB-8260B Материнська плата Advantech, Mini-ITX M/B support 6/7th Core i for PPC-61X1C-RTAE, 2xLan Realtek 8119i  17 990,6
PPC-MB-610B Материнська плата Advantech PPC-MB-610B, Mini-ITX M/B support 8/9th Core i for PPC-MB-610  24 234,3
PPC-MB-620A Материнська плата Advantech PPC-MB-620 12th Core i M/B,H610E,3 x LAN for PPC-600  24 486,5
PPC-MB-620B Материнська плата Advantech PPC-MB-620 12th Core i M/B,Q670E,2 x LAN for PPC-600  27 707,1
  • 12.1" true-flat panel PC with resistive touch (default) or projected capacitive touchscreen (by request)
  • Supports certified mini-ITX motherboards (up to 35W TDP processor)
  • PCI or PCIe expansion slots
  • Front-facing power status LED indicators
  • IP66-rated front panel

Additional information

Processor System

M/B PPC-MB-8260B PPC-MB-610B PPC-MB-620A PPC-MB-620B
CPU Intel® 6/7th Core™ i LGA1151 Intel® 8/9th Core™ i LGA1151 Intel® 12/13th Core™ i LGA1700 Intel® 12/13th Core™ i LGA1700
TDP 35W 35W 35W 35W
Chipset H110 Q370 H610E Q670E
Memory 1 x SODIMM DDR4, 2133 MHz (max.16G) 2 x SODIMM DDR4 , 2666 MHz (max.32 GB ) 2 x SODIMM DDR5 , 4800 MHz , (max,64 GB) 2 x SODIMM DDR5 , 4800 MHz , (max,64 GB)
Network (LAN) 2 x 1Gb Realtek 8119i
  • 1 x 1Gb Intel i219LM(support AMT12.0 only for i7 & i5)
  • 1 x 2.5Gb Intel i226-LM
  • LAN1: 1Gb Intel i219LM
  • LAN2: 2.5Gb Intel i226-LM
  • LAN3: 2.5Gb Intel i226-LM
  • LAN1: 1Gb Intel i219LM (support AMT 16.0 only for i7 & i5)
  • LAN2: 2.5Gb Intel i226-LM
I/O ports
  • 1 x RS232/422/485, 4 x RS232,
  • 1 x DP, 1 x VGA, 4 x USB3.0,
  • 1 x DIO (8bits),
  • 1 x Line-out, 1 x Mic-in
  • 1 x DC inlet
  • 1 x Power switch
  • 1 x RS232/422/485, 4 x RS232 ,
  • 1x DP, 1 x VGA, 6 x USB3.1,
  • 1 x DIO (8bits),
  • 1 x Line-out, 1 x Mic-in
  • 1 x DC inlet
  • 1 x Power switch
  • 1 x RS232/422/485, 4 x RS232, 1x DP, 1 x HDMI, 1 x DIO (8bits), 4 x USB 3.2, 2 x USB 2.0 ,
  • 1 x Line-out, 1 x Mic-in
  • 1 x DC inlet
  • 1 x Power switch
  • 1 x RS232/422/485, 4 x RS232,
  • 1x DP, 1 x HDMI, 6 x USB 3.2
  • 1 x Line-out, 1 x Mic-in,
  • 1 x DIO (8bits), 1 x DC inlet
  • 1 x Power switch
Expansion
1 x full-size mSATA or mini PCIe 1 x PCIe x4 slot for riser card
1 x PCI (optional)
1 x PCIe x4 (optional)
1 x M.2 M key 2280 (PCIe x 4 & SATA)
1 x M.2 E key 2230 (PCIe & USB2.0)
1 x PCI (optional)
1 x PCIe x4 (optional)
1 x PCIe x16 (optional)
1 x M.2 M key 2280 (PCIe x 4 & SATA)
1 x M.2 E key 2230 (PCIe & USB2.0)
1 x M.2 B key 3042/3052 (PCIe & USB2.0)
1 x PCI (optional)
1 x PCIe x4 (optional)
1 x PCIe x16 (optional, only for PPC-MB-6x0)
1 x PCI (optional)
1 x PCIe x4 (optional)
1 x PCIe x16 (optional, only for PPC-MB-6x0)
Storage 1 x 2.5" SATA HDD bay 1 x 2.5" SATA HDD bay 1 x 2.5" SATA HDD bay 1 x 2.5" SATA HDD bay
Speaker 2 x 1 W 2 x 1 W 2 x 1 W 2 x 1 W
Fan 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in) 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in) 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in) 2 x 12V; 50 x 50 x 20 mm (1.96 x 1.96 x 0.78 in)

OS Support

OS Support Windows 7, Windows 8.1, Windows 10 LTSC (**KBL CPU only support windows 10 64bit) Windows 10 LTSC, Windows 11, Linux Windows 10 LTSC, Windows 11, Linux Windows 10 LTSC, Windows 11, Linux

Physical Characteristics

Dimensions (W x H x D) 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in) 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in) 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in) 317 x 246 x 83.2 mm (12.48 x 9.68 x 3.27 in)
Weight 3.98kg (8.76lb) 3.98kg (8.76lb) 3.98kg (8.76lb) 3.98kg (8.76lb)

Power Comsumption

Input Voltage 24VDC ± 20% 24VDC ± 20% 24VDC ± 20% 24VDC ± 20%
Power Consumption 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD) 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD) 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD) 120W (Burn-in test 8.1, Windows 10 64bit, 16G RAM, 500G SSD)

LCD Display

Display Type 12.1" TFT LED panel 12.1" TFT LED panel 12.1" TFT LED panel 12.1" TFT LED panel
Max. Resolution 1024 x 768 1024 x 768 1024 x 768 1024 x 768
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down) 89 (left), 89 (right), 89 (up), 89 (down) 89 (left), 89 (right), 89 (up), 89 (down) 89 (left), 89 (right), 89 (up), 89 (down)
Luminance(cd/m2 ) 600 600 600 600
Contrast Ratio 1000 1000 1000 1000
Backlight Lifetime 50,000 hr 50,000 hr 50,000 hr 50,000 hr

Touchscreen

Touch Type 5-wire analog resistive 5-wire analog resistive 5-wire analog resistive 5-wire analog resistive
Light Transmission 80+/-5% 80+/-5% 80+/-5% 80+/-5%
Controller USB interface USB interface USB interface USB interface
Durability (Touches) 35 million touches 35 million touches 35 million touches 35 million touches

Environment

Operating Temperature 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) 0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU)
Storage Temperature -40 ~ 60 °C (-40 ~ 140 °F) -40 ~ 60 °C (-40 ~ 140 °F) -40 ~ 60 °C (-40 ~ 140 °F) -40 ~ 60 °C (-40 ~ 140 °F)
Relative Humidity 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing)
Shock Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant
Vibration Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant Operating: Random vibration test 5 ~ 500 Hz, 2 Grms @ with SSD, IEC 60068-2-64 compliant
EMC CE,FCC,Class A,UKCA,VCCI CE,FCC,Class A,UKCA,VCCI CE,FCC,Class A,UKCA,VCCI CE,FCC,Class A,UKCA,VCCI
Safety CB,CCC,UL,UKCA CB,CCC,UL,UKCA CB,CCC,UL,UKCA CB,CCC,UL,UKCA
Front Panel Protection IP66 compliant IP66 compliant IP66 compliant IP66 compliant
