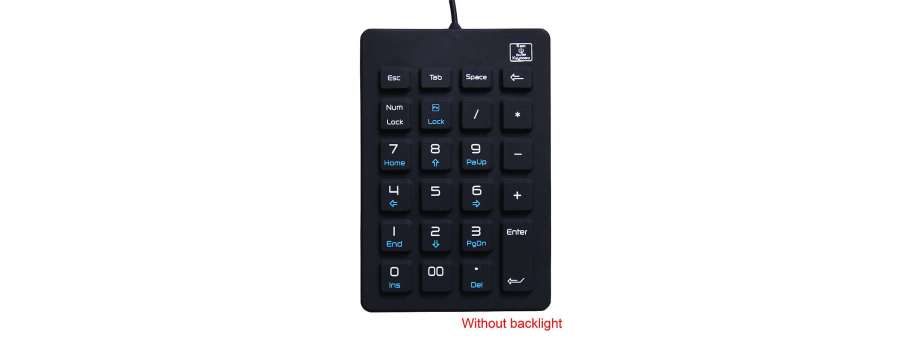

Industrial keypad X-Key X-KP25SD IP68

IP68 medical backlight keypad with asynchronous design, industrial keypad, washable keypad.

  • Keypad with asynchronous design

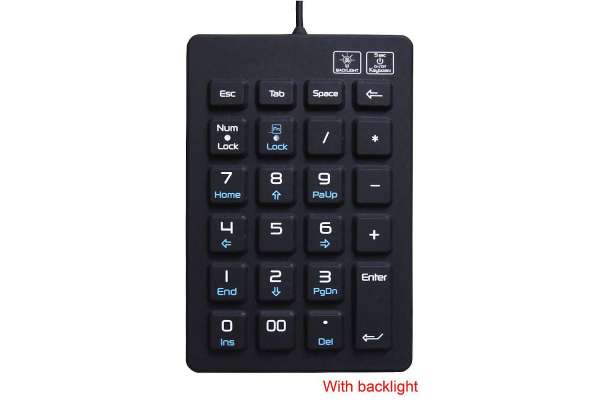

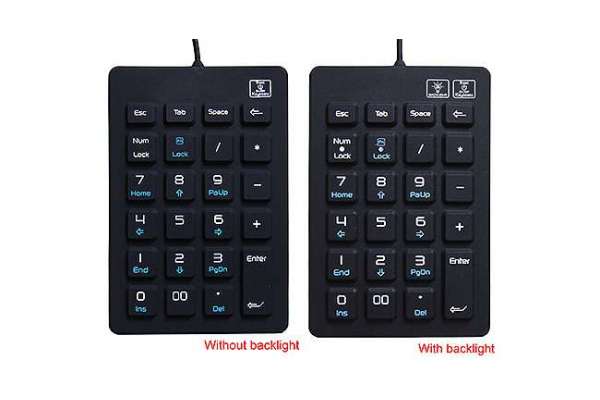

  • LED provides well-distributed backlight for each key.
  • With keypad main power ON/OFF switch, allowing user to clean at any interval with minimal downtime.
  • LED ON/OFF key.
  • Keypad provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
  • The keypad lacks the crevices found between the keys of a regular keypad, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
  • Special dura-coating for excellent mechanical and chemical resistance
  • With firm tactile key feel, key travel 1.5mm key travel.
  • Integrated numeric keypad.
  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  • PS/2, USB connection cables that plug directly into computer like keyboard operations.
  • Enclosure: industrial silicone with antimicrobial material.

Additional information

Key 25 keys
Key top style Protuberant rectangular keys with tactile feeling
Switch life more than 10 million of operations.
Cable Length 1.5m
G.W. 0.4 KGs
Dimensions 86 x 128 x 10 mm (L x W x T)

Electrical data

Supply Voltage +5V DC +/-5%
Current Rating:
  • PS2: keyboard with 210mA@5V (from keyboard port)
  • USB: 220mA@5V (from CPU port)
EMC Standard It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
Emission EN 50081-1
Immunity EN 50082-1
Lifespan > 3 years
Switch Contact Material Carbon-on-Gold key switch technology with gold PCB.
Interface PS2, USB available.
OS DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX

Environmental adaptability

Operating temperature -30oC to +65oC
Storage temperature -40oC to +65oC
Humidity 100%
Atmospheric pressure 60-106Kpa
Shock 3x11 ms pulses of 50g on each of 3 axes
Vibration power spectral density: 0.04g/hz, frequency range: 20hz - 2khz, duration of test per axis: 3 hours
Flammability
  • printed circuit board: 94 vo
  • silicone overlay: 94 hb
  • interface cable: 94 v

Reliability

  • RoHS Compliant, CE and FCC
  • Protection Level: IP68, NEMA 6P
  • Key Lifespan >10 million actuations
  • MTBF >50000H
  • MTTR <30min
