DVI-Vision - transmission of DVI signals via CAT or fibre optics

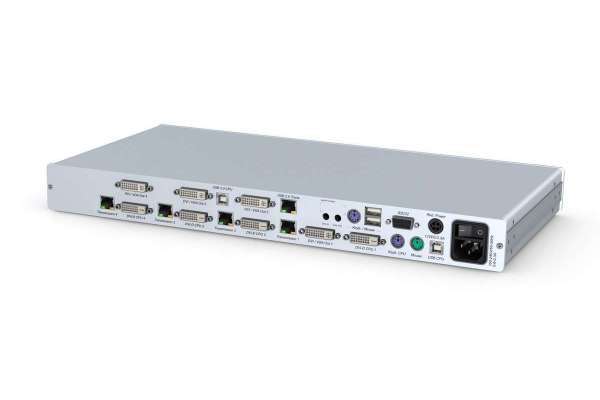

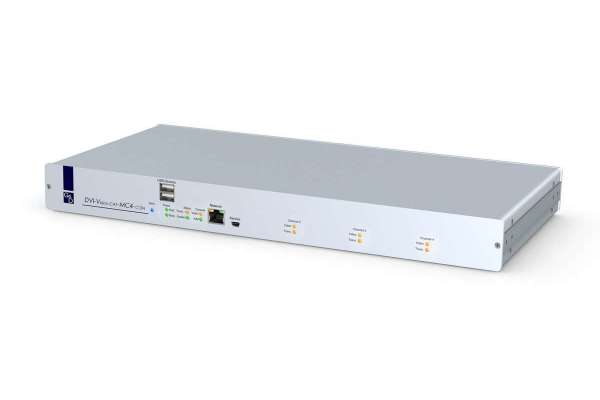

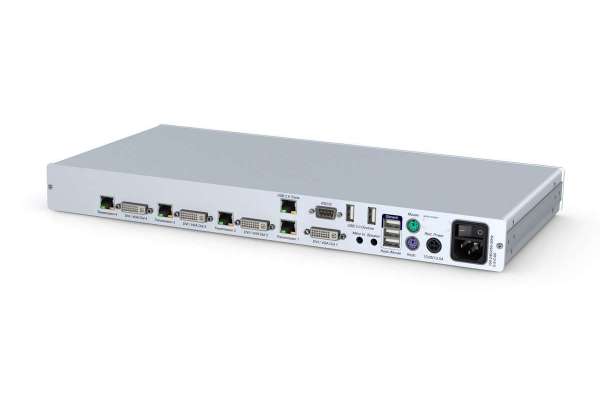

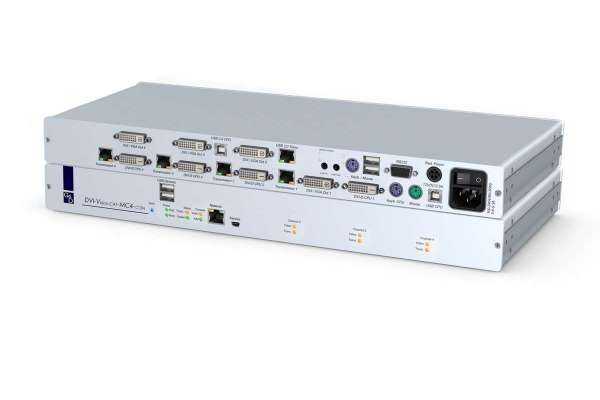

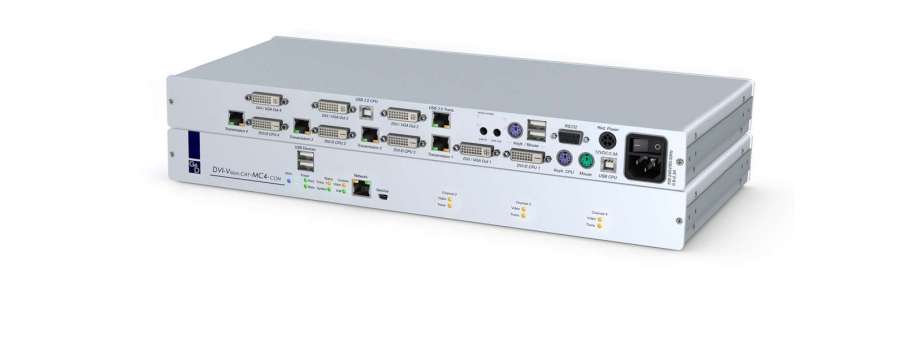

The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer on a local or remote console.

DVI-Vision uses CAT-x cables or fibre optics to transmit signals up to 10,000 m. The devices use DVI video and are available as variants displaying 1, 2, 3 or 4 video channels. It is also possible to transmit transparent USB 2.0, RS232 and audio signals.

With its network port, the web interface and monitoring functions, the DVI-Vision system offers important features for mission-critical applications.

Additional information

Video

  • Highly developed compression algorhythm of the latest generation for best video quality and latency-free transmission - The High-Dynamic-Image-Processing level 3
  • Single-Link DVI signals
  • Resolutions per channel up to 1920 × 1200 @ 60 Hz (more VESA and CEA standardized resolutions within the video bandwith and the horizontal / vertical frequency are possible, e.g. 1600 x 1200 @ 60 Hz)
  • Video bandwidth: 25 to 165 MPixel/s
  • Vertical frequency: 24 Hz to 120 Hz
  • 24 bit colour mode
  • Supports digital and analog monitors at the console
  • Transparent forwarding of E-DDC information
  • Single- and multi-channel variants

Operation

  • At both modules console with all video channels
  • via Web-Interface or OSD
  • Competing or exclusive operation via local or remote workplace

Signals

  • Transmission of bidirectional audio and RS232
  • PS/2 and USB keyboard/mouse support
  • Integrated USB 2.0 transmission with Full Speed (ARU variant)
  • Transparent transmission of USB 2.0 with Hi-Speed 480 MBit/s (ARU2 variant)
  • Generic USB-HID interface for connecting any HID device, e.g. touchscreens or tablets

Transmission

  • Distances up to 140 meters at maximum resolution over CAT-x cable (x = 5e, 6, 7; depending on cable)
  • Distances up to 400 metres at maximum resolution with multimode fiber optics
  • Distances up to 5,000 (S) or 10,000 m (S+) metres at maximum resolution with singlemode fiber optics

Device

  • Supports PS/2 and USB keyboard/mouse; allows mixed operation
  • Permanent keyboard/mouse emulation
  • Redundant, external power supply (optional)
  • Ident LED helps finding the device in complex installations
  • Shipped as desktop variant (Twin devices and sets for rack- or tablemounting are seperately available)

System update

  • Over the config panel
