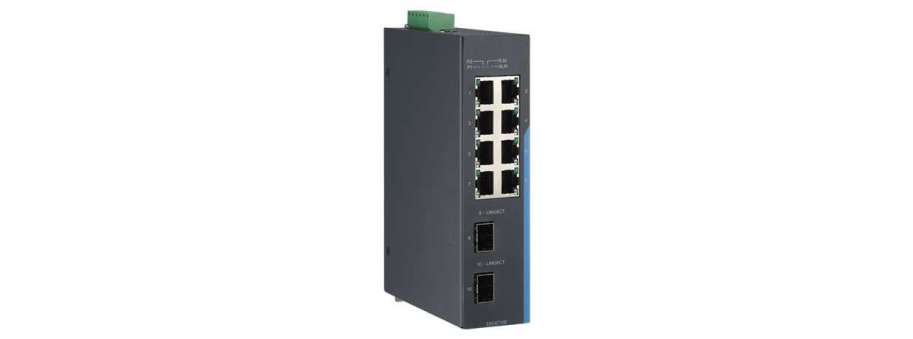

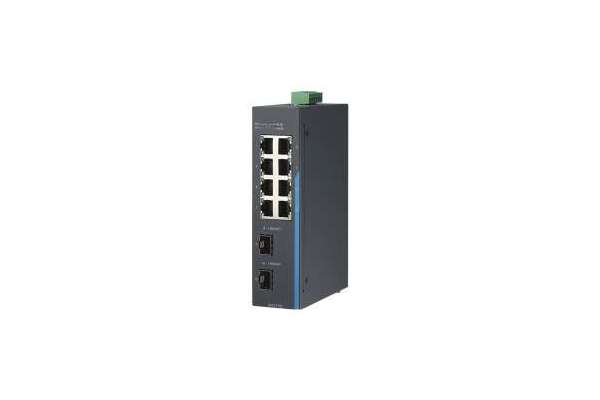

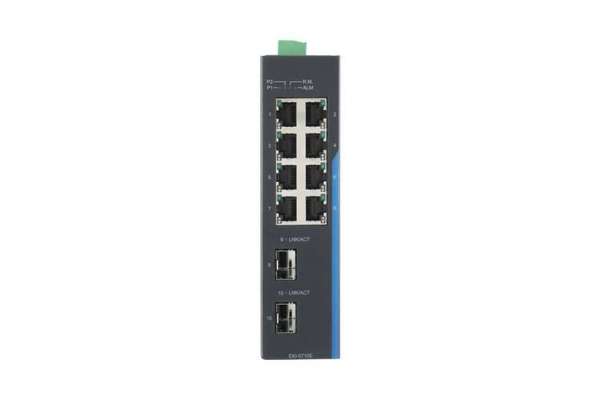

8FE + 2FE/GE SFP Port Managed Industrial Ethernet Switch Advantech EKI-5710E-2FI
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EKI-5710E-I-A | 10 портів Advantech Fast Ethernet, керований комутатор, розширений температурний діапазон | 32 798,3 | |
| EKI-5710E-2FI-A | Промисловий керований комутатор Advantech EKI-5710E, 8FE + 2FE/GE SFP Managed Ethernet Switch w/ WT | 32 798,3 |
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Compact size and easy installation
- Dual 12 ~ 48 V DC power input and 1 x relay output
The brand new EKI-5710E standalone managed series provide users with abundant port options for connecting to various device types, with up to 10 fast Ethernet ports and 2 SFP (mini-GBIC) ports. Slim type for easy installation and management, provides reliability and availability for your industrial network environment. These switches are embedded with Advantech’s IXM function, which can benefit users with fast deployment while offering considerable savings on engineering time and costs. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. EKI-5710E features a wide operating temperature range of -40 ~ 75°C can fit in harsh environment.
Additional information
Interfaces / Communications |
|
| I/O Port |
|
| Standards |
|
| Console port | RS-232 (RJ45) |
| Power Connector | 6-pin Terminal Block (including relay) |
Physical |
|
| Enclosure | Metal Shell |
| Protection Class | IP 30 |
| Installation | DIN-Rail, Wall-mount |
| Dimensions (W x H x D) | 40 x 152 x 105mm (1.57 x 5.98 x 4.13 inch) |
| Weight | 600 g |
LED Indicators |
|
| System LED | P1, P2, R.M, ALM |
| Port LED | RJ-45: Link / Speed / Activity SFP: LNK / ACT |
Environment |
|
| Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ambient Relative Humidity | 5 ~ 95% (non-condensing) |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| MTBF |
|
Power |
|
| Power Consumption | 6W @ 24VDC (System) |
| Power Input | 12 ~ 48 VDC, redundant dual power input |
| Fault Output | 1 Relay Output |
Certification |
|
| Safety | EN62368-1 |
| EMI | CE, CISPR 32, FCC Part 15B Class A |
| EMS |
|
| EMC |
|
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Security | IEC 62443-4-2 SL2 |
